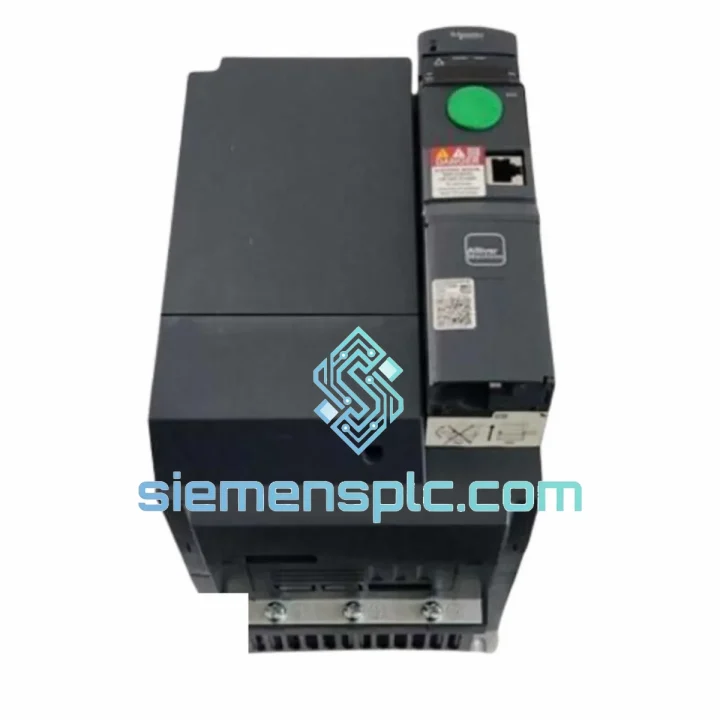

Schneider Electric ATV320U75N4C Variable Speed Drive – Altivar 320

ATV320U75N4C — 7.5 kW Altivar 320 Variable Speed Drive in a Three-Phase 380–500 V Architecture

The Schneider Electric ATV320U75N4C is a 7.5 kW (10 HP) compact variable speed drive from the Altivar 320 platform, engineered for three-phase 380–500 V AC supply networks. The suffix “C” designates an integrated Class C2 EMC filter conforming to EN 61800-3, eliminating the need for an external line filter in most panel installations. The unit incorporates a CANopen communication port alongside Modbus RTU over RJ45, enabling simultaneous integration into machine-level device networks and plant-level SCADA architectures without additional gateway hardware.

Within a closed-loop control topology, the ATV320U75N4C occupies the position between the upstream safety and power distribution layer and the downstream motor load. Its IGBT-based PWM inverter stage accepts a stabilized DC bus voltage of approximately 540–700 V DC — derived from the internal rectifier bridge — and synthesizes a variable-voltage, variable-frequency three-phase output across a 0.1–500 Hz range. The drive supports three distinct motor control algorithms: scalar V/f for simple pump and fan loads, sensorless flux vector (SVC) for applications requiring moderate torque accuracy without encoder feedback, and closed-loop flux vector (FVC) for high-dynamic servo-class positioning where an encoder card is fitted. This layered control architecture allows a single hardware platform to address a broad spectrum of machine requirements without drive substitution.

The integrated Safe Torque Off (STO) function — certified to SIL 2 / PLd per IEC 62061 and EN ISO 13849-1 — disables the IGBT gate drive signals via a dedicated dual-channel STO input (STO1/STO2) without interrupting the main power supply to the DC bus. This architecture reduces the response time of the safety channel to under 10 ms and eliminates the mechanical wear associated with main contactor cycling in safety-stop scenarios. In most machine architectures compliant with Machinery Directive 2006/42/EC, the STO function removes the requirement for a dedicated safety relay in the motor branch, reducing BOM cost and panel wiring complexity.

The ATV320U75N4C is stocked and dispatched from Xiamen, China by siemensplc.com. Each unit undergoes incoming inspection covering label verification, date-code traceability, and functional power-on testing prior to shipment. A 12-month warranty against manufacturing defects is provided on all units, with DOA replacement processed within 7 business days of confirmed fault report.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The power stage of the ATV320U75N4C follows a conventional voltage-source inverter (VSI) topology: a three-phase diode rectifier bridge charges a film-capacitor DC bus, which feeds a six-switch IGBT inverter module. The DC bus capacitance is sized to sustain a hold-up time sufficient to ride through brief supply dips of up to 200 ms at full load — a critical parameter in industrial environments where momentary voltage sags are common on shared distribution transformers.

The integrated Class C2 EMC filter consists of a common-mode choke and X/Y capacitor network positioned between the supply terminals and the rectifier bridge. This topology attenuates conducted emissions in the frequency band 150 kHz–30 MHz to levels compliant with EN 61800-3 Category C2, which permits installation in industrial environments without additional external filtering. The filter is thermally rated to match the drive’s full-load current, eliminating the derating calculations required when external filters are added to non-filtered variants.

The STO safety channel uses a dual-path architecture: STO1 and STO2 are independently monitored by the drive’s safety microcontroller. A discrepancy between the two channels — indicating a wiring fault or component failure — is detected within the diagnostic test interval and logged as a safety fault. This cross-monitoring mechanism satisfies the diagnostic coverage requirements for PLd without relying on external test pulses from the safety controller, simplifying the safety validation process for machine builders.

The CANopen implementation conforms to CiA DS-402 (drives and motion control device profile), allowing the ATV320U75N4C to be addressed as a standard DS-402 node by any conformant CANopen master — including Schneider Modicon M241/M251 PLCs and third-party masters from Beckhoff, B&R, and others. The Modbus RTU port operates independently on the RJ45 connector, supporting simultaneous multi-master access scenarios where a local HMI polls drive status while a remote SCADA system issues setpoint commands via CANopen.

The embedded application functions — including PID regulator, preset speed table (up to 16 speeds), and configurable ramp profiles — execute on the drive’s internal processor without consuming PLC scan time. In pump and fan applications, this offloads the pressure/flow control loop entirely from the upstream PLC, reducing network traffic and improving loop response time to the drive’s internal task cycle of approximately 2 ms.

System Integration Benefits

• Deterministic CANopen Cycle: The ATV320U75N4C supports synchronous PDO transmission aligned to the CANopen SYNC object, enabling cycle-accurate speed setpoint updates at network cycle times down to 1 ms — essential for multi-axis coordination on packaging and printing lines.
• Dual-Port Communication Without Gateway: Simultaneous CANopen and Modbus RTU operation eliminates the need for a protocol converter, reducing hardware cost and a potential single point of failure in the communication architecture.
• Integrated STO Reduces Safety BOM: SIL 2 / PLd STO certification removes the mandatory safety relay from the motor branch in most Machinery Directive-compliant designs, saving panel space and reducing wiring termination count by up to 8 conductors per drive.
• Embedded PID Offloads PLC Resources: The onboard PID controller with configurable feedback source (analog input or fieldbus setpoint) handles closed-loop process control locally, freeing PLC scan cycles for higher-level sequencing logic.
• Configurable Switching Frequency for EMC/Acoustic Trade-off: Adjustable PWM frequency from 2 to 16 kHz allows the commissioning engineer to balance motor acoustic noise against conducted emission levels without hardware changes.
• Transparent Fault Diagnostics via Fieldbus: The drive exposes a 32-bit fault word and a 10-event fault history log over both CANopen and Modbus RTU, enabling SCADA systems to capture and timestamp fault events without requiring a local HMI panel.
• Wide Supply Voltage Tolerance: ±10% voltage tolerance on the 380–500 V supply range accommodates grid fluctuations common in industrial zones without triggering undervoltage or overvoltage trips, reducing nuisance downtime.
• Shared DC Bus Compatibility: The ATV320U75N4C supports shared DC bus topology using Schneider’s DC bus connection kit, allowing regenerative energy from decelerating axes to be consumed by accelerating axes on the same bus — reducing net energy draw and braking resistor thermal load in multi-drive panels.
• SoMove Parameterization and Backup: Full parameter sets can be uploaded, stored, and downloaded via Schneider SoMove software (free, PC-based), enabling rapid drive replacement without manual parameter re-entry — a significant advantage in high-availability production environments.
• DIN-Rail and Panel-Mount Flexibility: The compact 105 mm width allows side-by-side mounting in standard 400 mm wide enclosures, with derating tables published for reduced-clearance installations.

Quality Assurance & Global Logistics

Every ATV320U75N4C unit supplied by siemensplc.com is sourced as a genuine Schneider Electric product. Incoming inspection at our Xiamen facility covers three verification stages: physical label authentication (part number, serial number, date code, and country-of-origin marking cross-referenced against Schneider’s product identification database), visual inspection of PCB assemblies and power terminals for handling damage, and a functional power-on test confirming drive initialization, fault-free self-test completion, and communication port response.

Units are stored in a temperature- and humidity-controlled warehouse (20–25°C, 40–60% RH) to preserve electrolytic capacitor formation and prevent moisture ingress into the EMC filter capacitor network. Original Schneider Electric anti-static packaging is retained where available; units requiring repackaging are placed in ESD-safe polyethylene bags with silica gel desiccant and foam-lined cartons rated for air freight vibration profiles per ISTA 2A.

Shipment from Xiamen, China is available via DHL Express (3–5 business days to most destinations), FedEx International Priority, or sea freight for bulk orders. Export documentation — including commercial invoice, packing list, CE Declaration of Conformity, and HS code 8504.40 classification — is prepared for each shipment to facilitate customs clearance in EU, US, Southeast Asian, and Middle Eastern markets. A tracking number is issued within 24 hours of dispatch. For time-critical requirements, same-day dispatch is available for orders confirmed before 14:00 CST.
