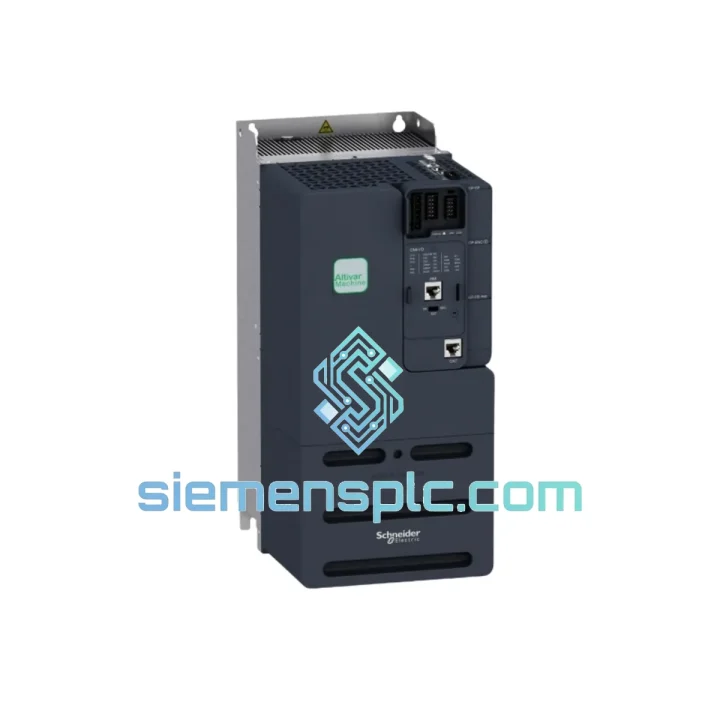

Schneider Electric ATV340D15N4 Variable Frequency Drive – Altivar 340

Schneider Electric ATV340D15N4 — 15 kW Altivar 340 Variable Frequency Drive for Three-Phase Industrial Motor Control

The ATV340D15N4 occupies a well-defined position in the Altivar 340 control loop: it acts as the primary power-conversion and motion-regulation node between the upstream PLC command layer and the downstream induction or permanent-magnet motor. Rated at 15 kW (20 HP) for three-phase 380–480 V AC supply networks, the drive converts fixed-frequency mains power into a fully adjustable voltage-frequency output, enabling continuous speed regulation from near-zero to 500 Hz output frequency. Within a closed-loop PID architecture — common in pump, fan, and compressor applications — the ATV340D15N4 receives a 4–20 mA process feedback signal on AI2, computes the error against the setpoint on AI1, and adjusts the IGBT switching pattern in real time to maintain the target process variable. This deterministic response, with a speed-loop update cycle of 1 ms, eliminates the hunting and overshoot characteristic of contactor-based multi-speed starters. The drive’s embedded Modbus RTU port (RJ45, 9600–115200 baud) allows the supervising PLC to read back actual output frequency, motor current, DC bus voltage, and fault codes without additional instrumentation, giving the control engineer full diagnostic transparency at the fieldbus level.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The ATV340D15N4 is built on a three-stage power conversion topology: a six-pulse diode rectifier converts the three-phase AC supply to an unregulated DC bus (nominally 540–680 V DC depending on supply voltage), a bulk electrolytic capacitor bank filters the 300 Hz ripple to below 5% peak-to-peak, and a three-phase IGBT inverter bridge synthesizes the output waveform via sinusoidal PWM at a carrier frequency selectable between 2 and 16 kHz. The IGBT gate drivers incorporate desaturation detection: if a transistor enters linear conduction due to overcurrent, the gate is pulled low within 2 µs, protecting the device before the DC bus energy can cause thermal runaway.

EMC Architecture: The integrated Class C2 filter consists of a common-mode choke (wound on a nanocrystalline core for high permeability at 150 kHz–30 MHz) and X/Y capacitors referenced to the PE rail. This topology attenuates conducted emissions on the supply lines to below the EN 55011 Class A limit without requiring an external line reactor in most installations. The motor cable shield must be bonded to the drive chassis at both ends via 360° clamp connections — a requirement the ATV340 terminal block accommodates with a dedicated PE bar rated for cable shields up to 16 mm².

Thermal Management: A forced-air cooling channel separates the power module compartment from the control board cavity. The heatsink-mounted NTC thermistor feeds the thermal model algorithm, which pre-emptively reduces switching frequency from 16 kHz to 4 kHz when junction temperature approaches 85°C, trading acoustic noise for continued operation rather than tripping on an OHF fault. This derating logic is transparent to the operator and logged in the drive’s 10-event fault history buffer.

STO Safety Circuit: The Safe Torque Off function is implemented as a dual-channel hardware interlock: STO1 and STO2 inputs (24 V DC, 6 mA) each independently disable the IGBT gate supply via optocoupler-isolated relay contacts. Both channels must be de-energized simultaneously to achieve the SIL 2 / PLd safety state. A single-channel failure is detected within the 20 ms diagnostic test interval, and the drive raises an STF fault without removing torque — allowing the safety PLC to distinguish a wiring fault from an intentional stop command.

System Integration Benefits

• Deterministic Speed Response: The 1 ms speed-loop execution cycle ensures that speed corrections are applied within one control scan, maintaining process stability in high-dynamic applications such as winding tension control and extruder speed synchronization.
• Zero-Speed Torque Hold: In closed-loop FVC mode with encoder feedback, the drive maintains 100% rated torque at 0 Hz output, enabling vertical load holding without a mechanical brake in short-duration positioning cycles.
• Transparent Fault Diagnostics: The 10-event fault log stores fault code, output frequency, motor current, DC bus voltage, and heatsink temperature at the moment of trip — reducing mean time to repair (MTTR) by eliminating the need for external data loggers during commissioning.
• Fieldbus Parameter Access: All 400+ drive parameters are accessible via Modbus register map (documented in ATVxxx Modbus Communication Manual), enabling the PLC to perform online parameter changes — such as adjusting acceleration ramp or PID gain — without stopping the process.
• Energy Metering: The drive accumulates kWh consumption in a non-volatile register (Modbus address 3202h), providing the SCADA system with real-time energy data for ISO 50001 reporting without additional power meters.
• Motor Thermal Model: An I²t motor thermal model (configurable for motor thermal time constant 1–3000 s) protects the motor from overload without a separate thermistor relay, reducing panel wiring complexity.
• Catch-on-the-Fly: The speed-search function synchronizes the drive output to a spinning motor (e.g., after a momentary power interruption) within 0.5 s, avoiding the mechanical shock of a full-speed restart against a rotating load.
• EcoStruxure IIoT Readiness: When paired with the optional EtherNet/IP or PROFINET card, the ATV340D15N4 exposes a standardized device profile (CIP AC Drive Profile / PROFIdrive) that integrates directly into Schneider Electric’s EcoStruxure Plant and Machine architectures, enabling predictive maintenance dashboards without custom middleware.

Quality Assurance & Global Logistics

Every ATV340D15N4 unit supplied through siemensplc.com is sourced from verified Schneider Electric distribution channels with full supply-chain traceability. Prior to dispatch, each unit undergoes a structured pre-shipment inspection protocol: visual examination of holographic CE/UL labels and Schneider Electric serial number format, power-on functional test confirming display initialization and parameter read/write access, and I/O continuity check on all digital and analog terminals. Units are shipped in original OEM packaging with anti-static foam insert, accessory kit, and documentation.

Logistics operations are based in Xiamen, China — a major international port city with direct access to DHL, FedEx, UPS, and SF Express international networks. Standard express delivery to Europe, North America, Southeast Asia, and the Middle East is 3–7 business days. Sea freight consolidation is available for bulk orders. All shipments include a commercial invoice, packing list, and certificate of origin for customs clearance. Export HS Code reference: 8504.40. The 12-month warranty covers manufacturing defects; DOA units are replaced within 7 business days of confirmed fault report.
