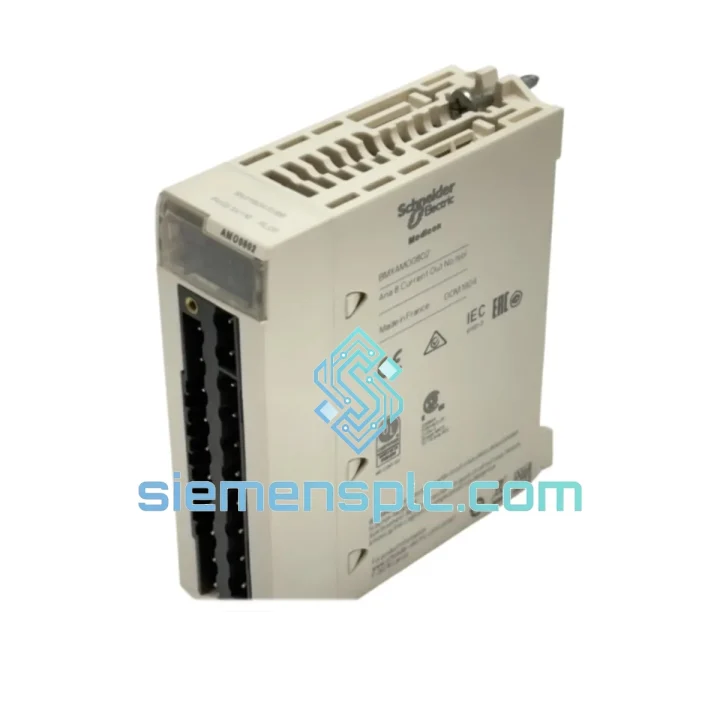

Schneider Electric BMXAMO0802 Analog Output Module

BMXAMO0802 — Stop the Bleeding: Every Hour of Downtime Costs You More Than This Module

Your M340 rack just threw a fault. The BMXAMO0802 analog output module is dead. The line is stopped. You’ve already called the OEM distributor — lead time is 6 to 8 weeks. That’s not an option. We ship from Xiamen within 24 hours. DHL Express puts it on your bench in 2 to 4 business days, anywhere in the world. The math is simple: the cost of this module is a rounding error compared to what you’re losing per shift.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The BMXAMO0802 fails in predictable ways. Here’s what you’ll see and what to do about it — straight from the field.

Fault Code ERR on the module LED: This is almost always a configuration mismatch after a hot swap. The replacement module inherits no memory. You must re-download the application from EcoStruxure Control Expert. Go to PLC → Transfer Project to PLC → confirm the I/O configuration is rebuilt. Do not assume the rack auto-configures — it doesn’t.

Channel output stuck at 0 V / 0 mA after replacement: Check the channel mode in your Unity Pro I/O configuration. Each of the 8 channels must be individually set to voltage or current mode. A factory-fresh module defaults to voltage mode on all channels. If your process uses 4–20 mA loops, every channel needs to be reconfigured before the output will drive correctly.

Intermittent output drift on one or two channels: Before condemning the module, check the field wiring. The BMXAMO0802 uses a shared common return for current outputs. A broken common wire causes exactly this symptom — one or two channels appear to drift while others are stable. Measure continuity on the common terminal before pulling the module.

Module not recognized by CPU after installation: Verify the rack slot assignment in your Control Expert project matches the physical slot. The M340 platform does not auto-detect new modules in slots that were previously empty or assigned to a different module type. Update the hardware configuration, compile, and re-download.

Replacement steps (field procedure):

1. Place the CPU in STOP mode. Confirm all analog outputs are at safe state (drives at minimum speed, valves closed, etc.).
2. Power down the rack if your safety procedure requires it — the M340 supports hot swap on I/O modules, but confirm with your site safety plan.
3. Remove the failed BMXAMO0802. Note the slot number.
4. Seat the replacement module firmly until the locking tab clicks. Verify the module LED sequence: RUN (green) should illuminate within 5 seconds of power-up.
5. In Control Expert, go to PLC → Connect → Transfer Project to PLC. This re-pushes the I/O configuration to the new module.
6. Switch CPU to RUN. Monitor each channel output against your process setpoints for the first 10 minutes.
7. Document the replacement in your maintenance log with the new module serial number.

Firmware note: The BMXAMO0802 does not carry user-upgradeable firmware. The module firmware is embedded at the factory. No firmware flashing is required on replacement — plug-in and configure via software only.

Reliability in Harsh Conditions

The Modicon M340 platform was engineered for environments that destroy consumer-grade electronics. The BMXAMO0802 is built to the same standard. Schneider Electric validates this module against IEC 61131-2 mechanical and environmental requirements — this is not a marketing claim, it’s a type-test certification.

Vibration resistance is validated to IEC 60068-2-6: sinusoidal vibration at 10–150 Hz, 1 g acceleration. In practice, this means the module survives continuous operation on compressor skids, pump stations, and mobile equipment where the rack sees constant mechanical excitation. The PCB mounting and connector retention are designed to maintain electrical continuity under these conditions — not just survive a lab shake table for 30 minutes.

Thermal cycling is the silent killer of analog modules. The 16-bit DAC inside the BMXAMO0802 is temperature-compensated. Output accuracy is maintained across the full 0–60 °C operating range without manual recalibration. In steel mills, foundries, and outdoor substations where ambient temperatures swing 40 °C between day and night shifts, this matters. A module that drifts with temperature forces your operators to constantly trim setpoints — this one doesn’t.

Humidity and condensation are addressed through conformal coating on the PCB. In coastal installations, food processing plants, and paper mills where humidity regularly exceeds 80% RH, uncoated boards corrode within months. The BMXAMO0802’s coating provides a physical barrier against moisture ingress without compromising thermal dissipation.

EMC performance is certified to IEC 61000-4 series: ESD immunity (Level 3), radiated immunity (Level 3), and conducted immunity. In environments with large VFDs, welding equipment, or high-current switchgear nearby, the module’s channel-to-bus isolation prevents ground loops and common-mode noise from corrupting your analog output signals. This isolation is not a software feature — it’s a hardware barrier built into every unit.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-connected export hubs in Asia. When you place an order before 18:00 CST, your BMXAMO0802 is packed, documented, and handed to the carrier the same day. No warehouse delays, no consolidation queues.

DHL Express: Our primary carrier for urgent shipments. Transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 3–5 days, Middle East 2–3 days, Australia 3–4 days. DHL’s industrial spare parts handling protocol means your module travels as a priority shipment, not in a general cargo pallet.

FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage. Comparable transit times to DHL. We select the carrier based on your delivery address to maximize speed.

Export documentation: Every shipment includes a commercial invoice with correct HS code (8537.10), packing list, and certificate of origin. For customers in the EU, we provide EUR.1 movement certificates where applicable. For customers in countries with import duty exemptions on industrial automation components, we flag this proactively so your customs broker can apply the correct tariff treatment.

Tracking: You receive a tracking number within 2 hours of dispatch. We monitor all express shipments and proactively contact you if a customs hold or delivery exception occurs — you don’t have to chase us.

For plant shutdowns and turnaround projects where you need multiple modules across different part numbers: contact us directly. We coordinate multi-line shipments as a single consolidated express package to reduce your customs clearance complexity and total freight cost.
