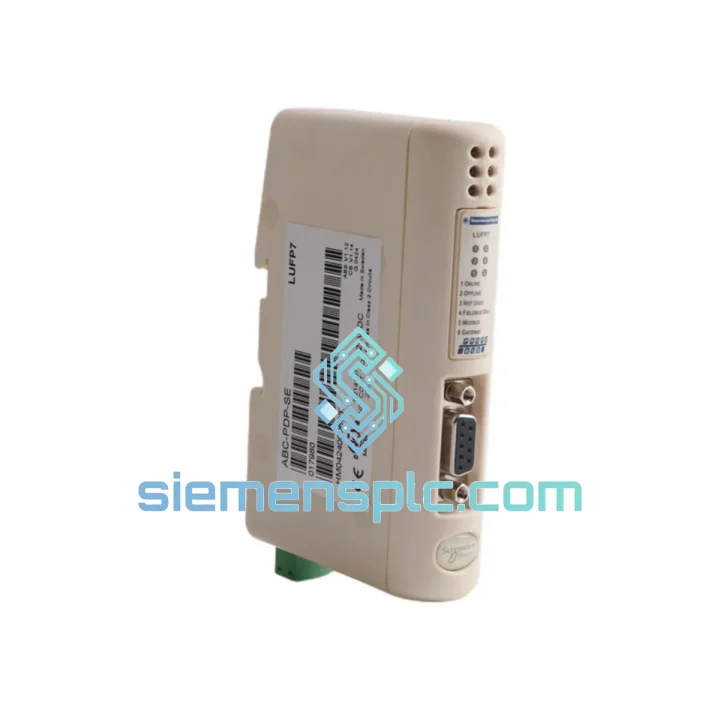

Schneider Electric LUFP7 ABC-PDP-SE Fieldbus Module

LUFP7 ABC-PDP-SE In Stock — Every Hour of Downtime Has a Price Tag

Your Altivar drive has gone silent on the Profibus segment. The S7 master is throwing Station Failure diagnostics. Production is stopped. You’ve already ruled out the cable, the termination resistors, and the master configuration — the LUFP7 ABC-PDP-SE option card is the fault. You need a verified replacement unit on-site before the next shift, not in three weeks from a distributor’s back-order queue.

We stock the Schneider Electric LUFP7 ABC-PDP-SE in Xiamen and ship globally via DHL Express and FedEx International Priority. Order confirmed before 18:00 CST ships same business day. That is the only metric that matters when your line is down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Confirming the LUFP7 is the failed component — not the bus

Before pulling the card, isolate the fault. Disconnect the Profibus cable from the LUFP7 DB9 connector and check whether the master’s diagnostic buffer shows a clean Station Not Reachable (rather than a data-integrity error). If the error clears when the slave address is removed from the master configuration, the card is almost certainly the culprit. A bus analyzer (e.g., Softing PB-T3 or ProfiTrace) will confirm within 60 seconds whether the node is transmitting a valid DP response frame.

Step-by-step hot-swap procedure

1. De-energize the Altivar drive fully — wait for the DC bus capacitors to discharge (minimum 5 minutes after mains isolation; confirm with a multimeter on the DC bus terminals).
2. Disconnect the Profibus cable from the LUFP7 DB9 connector. Label the cable with the slave address before removal — this prevents address conflicts during re-commissioning.
3. Release the option card retaining clip and slide the LUFP7 out of the drive’s option slot. Do not force it; the connector is keyed but fragile if misaligned.
4. Inspect the option slot connector on the drive for bent pins or corrosion. A failed LUFP7 caused by a ground surge can damage the slot connector — verify continuity on the 24 V and GND pins before inserting the replacement.
5. Slide the new LUFP7 ABC-PDP-SE into the slot until the retaining clip engages. The card should seat without resistance.
6. Reconnect the Profibus cable. Verify termination: the last physical node on the segment must have the termination resistor network active (switch on the Profibus connector). A missing termination at 12 Mbps will cause intermittent communication errors that mimic a faulty card.
7. Power up the drive. The LUFP7 LEDs should cycle through self-test (all LEDs on briefly) then settle to: PWR solid green, BF (Bus Fault) flashing red until the master establishes communication, then BF off once the DP data exchange is active.

Slave address configuration

The LUFP7 ABC-PDP-SE sets its Profibus slave address via the drive’s HMI or parameter menu — there are no physical DIP switches on the card itself. Navigate to the drive’s communication parameter group and set the Profibus node address (parameter Add in the COM menu on ATV61/ATV71). The address must match exactly what is configured in the master’s hardware configuration (STEP 7 HW Config or TIA Portal Device & Networks). A mismatch is the single most common cause of BF LED stays red after power-up.

GSD file and master configuration

If you are replacing a card in an existing installation, the GSD file is already loaded in the master project — do not re-import it unless the firmware revision of the replacement card differs from the original. Re-importing an incompatible GSD version will change the I/O byte mapping and corrupt the PLC’s process image. Request the correct GSD version from us when you place your order.

Common fault codes after replacement

• Drive display: CnF (Configuration Error) — The Profibus master sent a parameterization telegram that does not match the GSD configuration. Check that the I/O data length in the master project matches the module’s configured process data size.
• Drive display: nSt (Not Started) — The drive is waiting for a valid RUN command from the Profibus master. Verify the control word source is set to Profibus (not local keypad) in the drive’s command channel parameter.
• BF LED flashing at 1 Hz — Bus fault; the module is not receiving valid DP telegrams. Check cable continuity, termination, and master scan cycle time.
• BF LED flashing at 4 Hz — Parameterization error from the master. The GSD-defined configuration does not match what the master is sending. Re-download the master configuration after verifying the GSD file version.

Reliability in Harsh Conditions

The LUFP7 ABC-PDP-SE is not a panel-room component — it lives inside a variable-speed drive enclosure on a factory floor. Schneider Electric designed it to survive the environment that kills lesser electronics.

Vibration: Qualified to IEC 60068-2-6, the module withstands sinusoidal vibration across the 10–150 Hz spectrum at accelerations up to 1 g. In practice, this covers the resonance frequencies generated by conveyor frames, compressor bases, and pump skids — the exact locations where Altivar drives are most commonly installed.

Thermal cycling: Industrial drives experience significant thermal cycling as ambient temperature swings between cold start-up and full-load operation. The LUFP7’s PCB uses conformal coating on critical traces to prevent condensation-induced leakage currents during cold-start conditions in unheated enclosures. Operating range is 0 °C to +60 °C; storage down to −25 °C.

Electromagnetic immunity: The galvanic isolation barrier on the Profibus port is not just a data-integrity feature — it is a surge protection mechanism. In plants with long Profibus cable runs (100 m+), ground potential differences between cable ends can inject common-mode voltages that destroy non-isolated RS-485 transceivers. The LUFP7’s isolated port absorbs these transients without damage to the drive’s control board.

Humidity: Rated to 95% relative humidity non-condensing. The conformal coating provides additional protection in coastal or high-humidity industrial environments where bare PCBs would corrode within months.

Every unit we ship has passed incoming inspection: visual check of PCB and connector, power-on LED self-test verification, and Profibus DP communication confirmation on a live test segment with a Siemens S7 master. We do not forward-ship untested stock.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport (XMN) and daily DHL and FedEx pickup schedules.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–3 business days via DHL Express
• Europe (Germany, Netherlands, Poland, UK): 3–5 business days via FedEx International Priority
• North America (USA, Canada, Mexico): 3–5 business days via DHL Express Worldwide
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days via FedEx International Priority

Order-to-dispatch process:

1. Order confirmed and payment cleared → warehouse picks and inspects the unit (same day if before 18:00 CST).
2. Export documentation prepared: commercial invoice, packing list, and HS code declaration (HS 8537.10 for PLC/control modules).
3. Shipment booked with DHL or FedEx; tracking number issued to buyer within 2 hours of pickup.
4. Real-time tracking available via carrier portal; we proactively notify you of any customs holds.

For destinations with import duty sensitivities or specific customs documentation requirements (e.g., CE declaration, country-of-origin certificate), contact us before ordering — we prepare the paperwork in advance to prevent clearance delays.
