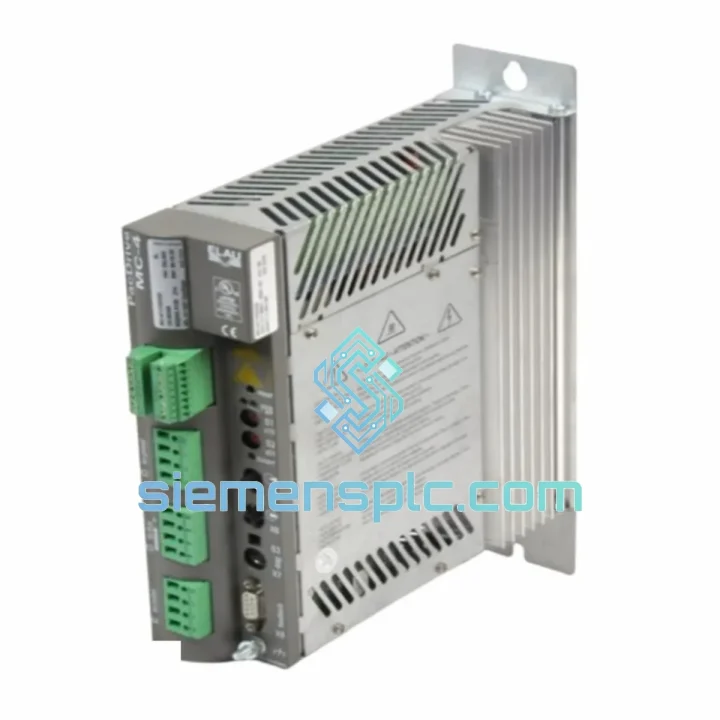

Schneider Electric MC-4/11/03/400 Motion Controller

MC-4/11/03/400 Down? Every Minute Costs Money — We Ship Same Day from Xiamen

Line stopped. Maintenance team staring at a dead motion controller. The production manager is already calling. You know the drill — and you know that sourcing the right replacement fast is the only thing that matters right now. The Schneider Electric MC-4/11/03/400 PowerDrive Motion Controller is on our shelf in Xiamen. Not on order. Not inbound next week. In stock. Ready to ship today.

We’ve handled enough emergency callouts to know that a wrong part or a slow supplier turns a 4-hour fix into a 3-day nightmare. That’s why siemensplc.com maintains verified stock of high-demand Schneider motion control modules — so your downtime ends with a tracking number, not a waiting game.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The MC-4/11/03/400 fails in predictable ways. Here’s what 10 years of field work tells you to check before you even open the cabinet:

Common Fault Codes & Root Causes

• F001 / F002 — Axis Communication Loss: Almost always a CANopen node address conflict after a swap. The replacement unit ships with factory default node ID. If your network already has a device at that address, you’ll get a bus collision and the axis won’t initialize. Set the node ID via SoMove or the onboard DIP switches before powering the network back up.
• F010 — Encoder Feedback Error: Check the encoder cable shield continuity first. On a hot swap, technicians often re-seat the connector without checking pin 5 (shield drain). A floating shield in a VFD-heavy environment will inject enough noise to trigger this fault within seconds of startup.
• F020 — Overcurrent on Axis 1–4: If this appears immediately on power-up with no load connected, suspect a failed output stage on the old unit — not a wiring issue. The replacement will clear it. If it persists on the new unit, check the motor winding resistance before condemning the controller.
• No Display / No Boot: Confirm 24 V DC logic supply is present on terminals before assuming the controller is dead. A failed SMPS upstream kills the unit silently. Measure at the terminal block, not at the breaker.

Replacement Checklist — Do This Before You Power On

1. Record all axis parameters from the old unit via SoMove backup export (if the unit still communicates). If it’s fully dead, pull the parameter file from your SCADA or DCS historian.
2. Verify firmware version on the replacement matches your existing drive family. MC-4/11/03/400 firmware is not always backward-compatible with older Lexium 32 drives below firmware v1.4. Check the drive nameplate.
3. Set CANopen node address and baud rate on the replacement unit before connecting to the network. Default baud is 250 kbps — confirm your network setting.
4. Restore parameters via SoMove. Do not rely on auto-tuning in a live production environment — use your saved parameter set.
5. Perform a slow-speed jog test on each axis before releasing to auto mode. Confirm encoder direction and limit switch response.

Reliability in Harsh Conditions

The MC-4/11/03/400 is not a lab instrument. It’s built for the floor — and the floor is unforgiving. Schneider Electric’s PowerDrive platform is validated against IEC 60068 environmental stress standards, which means the unit has been subjected to the kind of abuse that separates industrial-grade hardware from commercial-grade imitations.

Vibration: Tested to IEC 60068-2-6 sinusoidal vibration profiles. DIN rail mounting combined with the unit’s internal PCB retention design keeps solder joints and connector interfaces intact even in high-vibration press and stamping environments. If you’re mounting near a punch press, use vibration-damping DIN rail clips — the controller can handle it, but there’s no reason to add unnecessary stress cycles.

Thermal Cycling: Rated for continuous operation at 45 °C ambient. In practice, panel temperatures in summer production environments in Southeast Asia and the Middle East regularly hit 50–55 °C inside the enclosure. Ensure your panel has adequate forced-air ventilation and that the controller has the minimum 50 mm clearance above and below as specified in the installation guide. Thermal throttling is not a feature on this unit — it will fault before it burns.

Humidity & Condensation: IP20 rating means the unit is not sealed against moisture ingress. In coastal or high-humidity facilities, condensation during seasonal temperature swings is a real failure mode. If your panel is in an unheated area, fit a panel heater with thermostat. We’ve seen more MC-series failures from condensation than from any other single cause.

EMI Resistance: The PowerDrive platform is designed for coexistence with VFDs, contactors, and high-current switching loads. Proper cable segregation — signal cables separated from power cables by at least 200 mm, or routed in separate metallic conduit — is non-negotiable. The controller’s internal filtering handles normal industrial EMI, but it cannot compensate for poor panel wiring practice.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct access to DHL, FedEx, and UPS international gateway facilities. This is not a drop-ship arrangement. Stock is physically on our shelf, inspected, and ready to pack.

Standard Dispatch Process:

1. Order Confirmed Before 14:00 CST: Same-day dispatch. DHL Express or FedEx International Priority label generated within 2 hours of payment confirmation.
2. Packaging: Anti-static bag, foam-lined carton, fragile label, and shock indicator sticker. Every shipment. No exceptions.
3. Documentation: Commercial invoice, packing list, and certificate of origin included as standard. HS Code 8537.10 declared. If your customs broker needs additional documentation — MSDS, end-user declaration, or specific country certificates — advise us at order time.
4. Tracking: AWB number sent to your email within 1 hour of dispatch. Real-time tracking link provided.

Typical Transit Times (from Xiamen):

• Southeast Asia (SG, MY, TH, VN): 2–3 business days via DHL Express
• Middle East (AE, SA, QA): 3–4 business days via FedEx International Priority
• Europe (DE, NL, PL, FR): 4–5 business days via DHL Express
• North America (US, CA, MX): 4–6 business days via FedEx or UPS
• Australia / New Zealand: 3–5 business days via DHL Express

For bulk orders or freight-sensitive shipments, sea freight consolidation from Xiamen Port is available. Contact us for FCL/LCL rates and lead times.

Contact Information

Need a quote, stock confirmation, or technical pre-check before ordering? Reach us directly — no ticket system, no chatbot queue.

• Email: [email protected]
• WhatsApp: +86 18359268345
• Web: siemensplc.com
