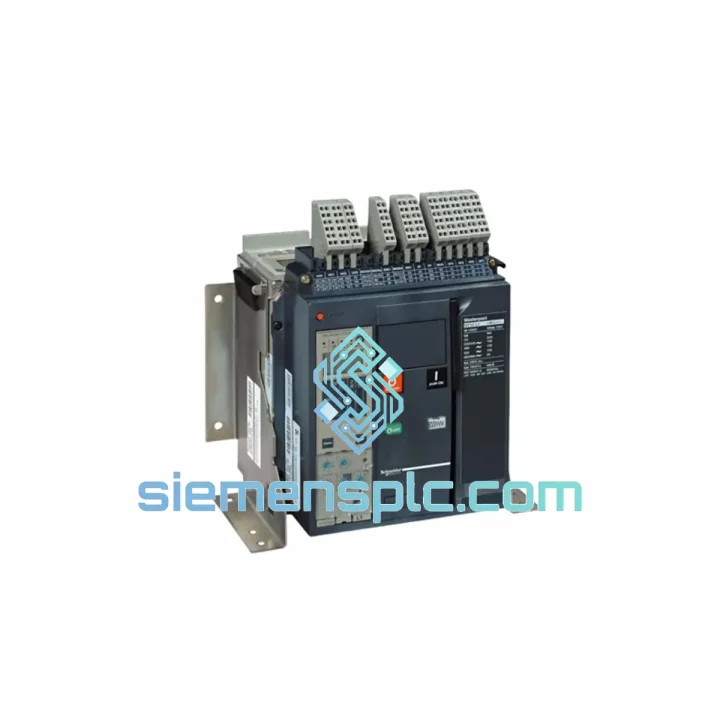

Schneider Electric MT10N1 Air Circuit Breaker

Schneider Electric MT10N1 — 1000A Masterpact NT ACB: Cut Downtime Before It Cuts Your Revenue

Every hour your line is down, the clock is running — on labor, on penalties, on customer trust. The MT10N1 is a 1000A, 3-pole air circuit breaker from Schneider Electric’s Masterpact NT series, rated for 690V AC and 42 kA breaking capacity. We stock it in Xiamen. You get it fast. That’s the deal.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Replacing an MT10N1 in a live switchboard is not a plug-and-play job. Here’s what actually matters on-site:

1. Micrologic Trip Unit Settings — Do Not Skip This
Before pulling the old breaker, photograph or record every Micrologic dial setting: Ir (long-time pickup), Isd (short-time pickup), Ii (instantaneous), and tsd (short-time delay). The replacement unit ships with factory defaults. If you energize without restoring these settings, you will either nuisance-trip under normal load or — worse — fail to trip under a real fault. Use the Micrologic test kit to verify settings before closing the breaker.

2. Drawout Cradle Compatibility
The MT10N1 uses the Masterpact NT drawout chassis — it is NOT interchangeable with the older NW series cradle. If you’re retrofitting from an NW installation, you need a new NT cradle assembly. Forcing an NT frame into an NW cradle will damage the secondary disconnect contacts and create intermittent control circuit faults that are extremely difficult to trace.

3. Zone Selective Interlocking (ZSI) Wiring
If your switchboard uses ZSI between upstream and downstream breakers, the ZSI pilot wires must be reconnected to the new MT10N1 in the correct polarity. Reversed ZSI wiring causes the breaker to behave as if it’s always receiving a restraint signal — it will delay tripping even during a close-in fault. Test ZSI function with a secondary injection set after replacement.

4. Common Fault Codes on Micrologic Units

• Alarm LED flashing (no trip): Ground fault pre-alarm. Check Ig setting and neutral/earth connections before assuming the breaker is faulty.
• SD contact open, breaker won’t close: Check for a latched SDE (fault trip) signal. Reset via the test/reset button on the Micrologic face. If SDE resets but breaker still won’t close, inspect the closing coil (XF) voltage and the anti-pumping relay.
• Motor mechanism fails to rack in: Verify 24V/48V/110V/230V supply to the motor mechanism matches the ordered voltage variant. Wrong voltage = burned motor coil.
• Intermittent tripping at partial load: Ir setting too low relative to actual load current. Measure true RMS current with a clamp meter and adjust Ir to 1.05–1.1× FLA.

5. Torque Specifications for Busbar Connections
At 1000A, connection resistance matters. Use a calibrated torque wrench: M10 bolts to 25 N·m, M12 to 40 N·m. Under-torqued connections at this current level will heat, oxidize, and eventually arc. This is the most common cause of premature ACB failure that gets misdiagnosed as a breaker defect.

Reliability in Harsh Conditions

The Masterpact NT series was designed for environments where consumer-grade equipment simply fails. The MT10N1 carries a mechanical endurance rating of 10,000 operations — that’s not a marketing number, it’s a type-tested figure per IEC 60947-2 Annex E. In practice, this means the breaker can survive decades of daily switching in a cement plant or steel mill without requiring a major overhaul.

The arc chute assembly uses de-ion plates engineered to quench 42 kA fault arcs within milliseconds, preventing arc flash propagation into adjacent compartments. The enclosure withstands continuous vibration up to 2g — relevant for installations near large compressors, presses, or marine propulsion systems.

Thermal performance is equally robust. The MT10N1 is rated for continuous operation at 40°C ambient without derating. At 50°C, apply a 0.9 derating factor to In — still 900A continuous, which covers the vast majority of real-world incomer applications. The Micrologic trip unit’s thermal memory function accounts for pre-fault load history, preventing nuisance trips during hot restarts after a brief outage.

Humidity and condensation are handled through the IP40 front-face rating combined with optional IP54 door sealing kits for outdoor or wash-down environments. For coastal or high-humidity installations, specify silver-plated busbar connections to resist oxidation-driven resistance creep.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port.

Standard Express Routing (DHL / FedEx Priority):

• Southeast Asia (Singapore, Malaysia, Thailand, Vietnam): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK, France): 4–5 business days
• North America (USA, Canada): 5–7 business days
• Australia / New Zealand: 4–5 business days
• South America (Brazil, Chile, Colombia): 6–8 business days

For urgent plant shutdowns, we offer same-day dispatch on orders confirmed before 14:00 CST. All shipments include a commercial invoice, packing list, and certificate of origin. Export classification: HS Code 8536.20 (circuit breakers for voltage ≤ 1000V) — cleared for export without restriction to most destinations.

Incoterms supported: EXW, FOB Xiamen, DAP, DDP. For DDP shipments to EU destinations, we handle import VAT and customs clearance — your team receives the unit at the dock door, no customs delays.

Tracking numbers are issued within 2 hours of dispatch. WhatsApp updates available for urgent shipments — message us at +86 18359268345 with your order number.
