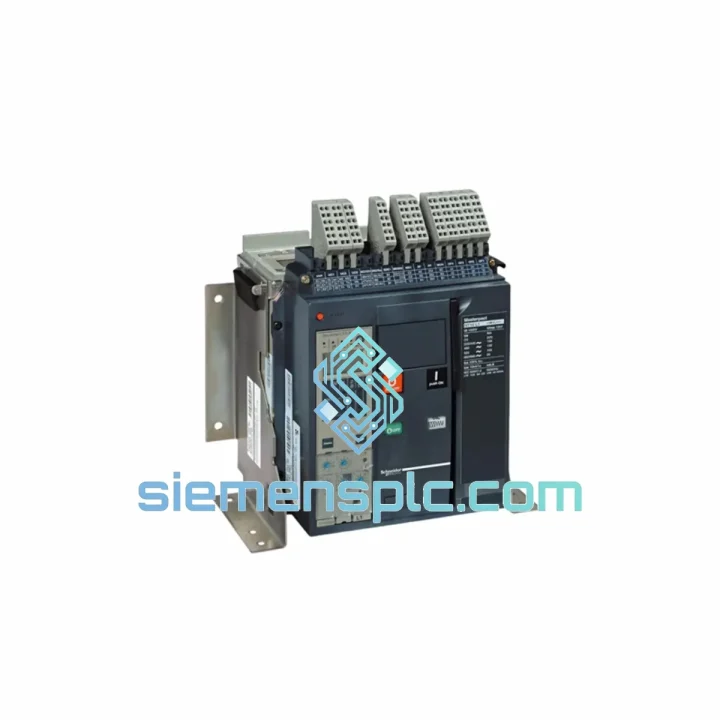

Schneider Electric MT32N1 Air Circuit Breaker

MT32N1 Down — Every Minute Costs You Money. We Ship Today.

Your main incomer just tripped. The MT32N1 is locked out. Production is at zero. You’ve already called three distributors and the earliest anyone can commit is three weeks. That’s not a lead time — that’s a financial catastrophe. At siemensplc.com, we stock the Schneider Electric MT32N1 Masterpact MT 3200A air circuit breaker for exactly this scenario. We’ve handled emergency callouts from steel mills in Turkey, data centers in Singapore, and petrochemical plants in the Middle East. When the clock is running, we move.

The MT32N1 is a 3200 A frame, N-rated (standard breaking capacity), 3-pole air circuit breaker from Schneider Electric’s Masterpact MT series — the IEC 60947-2 benchmark for low-voltage main and tie breaker applications. It is not a commodity item. It is the last line of defense between a fault current and a full facility blackout. Getting the wrong unit, or a counterfeit, is not an option. Every unit we ship is sourced from verified channels, physically inspected, and dispatched with full documentation. No grey market. No compromises.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Replacing an MT32N1 under pressure is not the same as a planned maintenance swap. Here’s what catches engineers off guard on site:

1. Trip Unit Mismatch — The #1 Cause of Repeat Callouts
The MT32N1 frame accepts the full Micrologic family, but the trip unit is NOT included with the breaker frame. If your failed unit had a Micrologic 5.0 E with earth fault protection and you install a bare MT32N1 frame without the matching trip unit, you will have no earth fault protection — and your protection coordination study is now invalid. Always pull the Micrologic model number off the failed unit before ordering. It’s printed on the trip unit face plate. Common pairings: Micrologic 2.0 A (basic LSI), 5.0 E (LSI + earth fault), 6.0 E (LSI + EF + metering), 7.0 (full power quality).

2. Fixed vs. Drawout — Confirm Before You Bolt
The MT32N1 is available in both fixed and drawout (withdrawable) configurations. Drawout units require a matching cradle/chassis already installed in the switchboard. If your switchboard has a drawout cradle and you order a fixed-mount unit, it will not rack in. Check the nameplate on the failed breaker: drawout units will show a racking handle recess and a position indicator (connected / test / disconnected). Fixed units have no racking mechanism.

3. Auxiliary Contact Wiring — Don’t Lose Your Interlocks
Before you pull the failed MT32N1, photograph the auxiliary contact terminal block. The OF (open/close), SD (fault trip), and SDE (earth fault) contacts feed your SCADA, BMS, or interlock logic. A new frame ships without auxiliary contacts pre-wired. Verify the auxiliary contact modules (OF, SD, SDE) are transferred from the old unit or ordered as accessories. Failure to restore these signals will leave your control system blind to breaker state — a safety issue, not just a nuisance.

4. Zone Selective Interlocking (ZSI) Re-commissioning
If your protection scheme uses ZSI between the MT32N1 and downstream MCCBs, the ZSI wiring must be reconnected and the scheme re-tested after replacement. ZSI is a two-wire pilot circuit between trip units. A broken or unconnected ZSI link defaults to non-selective tripping — meaning a downstream fault will trip the main breaker instead of the feeder breaker. Re-test with a secondary injection set before re-energizing.

5. Fault Code Reference (Micrologic Trip Units)
If the original unit tripped on a fault rather than failing mechanically, read the Micrologic display before removing the unit. Common fault indicators: Ir — overload (long-time); Isd — short-time overcurrent; Ii — instantaneous; Ig — earth fault. A persistent Ig trip with no visible ground fault downstream often indicates a Micrologic sensor calibration drift or a CT wiring issue — not a failed breaker. Replacing the frame without investigating the root cause will result in the same trip on the new unit.

6. Torque Settings on Busbar Connections
The MT32N1 at 3200 A carries significant current. Busbar connection torque is specified in the Schneider installation manual (typically 14–20 N·m depending on conductor size and lug type). Under-torqued connections at this current level will overheat within hours of re-energization. Use a calibrated torque wrench. This is not optional.

Reliability in Harsh Conditions

The Masterpact MT series was not designed for a clean lab environment. It was engineered for the reality of industrial switchrooms: ambient temperatures swinging from sub-zero winter startups to +50°C summer peaks in non-air-conditioned substations; vibration from nearby compressors, presses, and rolling mills transmitted through the switchboard structure; humidity cycling that causes condensation on contact surfaces overnight.

The MT32N1 addresses these conditions through a sealed arc chute assembly that prevents contamination of the interruption chamber, silver-alloy main contacts rated for thousands of fault-level operations without contact welding, and a mechanical latch mechanism with a proven operating force specification that remains consistent across the full temperature range. The drawout cradle’s primary disconnects are designed with a wiping action that clears surface oxidation on each racking cycle — critical in coastal or high-humidity environments where contact resistance creep is a real failure mode.

Schneider Electric subjects the Masterpact MT to IEC 60068 environmental testing: vibration per IEC 60068-2-6, dry heat per IEC 60068-2-2, damp heat per IEC 60068-2-78, and cold per IEC 60068-2-1. These are not marketing claims — they are type test results documented in the product’s technical file. When you install an MT32N1 in a coastal petrochemical plant or a desert mining substation, you are installing a product that has been validated for exactly those conditions.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most logistics-efficient export cities on the mainland, with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. For emergency orders, we operate a same-day cutoff: orders confirmed and payment cleared before 14:00 CST ship the same business day.

Typical transit times from Xiamen: Southeast Asia (Singapore, Thailand, Indonesia) — 2 to 3 business days via DHL Express; Middle East (UAE, Saudi Arabia, Qatar) — 3 to 4 business days; Europe (Germany, Netherlands, UK, France) — 3 to 5 business days; North America (USA, Canada) — 4 to 6 business days; South America and Africa — 5 to 8 business days depending on customs clearance.

We prepare all export documentation in-house: commercial invoice, packing list, certificate of origin, and where required, a material safety data sheet. For customers in countries with import duty exemptions under applicable trade agreements, we can provide the necessary origin documentation to support duty reduction claims. Customs HS code for the MT32N1 is 8536.20 (automatic circuit breakers for voltage not exceeding 1000V) — we declare correctly, every time. No misdeclaration, no undervaluation, no surprises at customs.

For critical shipments, we offer shipment tracking with proactive milestone notifications: picked up, in transit hub, out for delivery. If a shipment is held at customs, our logistics team engages immediately with the freight forwarder to resolve documentation queries. We have cleared shipments into over 60 countries without a single abandoned consignment.
