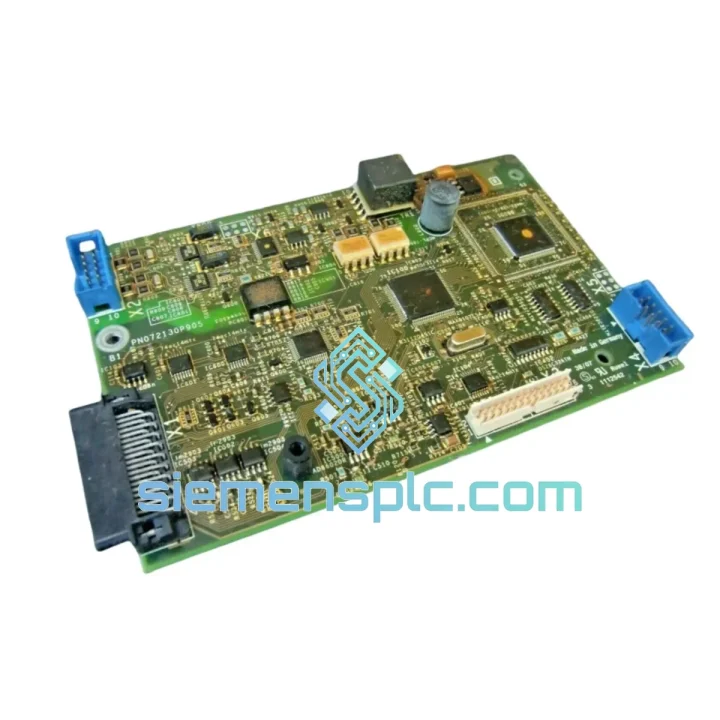

Schneider Electric PN072130P905 VFD Control Board

PN072130P905 Down? Every Minute Costs You Money — We Ship Today

Your Altivar drive just threw a fault. The control board is dead. The line is stopped. You’ve already called your local distributor — lead time is 6 weeks. That’s not an option. The Schneider Electric PN072130P905 VFD control board is the nerve center of your Altivar drive: it handles all closed-loop speed regulation, I/O signal processing, fieldbus communication, and protection logic. When it fails, the drive is a paperweight. We stock it. We ship it today from Xiamen. DHL Express to your dock in 3–5 business days, anywhere on the planet.

This is not a gray-market listing. The PN072130P905 we supply is sourced through verified industrial distribution channels — full traceability, anti-static ESD packaging, and a certificate of conformity in every box. Whether you’re an MRO buyer at a petrochemical plant, a system integrator racing against a commissioning deadline, or a maintenance engineer staring at a stopped conveyor at 2 AM, this is the part that gets you back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How do you know the PN072130P905 is the failed component — and not the power board or IGBT module? Here’s the field diagnostic sequence used by experienced Altivar technicians:

Step 1 — Fault Code Isolation. Power up the drive without enabling the run command. If the keypad displays fault codes such as InF (internal fault), CFF (configuration factory fault), or the display remains completely blank despite confirmed DC bus voltage on the power board, the control board is the primary suspect. Codes like OCF (overcurrent) or PHF (phase loss) typically point to the power stage — don’t replace the control board for those.

Step 2 — DC Bus Voltage Check. Before condemning the control board, measure DC bus voltage across the capacitor bank terminals. If bus voltage is present (typically 540–680 VDC for 400 V class drives) but the control board shows no signs of life, the fault is confirmed upstream of the power stage — i.e., the control board itself.

Step 3 — Visual Inspection of PN072130P905. Remove the control board carefully. Inspect for: burnt traces near the SMPS section, bulged or leaking electrolytic capacitors (common failure point after 5–8 years in high-ambient environments), cracked solder joints on the main processor or memory ICs, and corrosion on the edge connector fingers. Any of these confirms replacement is the correct path — repair is not cost-effective.

Step 4 — Replacement Procedure.

• Isolate and lock out the drive. Verify DC bus has discharged below 50 VDC (minimum 5 minutes after power-off — use a calibrated meter, not assumption).
• Photograph all wiring connections and option card positions before disassembly.
• Remove option cards (fieldbus, encoder, I/O expansion) before extracting the control board — they are not interchangeable between board revisions without verification.
• Install the new PN072130P905. Seat the edge connector firmly — partial seating causes intermittent faults that are extremely difficult to diagnose.
• Restore option cards. Power up without load connected.

Step 5 — Post-Replacement Configuration. This is where most field replacements go wrong. The PN072130P905 does not retain the previous drive configuration. You must restore parameters from a saved backup (via SoMove software or keypad upload) or manually re-enter all application parameters: motor nameplate data (rated voltage, current, frequency, speed, power factor), control mode (V/f, sensorless vector, closed-loop vector), ramp times, PID settings, and all I/O assignments. Skipping this step and running the drive on factory defaults will cause immediate motor protection trips or incorrect speed regulation. If no parameter backup exists, retrieve the motor nameplate data and rebuild the configuration from scratch — budget 45–90 minutes for a complex application.

Firmware Note: If your replacement board ships with a different firmware revision than the original, verify compatibility with any installed option cards. Mismatched firmware between the control board and a fieldbus option card (e.g., Profibus DP, EtherNet/IP) can cause communication faults that appear unrelated to the board swap. Check the Schneider Electric firmware compatibility matrix or contact our technical team before powering up.

Reliability in Harsh Conditions

The Altivar control board architecture is engineered for the realities of industrial deployment — not laboratory conditions. The PN072130P905 is designed to operate continuously in environments that would destroy consumer-grade electronics within weeks.

Thermal Performance. The board’s power supply section is rated for ambient temperatures up to 50°C (122°F) at full load, with derating curves extending operation in higher-temperature enclosures. Industrial-grade capacitors with extended temperature ratings are used throughout — not the cost-reduced variants found in counterfeit replacements. In cement plants, steel mills, and foundries where ambient temperatures routinely exceed 45°C, this thermal margin is the difference between a drive that runs for years and one that fails within months.

Vibration Resistance. PCB components are selected and mounted to withstand continuous vibration levels consistent with IEC 60068-2-6 test profiles. In applications like mining conveyors, marine deck machinery, and compressor skids where structural vibration is constant, solder joint integrity and component mounting quality are critical. The PN072130P905 uses conformal coating on critical circuit sections to prevent vibration-induced micro-fractures from propagating.

Humidity and Contamination. Industrial environments are not clean rooms. Condensation, airborne particulates, and chemical vapors are facts of life in food processing, wastewater treatment, and chemical plants. The control board’s conformal coating provides a barrier against moisture ingress and conductive contamination that would otherwise cause leakage currents, corrosion, and eventual board failure. This is why a genuine OEM PN072130P905 outlasts a counterfeit substitute by years — the coating process and materials are part of the design specification, not an afterthought.

EMC Immunity. Variable frequency drives operate in electrically noisy environments — they generate conducted and radiated emissions, and they are exposed to them from adjacent equipment. The PN072130P905 incorporates filtering and shielding designed to meet IEC 61800-3 EMC requirements, ensuring stable operation even when installed in panels alongside contactors, relays, and other drives switching at high frequencies.

Global Express Logistics

Downtime doesn’t wait for slow freight. Our logistics operation is built around one objective: getting the PN072130P905 from our Xiamen warehouse to your facility in the shortest possible time, with full visibility at every step.

Same-Day Dispatch. Orders confirmed with payment before 15:00 CST are picked, packed in anti-static ESD shielding bags, placed in rigid outer cartons with foam cushioning, and handed to DHL or FedEx the same business day. No batch processing, no warehouse queues.

Express Transit Times (from Xiamen):

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK, France): 3–5 business days
• North America (USA, Canada, Mexico): 4–6 business days
• South America (Brazil, Chile, Colombia): 5–8 business days
• Australia / New Zealand: 3–5 business days

Export Documentation. Every international shipment includes a commercial invoice, packing list, and certificate of conformity. For customers in countries requiring import permits or specific customs declarations for electronic components, our logistics team prepares documentation to the correct HS code classification to prevent customs delays. We have shipped to over 60 countries — customs clearance complications are rare because our paperwork is correct the first time.

Shipment Tracking. A DHL or FedEx tracking number is issued within 2 hours of dispatch and sent directly to your registered email. You can monitor the shipment in real time from Xiamen to your door. For critical shipments, our team proactively monitors transit status and flags any delays before they become surprises.

Packaging Integrity. The PN072130P905 is a sensitive PCB assembly. It ships in a multi-layer protective configuration: inner ESD shielding bag, foam-lined rigid inner box, and outer corrugated carton rated for international air freight handling. Drop tests and compression tests are part of our packaging qualification process. The board arrives in the same condition it left our warehouse.
