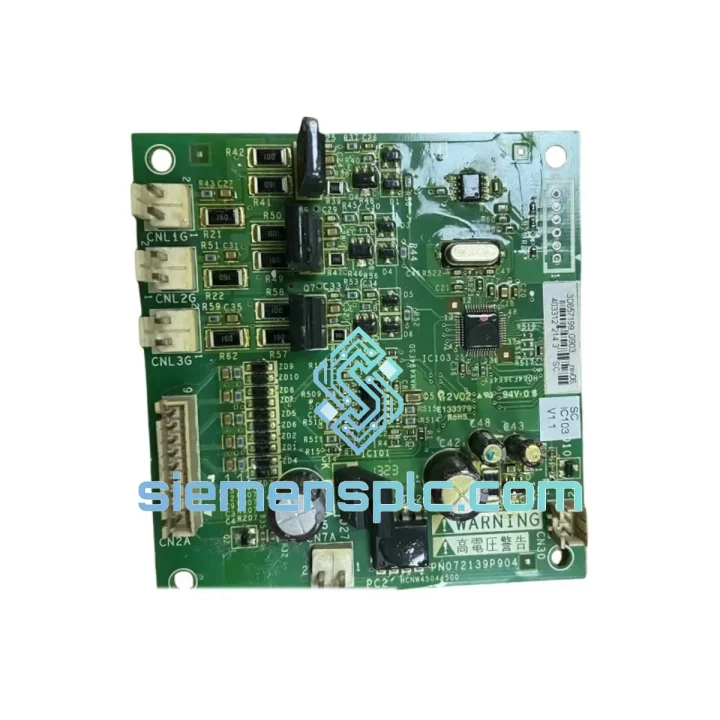

Schneider Electric PN072139P904 Inverter Power Board

PN072139P904 Gate Driver Board: Stop the Clock on Your ATV Drive Downtime

Your Altivar drive is dead. The line is stopped. Every minute costs real money — whether it’s a bottleneck in a packaging line, a tripped pump in a water treatment plant, or a stalled conveyor in a distribution center. The PN072139P904 inverter power board is the single component standing between you and full production recovery. We stock it. We ship it today from Xiamen. That’s the only thing that matters right now.

This is not a generic listing. The PN072139P904 is the OEM gate driver and DC bus interface board used inside specific Schneider Electric Altivar (ATV) series variable frequency drives. It handles PWM signal conditioning from the DSP control board, isolated IGBT gate drive distribution, DC bus voltage sensing, over-current fault feedback, and the auxiliary SMPS rails that power the control circuitry. When this board fails, the drive fails — completely. There is no workaround. You need the exact part, fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm PN072139P904 is the failed component:

Before pulling the board, run through this sequence. Power down the drive and lock out the supply. Discharge the DC bus — wait a minimum of 10 minutes after power-off and verify bus voltage below 30 VDC with a meter before touching anything. Then check the following:

• Fault codes pointing to gate driver failure: On ATV drives, faults like OCF (overcurrent), PHF (phase loss), SCF (short circuit), or OBF (output phase imbalance) that appear immediately at power-up or at the first run command — before the motor even turns — are strong indicators of a gate driver board fault rather than a motor or cable issue. If the fault clears on reset but returns the instant a run command is issued, the IGBT gate drive chain is suspect.
• Visual inspection of PN072139P904: Look for burnt or cracked gate driver ICs (typically dual-channel optocoupler-based drivers), swollen or leaking electrolytic capacitors on the SMPS section, and any PCB trace damage near the IGBT connector. Darkening or carbonization around the gate resistors is a definitive failure sign.
• IGBT module check: Before installing the new PN072139P904, verify the IGBT power module itself is not shorted. Use a diode-test mode multimeter across each IGBT leg (C-E, G-E). A shorted IGBT will destroy a new gate driver board within seconds of power-up. Do not skip this step.
• No DIP switch or address configuration required: The PN072139P904 is a passive interface board — it carries no firmware, no node address, and no user-configurable jumpers. Replacement is purely mechanical and electrical. Seat the board connectors fully, torque any mounting screws to spec, and verify no connector pins are bent before reassembly.
• Firmware note: The ATV control board firmware does not need to be updated when replacing the power board. Drive parameters stored in the control board are unaffected. After replacement, perform a short no-load test run at low frequency (5–10 Hz) before returning to full production speed.
• Thermal interface: If the board mounts against a heatsink surface, inspect the thermal pad or compound. Degraded thermal interface material is a common root cause of repeated power board failures. Replace it during the repair.

Reliability in Harsh Conditions

Industrial VFD environments are unforgiving. The PN072139P904 is designed to operate inside a drive enclosure where ambient temperatures regularly hit 45–55°C, where vibration from nearby machinery couples into the cabinet structure, and where humidity cycles between dry summer heat and condensation-prone winter shutdowns.

The board’s gate driver ICs are rated for extended industrial temperature ranges. The PCB substrate uses FR4 glass-epoxy construction with conformal coating on production units, providing resistance to moisture ingress and airborne conductive particulates — a real concern in cement plants, woodworking facilities, and food processing environments where fine dust is endemic. The SMPS capacitors on the auxiliary power section are selected for 105°C rated life, not the cheaper 85°C consumer-grade parts that fail prematurely in hot drive cabinets.

Connector retention is mechanically positive — the board-to-IGBT module connectors use friction-lock housings that resist vibration-induced intermittent contact, which is one of the most common causes of nuisance tripping in mobile or high-vibration installations such as crane drives, ship propulsion auxiliaries, and mining conveyor systems.

Each unit leaving our Xiamen warehouse passes a pre-shipment visual and continuity inspection: PCB surface check for cracks, delamination, and solder joint integrity; connector pin inspection for straightness and plating condition; and component-level check for obvious failures. We do not ship boards with visible defects.

Global Express Logistics

Downtime doesn’t wait for standard freight. Our dispatch process is built around that reality.

Orders confirmed before 15:00 CST ship same day from our Xiamen facility. We use DHL Express and FedEx International Priority as primary carriers — both offer door-to-door tracking and customs clearance support. Typical transit times from Xiamen: Southeast Asia 2–3 business days, Europe 3–5 business days, North America 4–6 business days, Middle East and Africa 4–7 business days.

Export documentation is prepared in-house: commercial invoice, packing list, and HS code declaration (HS 8537.10 / 8504.40 depending on destination customs classification). For customers in the EU, we can provide a EUR.1 movement certificate or origin declaration on request. For customers in countries with import duty exemptions on industrial automation components, we advise confirming the applicable HS code with your customs broker before shipment to avoid delays at clearance.

All shipments are packed in double-wall export cartons with foam inserts. The PN072139P904 board is individually bagged in an anti-static ESD shielding bag before boxing. Fragile and ESD-sensitive labels are applied externally. Insurance is available on request for high-value shipments.

If your situation is critical — line down, no backup drive, production at zero — contact us directly on WhatsApp. We will confirm stock, generate the invoice, and hand the parcel to the courier the same afternoon.
