SH31001P11A2000 – Lexium 32 AC Servo Motor: Torque Density and Encoder Fidelity in a 100 mm Frame

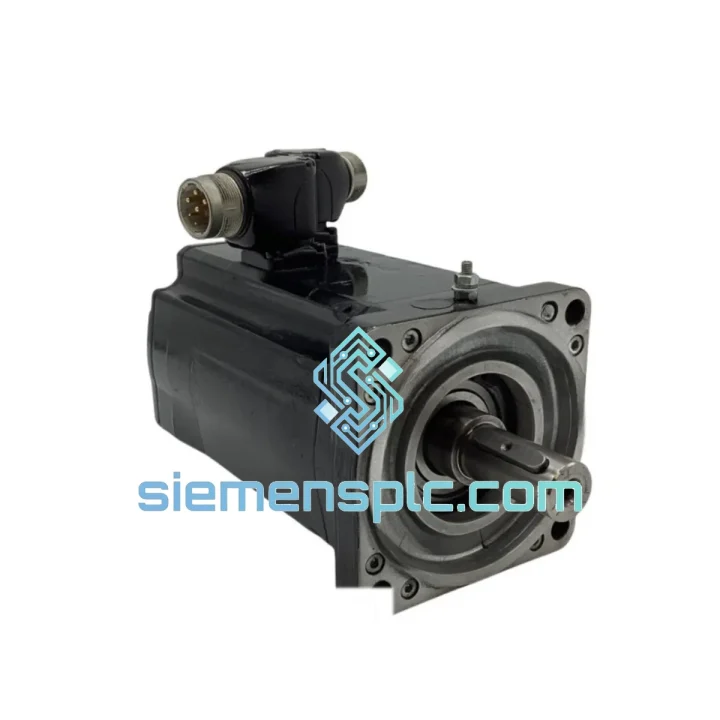

The Schneider Electric SH31001P11A2000 is a three-phase AC synchronous servo motor belonging to the Lexium 32 SH3 frame family. Rated at 1.0 kW continuous output power with a nominal shaft speed of 3000 RPM, this motor delivers a continuous torque of 3.18 N·m and a peak torque of 9.55 N·m — a 3:1 peak-to-continuous ratio that accommodates aggressive acceleration ramps without thermal derating under standard duty cycles.

The motor’s stator winding is wound to Insulation Class F (155 °C thermal limit), while the operating ambient envelope spans 0 °C to +40 °C. The rotor assembly is dynamically balanced to G2.5 grade, which constrains residual vibration to levels compatible with sub-micron positioning applications when paired with a correctly tuned Lexium 32A or 32M drive. The 100 mm × 100 mm flange and ø14 mm smooth shaft conform to IEC 72-1 mounting dimensions, enabling direct mechanical substitution within existing machine frames without fixture redesign.

Sealing is rated at IP65 per IEC 60529, providing complete protection against dust ingress and resistance to low-pressure water jets — a specification that qualifies this motor for wash-down zones in food processing lines and coolant-mist environments in CNC machining centers. The motor weighs approximately 4.3 kg, a mass consistent with its SH3 frame classification.

The feedback device is a 2500 PPR incremental encoder mounted on the non-drive end. At 3000 RPM, the encoder generates a quadrature output frequency of 150 kHz per channel, which the Lexium 32 drive interpolates to achieve position resolution of 10,000 counts per revolution in ×4 quadrature decode mode. This feedback architecture supports velocity loop bandwidths exceeding 500 Hz under standard inertia-matching conditions, enabling the servo system to track dynamic reference profiles with position error below ±1 encoder count at steady state.

All units supplied through siemensplc.com are sourced from verified distribution channels. Each motor is inspected for nameplate integrity, winding resistance symmetry across phases, encoder signal continuity, and shaft runout before dispatch from our Xiamen, China facility. A 12-month warranty against manufacturing defects is included with every shipment.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SH31001P11A2000 employs a surface-mounted permanent magnet (SMPM) rotor topology. Unlike interior permanent magnet (IPM) designs, the SMPM configuration presents a near-uniform air-gap reluctance, which eliminates reluctance torque ripple as a significant harmonic source. The result is a torque waveform with total harmonic distortion below 2 % at rated current — a characteristic that directly reduces mechanical excitation of machine structures at multiples of the electrical frequency.

The stator lamination stack is constructed from 0.35 mm silicon-steel sheets with an insulating oxide coating. This lamination thickness limits eddy-current losses to acceptable levels at the drive’s PWM carrier frequency (typically 4–8 kHz for Lexium 32), preventing the iron-loss-induced thermal runaway that affects thicker lamination stacks in high-frequency switching environments.

The TTL differential encoder interface (A, /A, B, /B, Z, /Z) provides inherent common-mode noise rejection. In industrial cabinets where variable-frequency drives, contactors, and switching power supplies generate broadband EMI in the 150 kHz–30 MHz range, differential signaling maintains signal integrity over cable runs up to 20 m without requiring additional line receivers or optical isolators at the drive input. The encoder cable shield must be terminated at the drive chassis ground — not at the motor frame — to prevent ground-loop currents from corrupting the position signal.

The motor’s IP65 shaft seal uses a double-lip contact design with a grease-filled labyrinth. This geometry maintains sealing effectiveness across the full shaft speed range without generating the frictional torque penalty associated with single-contact radial shaft seals, which can introduce nonlinear friction into the servo loop at low speeds.

Thermal management relies on natural convection from the finned aluminum housing. The thermal resistance from winding to ambient (Rth_winding-ambient) is approximately 1.8 K/W, meaning that at rated continuous current, the winding temperature rise above ambient is approximately 57 K — leaving a 58 K margin to the Class F limit at a 40 °C ambient. This margin permits short-duration overload cycles (peak torque for ≤ 3 s) without exceeding the insulation thermal rating, provided the duty cycle allows adequate cooling intervals.

System Integration Benefits

• Deterministic velocity loop closure: The 2500 PPR encoder, decoded at ×4 quadrature, yields 10,000 counts/rev. At 3000 RPM, the position update rate is 500,000 counts/s, providing the Lexium 32 drive’s current controller with sufficient resolution to close the velocity loop at bandwidths above 500 Hz — a prerequisite for tracking cam profiles and electronic gearing applications without phase lag accumulation.
• Plug-and-play drive parameterization: The Lexium 32A and 32M drives store motor parameter sets (Kt, Ke, Rs, Ls, encoder PPR, thermal model coefficients) in non-volatile memory. When the SH31001P11A2000 is selected from the drive’s motor database via SoMove or the integrated keypad, all current limits, speed limits, and thermal protection thresholds are automatically configured — eliminating manual parameter entry errors during commissioning.
• Integrated thermal protection: A PTC thermistor embedded in the stator winding connects to the drive’s motor protection input. The drive monitors winding resistance continuously; when the thermistor resistance exceeds the trip threshold (corresponding to approximately 150 °C winding temperature), the drive executes a controlled deceleration to zero speed before disabling the output stage — preventing abrupt torque interruption that could damage mechanical couplings or workpieces.
• Transparent diagnostic reporting: The Lexium 32 drive logs fault codes, peak current events, and thermal headroom data accessible via Modbus RTU, CANopen, or EtherNet/IP. This telemetry allows SCADA systems and PLCs (Modicon M221, M241, M262) to implement predictive maintenance logic based on actual motor thermal state rather than fixed time-based service intervals.
• Mechanical compatibility with standard servo accessories: The ø14 mm smooth shaft accepts standard servo couplings (bellows, disc, oldham) without keyway-induced backlash. The 100 mm flange pattern is shared across the SH3 frame family, allowing motor substitution without modifying the machine’s motor mounting plate or coupling hub.
• EMC-compliant cable routing: Schneider Electric specifies shielded motor power cables (VW3M5101R/VW3M5102R) with 360° shield termination at both the motor connector and the drive’s EMC cable gland. This topology suppresses conducted emissions on the motor cable below the limits of EN 61800-3 Category C2, avoiding interference with adjacent instrumentation and communication networks.
• Multi-axis synchronization: When multiple SH31001P11A2000 motors are driven by Lexium 32M drives connected via CANopen or EtherNet/IP, the network’s distributed clock mechanism synchronizes position setpoint updates across axes with jitter below 1 µs. This synchronization accuracy is sufficient for electronic cam and gantry applications where axis position error must remain below 10 µm.
• Scalable power architecture: The SH3 frame motor family spans 0.5 kW to 2.0 kW, all sharing the same flange dimensions and encoder interface. A machine designed around the SH31001P11A2000 can be re-rated to higher torque by substituting a larger SH3 motor without mechanical redesign, provided the Lexium 32 drive’s continuous current rating is sufficient for the replacement motor.

Quality Assurance & Global Logistics

Every SH31001P11A2000 unit dispatched from our Xiamen, China facility undergoes a four-stage verification protocol before packaging:

• Source traceability: Units are procured through documented supply chains with batch-level traceability to Schneider Electric’s manufacturing records. Counterfeit screening includes nameplate font analysis, label adhesive inspection, and connector pin geometry verification against OEM reference samples.
• Electrical verification: Phase-to-phase winding resistance is measured at 25 °C and compared against the nominal value (4.8 Ω ± 10 %). Insulation resistance between windings and frame is tested at 500 V DC; acceptance threshold is ≥ 100 MΩ.
• Encoder signal validation: The encoder is powered at 5 V DC and rotated manually. A/B channel quadrature integrity and Z-pulse width are verified with an oscilloscope. Units with missing channels, asymmetric duty cycles, or absent index pulses are quarantined.
• Packaging: Motors are wrapped in anti-static polyethylene film, seated in custom-cut EPE foam inserts, and sealed in double-wall corrugated cartons rated for 30 kg drop impact. Moisture-absorbing silica gel sachets are included for sea freight shipments.

Logistics options from Xiamen:

• DHL Express / FedEx International Priority: 3–7 business days to most destinations. Real-time tracking provided at shipment confirmation.
• Sea freight LCL/FCL: 15–35 days depending on destination port. Suitable for bulk orders of 10+ units.
• Export documentation: Commercial invoice, packing list, certificate of origin (CO), and HS code declaration (HS 8501.52) provided as standard. FORM E (ASEAN-China FTA) available on request for eligible destinations.
