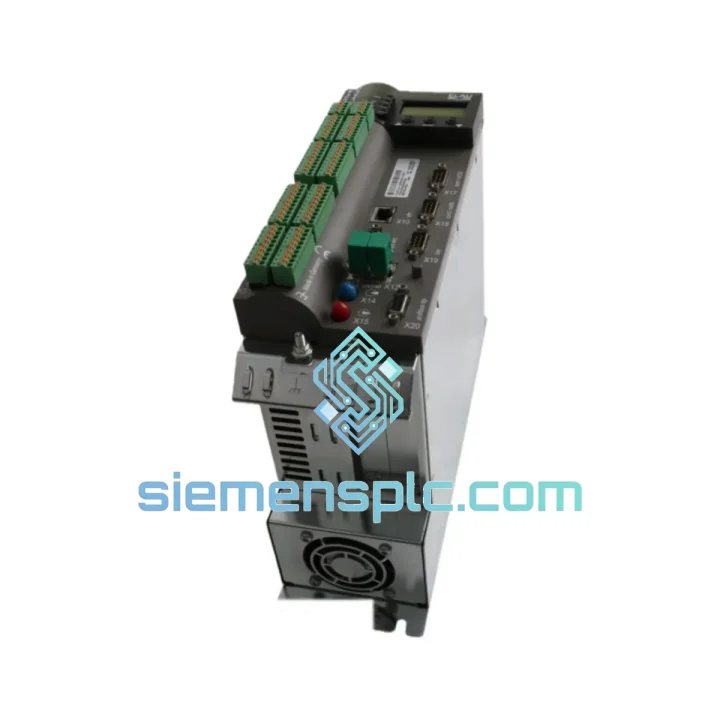

Schneider Electric VCA07AAAA0AA00 AC Servo Drive – Lexium 05

Schneider Electric VCA07AAAA0AA00 — Lexium 05 Servo Drive in Single/Three-Phase 200–240 V Industrial Motion Control

The VCA07AAAA0AA00 is a 7 A continuous-output AC servo drive within Schneider Electric’s Lexium 05 platform, factory-coded as configuration C400/10/1/1/1/00. It operates on a 200–240 V AC supply (single-phase or three-phase), making it deployable across a broad range of global grid standards without additional transformer stages. The drive accepts incremental or absolute encoder feedback from matched BSH and BMH series servo motors, closing the position, velocity, and torque loops entirely within its onboard DSP. Communication is handled natively via CANopen DS402 or Modbus RTU, enabling direct integration with Schneider Modicon PLCs and third-party controllers without gateway hardware.

At 1.68 kg and IP20-rated, the VCA07AAAA0AA00 is designed for panel or DIN-rail mounting inside a control cabinet. Its thermal management relies on forced convection through an integrated fan, with internal temperature monitoring feeding back to the drive’s fault management logic. The unit supports auto-tuning routines that characterize the connected motor-load inertia ratio and set PID gains accordingly, reducing commissioning time on new machine builds.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The VCA07AAAA0AA00 is built around a dedicated motion-control DSP that executes the cascaded position-velocity-torque loop at a 125 µs current-loop sample period. The inner torque loop operates at the full PWM interrupt rate (8 kHz), while the velocity and position loops run at 1 ms and 4 ms respectively — a hierarchy that prevents integrator windup from propagating upward through the control chain during transient load disturbances.

EMC Architecture: The drive integrates a multi-stage EMI filter on the AC input side, combining a common-mode choke with X- and Y-class capacitors to attenuate conducted emissions to EN 61800-3 Category C2 limits. The DC bus is decoupled with a bank of electrolytic capacitors that also serve as a short-term energy buffer during regenerative braking events, absorbing back-EMF before the braking resistor threshold is reached. The power stage uses IGBT modules rated at 600 V / 30 A, providing a 4.3× current headroom over the 7 A continuous rating — a margin that directly extends IGBT junction lifetime under repetitive peak-current cycles.

Encoder Signal Conditioning: The encoder input stage uses differential line receivers (RS-422 compatible) with 120 Ω termination resistors switchable via firmware parameter. This eliminates reflection artifacts on encoder cables longer than 10 m, which is a common source of position count errors in long-cable machine architectures. For absolute encoder variants, the SSI interface clocks data at up to 1 MHz, delivering sub-millisecond position refresh latency at startup without requiring a homing cycle.

Safe Torque Off (STO): The drive implements a hardware-level STO function (SIL 2 / PLd per EN 62061 / EN 13849-1) via two independent 24 V DC input channels. When both channels are de-energized, the IGBT gate drive signals are physically interrupted at the hardware level — independent of firmware state — bringing the motor to a torque-free condition without removing main power. This architecture satisfies machinery directive safety requirements without an external contactor in the motor circuit.

Thermal Management: An NTC thermistor mounted on the IGBT heatsink feeds a hardware comparator that triggers a pre-fault warning at 80 °C and a protective shutdown at 90 °C. The internal fan is speed-controlled based on heatsink temperature, reducing acoustic noise and fan bearing wear during low-load operation.

System Integration Benefits

• Native CANopen DS402 state machine: The drive implements the full DS402 device profile, including Homing Mode, Profile Position, Profile Velocity, and Cyclic Synchronous Position (CSP) modes. CSP mode enables sub-millisecond position command updates synchronized to the CANopen SYNC telegram, eliminating jitter in multi-axis coordinated motion.
• Modbus RTU multi-drop topology: Up to 31 drives can share a single RS-485 bus at 115,200 baud, reducing wiring harness complexity in multi-axis panel builds. The drive’s Modbus register map is fully documented and compatible with standard Modicon function blocks in Unity Pro and EcoStruxure Machine Expert.
• Auto-tuning with inertia estimation: The built-in inertia identification routine applies a swept-frequency torque excitation and measures the resulting velocity response to compute the load-to-motor inertia ratio. This value seeds the velocity loop gain calculation, reducing manual tuning iterations from hours to minutes on new machine types.
• Integrated braking resistor interface: An onboard braking chopper activates when DC bus voltage exceeds 390 V, dissipating regenerative energy through an external resistor. The chopper duty cycle and resistor thermal model are monitored in real time, with a fault triggered before resistor overtemperature — protecting both the resistor and the drive’s DC bus capacitors.
• Diagnostic transparency via SoMove: The SoMove PC tool provides oscilloscope-style capture of up to 8 internal variables (position error, velocity, torque demand, bus voltage, etc.) at 1 ms resolution without interrupting drive operation. This enables root-cause analysis of intermittent faults without adding external measurement hardware.
• Deterministic I/O response time: The 6 digital inputs are sampled every 125 µs within the current-loop interrupt, giving a worst-case input-to-torque-response latency of 250 µs. This is sufficient for hardware limit switch and registration mark detection in high-speed packaging applications without requiring a dedicated motion controller.
• Fault history with timestamp: The drive stores the last 10 fault events with associated operating data (speed, current, bus voltage, temperature) in non-volatile memory. This data survives power cycling and is retrievable via Modbus or SoMove, enabling post-mortem analysis without a data logger.
• Seamless motor matching within Lexium 05 ecosystem: When paired with Schneider BSH or BMH series motors, the drive reads motor nameplate data from the encoder EEPROM at power-up and auto-configures rated current, encoder resolution, and thermal protection thresholds — eliminating manual parameter entry errors during commissioning.

Quality Assurance & Global Logistics

Every VCA07AAAA0AA00 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and undergoes a structured incoming inspection protocol before dispatch. Physical authentication checks include OEM label verification, date code cross-referencing against Schneider Electric’s production batch records, and connector pin integrity inspection. Units showing evidence of counterfeit markings, re-labeling, or prior field use without documented service history are rejected at intake.

For orders requiring additional assurance, pre-shipment functional testing is available: the drive is powered up, encoder feedback is simulated, and the drive is commanded through a velocity profile to confirm current loop regulation and fault-free operation across the full speed range. A test report is issued with the shipment.

Packaging follows anti-static handling protocols — ESD-safe bags, foam-lined cartons, and moisture-indicator cards for ocean freight. Export documentation includes commercial invoice, packing list, and Certificate of Conformance. HS Code 8537.10 applies for customs classification in most jurisdictions.

Logistics are handled from Xiamen, China, with DHL Express and FedEx International Priority as primary carriers. Standard transit times are 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia. For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST. Bulk orders exceeding 10 units are eligible for consolidated sea freight with full insurance coverage.
