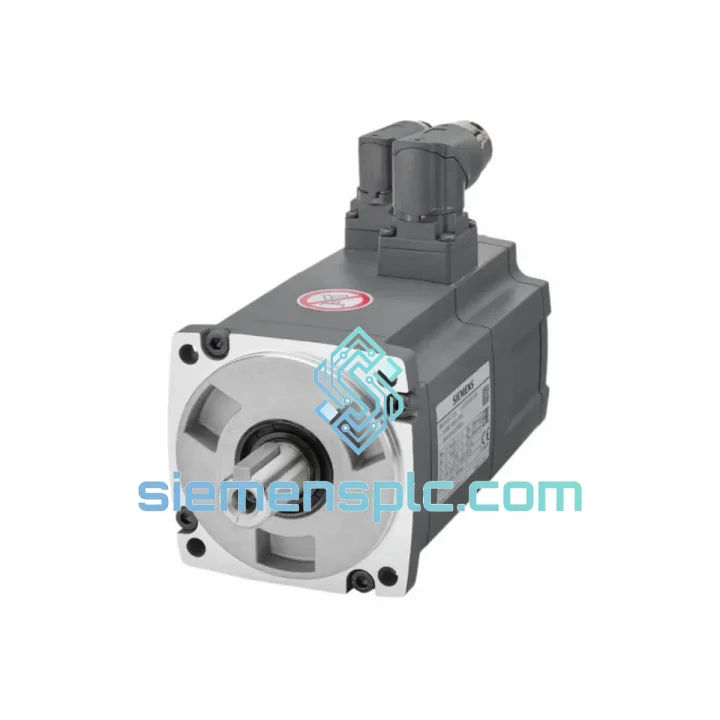

Siemens 1FL6044-1AF61-2AA1 Servo Motor — SIMOTICS S-1FL6

Siemens 1FL6044-1AF61-2AA1 — Permanent Magnet Synchronous Servo Motor for SINAMICS S210 Single-Axis Drive Systems

The 1FL6044-1AF61-2AA1 belongs to the SIMOTICS S-1FL6 family, Siemens’ purpose-built servo motor line for the SINAMICS S210 single-axis servo drive platform. This unit delivers 3.5 Nm continuous torque at 3,000 rpm with a peak torque ceiling of 10.5 Nm, operating through a 22-bit single-turn absolute encoder integrated into a One-Cable Technology (OCT) interface. The motor is rated IP65, carries Class F insulation, and mounts on a 60 mm flange — making it a structurally compact, electrically precise actuator for high-cycle industrial motion axes.

Unlike general-purpose induction motors adapted for servo duty, the 1FL6 series is designed from the stator lamination stack outward for dynamic torque linearity. The rotor uses rare-earth permanent magnets arranged to minimize cogging torque, and the stator winding pitch is optimized for low harmonic distortion at the PWM switching frequencies generated by the S210 drive’s 62.5 µs current control cycle. The result is a torque ripple figure that remains below 2% of rated torque across the full speed range — a parameter that directly determines positioning repeatability on ballscrew and rack-and-pinion axes.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1FL6044-1AF61-2AA1 implements several hardware-level design decisions that distinguish it from commodity servo motors in the same torque class.

One-Cable Technology (OCT) Signal Architecture: Conventional servo systems route motor power (3-phase, PE) and encoder feedback (differential RS-485 or EnDat 2.2) through separate cable runs, each requiring independent connectors at both the motor and drive ends. OCT consolidates these into a single hybrid cable carrying U/V/W power conductors, a 24 V DC encoder supply rail, and a bidirectional serial data channel — all within one shielded jacket. The encoder data channel uses a proprietary Siemens serial protocol operating at 100 Mbit/s, transmitting absolute position, temperature, and motor identification data (electronic nameplate) on every drive scan cycle. This eliminates the encoder M23 connector as a failure point and reduces cable tray fill by approximately 40% on multi-axis installations.

22-Bit Absolute Encoder Resolution: At 4,194,304 counts per revolution, the encoder provides a native angular resolution of 0.31 arc-seconds. On a 5 mm pitch ballscrew with a 1:1 coupling, this translates to a theoretical linear resolution of 1.19 nm per count — well below the mechanical compliance limit of any practical ballscrew assembly. The absolute single-turn architecture means the drive retains position reference through power cycling without a homing sequence, reducing machine restart time and eliminating the risk of homing-sequence errors on vertical or gravity-loaded axes.

EMC Design and Shielding: The motor housing is die-cast aluminum with a continuous conductive path from the cable shield termination at the connector backshell to the motor frame ground lug. The OCT cable shield is terminated at both ends — at the motor connector and at the S210 drive’s cable shield clamp — creating a low-impedance return path for high-frequency common-mode currents generated by the drive’s IGBT switching. This topology suppresses conducted emissions in the 150 kHz–30 MHz band and reduces bearing current risk by maintaining shaft-to-frame impedance below 1 Ω at 1 MHz.

Stator Thermal Management: Class F insulation (155 °C rated) with a natural convection cooling jacket provides a 55 °C thermal margin above the 100 °C winding temperature typically reached at continuous rated torque in a 40 °C ambient. The motor’s thermal model is embedded in the S210 drive firmware as an I²t integrator, triggering a torque derating ramp at 90% of the thermal limit rather than a hard fault — preserving machine uptime during transient overload conditions.

Rotor Inertia and Dynamic Response: The 0.57 × 10⁻³ kg·m² rotor inertia figure is the primary determinant of the motor’s acceleration capability. At peak torque (10.5 Nm), the unloaded motor accelerates at α = T/J = 10.5 / 0.00057 ≈ 18,421 rad/s² — equivalent to reaching 3,000 rpm in approximately 17 ms. In practice, the load inertia ratio (J_load / J_motor) should be kept below 10:1 for stable velocity loop operation without gain reduction; the 1FL6044 is well-suited to direct-drive or low-ratio gearbox configurations where this ratio is achievable.

System Integration Benefits

• Automatic Motor Identification: The electronic nameplate transmitted via OCT allows the SINAMICS S210 drive to auto-configure all motor parameters (rated current, pole pairs, encoder resolution, thermal model coefficients) on first power-up. No manual parameter entry is required, eliminating commissioning errors on multi-axis machines.
• Deterministic PROFINET IRT Compatibility: When the S210 drive is connected to a Siemens S7-1500 or S7-1200 controller via PROFINET IRT, the isochronous real-time cycle (as low as 250 µs) synchronizes the position setpoint update rate with the drive’s current control cycle, eliminating jitter-induced velocity ripple on coordinated multi-axis paths.
• Integrated Diagnostic Transparency: The motor continuously reports winding temperature, encoder status, and cumulative operating hours to the drive via the OCT data channel. These values are accessible in the S210’s parameter set (r0035, r0037, r0039) and can be forwarded to the PLC via PROFINET for predictive maintenance scheduling without additional sensor wiring.
• Single-Axis Drive Scalability: The SINAMICS S210 is a standalone single-axis drive with an integrated line filter and braking resistor. Multiple S210 units can be mounted side-by-side on a DIN rail without a shared DC bus, simplifying cabinet layout for machines with 2–8 independent axes and eliminating the need for a central infeed module.
• Reduced Cabinet Wiring Complexity: OCT eliminates the encoder cable, encoder connector, and encoder terminal block from the cabinet BOM. On a 6-axis machine, this removes 6 M23 connectors, 6 cable glands, and approximately 30 m of encoder cable — reducing assembly labor and long-term connector maintenance.
• IP65 Environmental Sealing: The motor body and connector interface are sealed to IP65, permitting installation in environments with coolant mist, cutting fluid splash, and airborne particulate without an additional protective enclosure. The shaft end is rated IP64, requiring a standard radial shaft seal on the gearbox or coupling housing if the application involves direct fluid immersion.
• Vibration-Qualified for Press-Adjacent Installations: The 50 m/s² vibration rating (EN 60068-2-6) covers installations on stamping press frames, conveyor structures, and mobile gantry systems where structural vibration is transmitted to the motor mounting flange. Bearing preload and encoder mounting are validated to this level without degradation of position accuracy.
• Compact 60 mm Flange for Dense Multi-Axis Configurations: The IEC 72-1 B5 60 mm flange allows center-to-center axis spacing as low as 80 mm in parallel-axis gantry configurations, enabling high-density motion architectures in semiconductor handling, PCB assembly, and laboratory automation equipment.

Quality Assurance & Global Logistics

Every 1FL6044-1AF61-2AA1 unit dispatched from our Xiamen facility is a genuine Siemens OEM product sourced through verified industrial supply channels. The MLFB code on each unit is cross-referenced against the Siemens Industry Mall database prior to packing. The factory holographic security label, original Siemens carton, and batch/date code label are preserved intact through the entire handling chain.

Pre-shipment inspection protocol includes: insulation resistance measurement (IR test at 500 V DC, minimum 100 MΩ), shaft runout check (TIR ≤ 0.02 mm at flange face), and OCT encoder communication handshake verification with a SINAMICS S210 test drive. Units that do not pass all three checks are quarantined and not dispatched.

Shipment is handled via DHL Express, FedEx International Priority, or UPS Worldwide Express from Xiamen Gaoqi International Airport. Transit time to major industrial hubs: Germany (Frankfurt) 3–4 days; USA (Chicago, Los Angeles) 3–5 days; Japan (Tokyo) 2–3 days; Southeast Asia 1–2 days. Sea freight consolidation is available for orders exceeding 50 kg. Export documentation — commercial invoice, packing list, certificate of origin, and HS code 8501.52 classification — is prepared in compliance with Chinese customs regulations and destination country import requirements. All units carry a 12-month operational warranty from the date of shipment.
