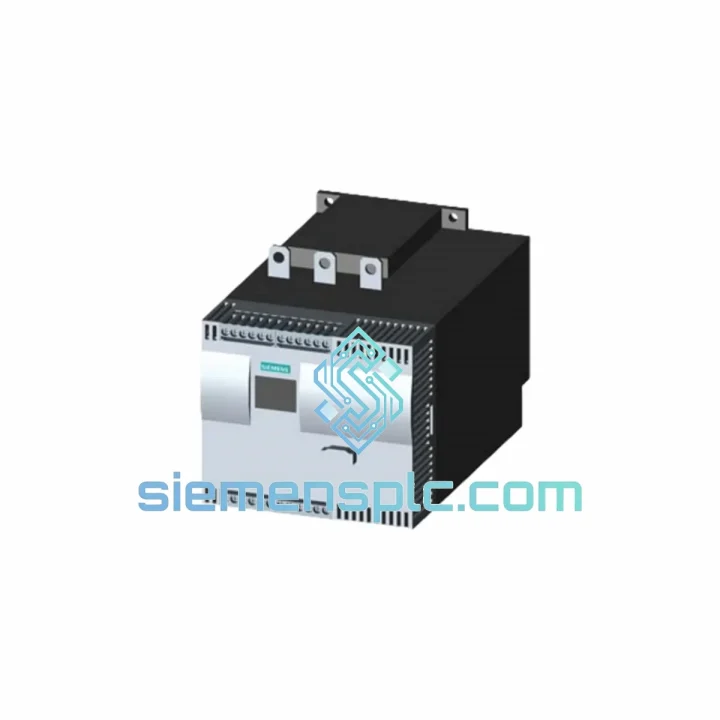

Siemens 3RW4435-6BC44 Soft Starter – SIRIUS 3RW44

Siemens 3RW4435-6BC44 — 160 A Thyristor-Based Soft Starter with Integrated Bypass and PROFIBUS DP Interface

The Siemens 3RW4435-6BC44 belongs to the SIRIUS 3RW44 soft starter family, a product line engineered for controlled three-phase induction motor starting in process-critical industrial installations. Rated at 160 A continuous current with a motor power envelope of 90 kW at 400 V AC, this device manages the voltage ramp applied to the motor stator during acceleration and deceleration phases, directly limiting the mechanical torque impulse and the thermal stress imposed on the motor windings and connected drivetrain components.

Unlike simple star-delta starters that produce a torque step at transition, the 3RW4435-6BC44 applies a continuously adjustable voltage ramp via phase-angle control of six anti-parallel thyristor pairs — one pair per phase half-cycle. This architecture eliminates the current discontinuity inherent in contactor-based switching schemes and allows the motor to accelerate along a smooth torque curve from a configurable starting voltage (typically 30–80% Un) up to full supply voltage over a programmable ramp time of 1 to 20 seconds.

The -6BC44 suffix encodes two critical hardware attributes: 110–230 V AC control voltage compatibility and an integrated PROFIBUS DP slave interface. This combination makes the unit directly addressable from any SIMATIC S7 PLC equipped with a DP master module (e.g., CP 342-5, CM 1542-5, or the integrated DP port on S7-300/400 CPUs), enabling full parameter read/write and real-time diagnostic access without additional communication gateways.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The power stage of the 3RW4435-6BC44 is built around six thyristor pairs arranged in an anti-parallel configuration across each of the three supply phases. Phase-angle firing control is executed by the onboard microcontroller, which calculates the precise gate trigger delay relative to the zero-crossing of each phase voltage. By advancing the firing angle progressively from near 180° (minimum conduction) toward 0° (full conduction) over the programmed ramp interval, the effective RMS voltage delivered to the motor stator rises smoothly, producing a corresponding smooth torque increase without current discontinuities.

Integrated Bypass Architecture: Once the motor reaches full speed (detected by current stabilization below a threshold), the internal bypass contactor closes across the thyristor pairs, short-circuiting them. This eliminates the continuous thyristor conduction losses (~1.5–2 V forward drop per device) during steady-state operation, reducing heat dissipation in the panel and extending thyristor service life. The bypass contactor is rated for the full 160 A operational current and is coordinated with the thyristor firing logic to ensure a break-before-make sequence that prevents shoot-through.

EMC Design: The 3RW44 series incorporates internal RC snubber networks across each thyristor pair to suppress dV/dt transients generated during commutation. The control electronics are housed on a separate PCB with optical isolation between the gate drive circuits and the microcontroller logic, providing a galvanic barrier of ≥ 2.5 kV between the power and signal domains. This isolation architecture meets the requirements of IEC 61000-4-5 (surge immunity, 2 kV line-to-earth) and IEC 61000-4-4 (electrical fast transient, 2 kV).

PROFIBUS DP Slave Interface: The integrated DP interface uses a dedicated ASIC (application-specific integrated circuit) for protocol handling, offloading communication processing from the main control microcontroller. The DP slave supports GSD file-based configuration in STEP 7 / TIA Portal, exposing a standardized process data object (PDO) structure: output word (control bits + setpoint) and input word (status bits + actual current value). Diagnostic data — including phase failure, overtemperature, motor thermistor fault, and bypass contactor status — are mapped to the DP diagnostic frame and readable by the PLC without polling overhead.

Thermal Management: The thyristor assembly is mounted on an aluminum heat sink with forced-air cooling provisions. An internal NTC thermistor monitors heat sink temperature and triggers a pre-alarm at 80 °C and a shutdown at 90 °C, protecting the thyristors from thermal runaway under sustained overload or blocked-ventilation conditions. The current derating curve above 40 °C ambient follows a linear slope of approximately 2.5 A/°C, reaching ~110 A at 60 °C.

System Integration Benefits

• Elimination of inrush current peaks: Phase-angle control limits starting current to the configured ceiling (200–600% Ie), preventing voltage dips on shared busbars that would otherwise affect adjacent drives and instrumentation.
• Mechanical drivetrain protection: Smooth torque ramp reduces peak shaft torque during acceleration to approximately 1.5–2× rated torque, compared to 6–8× for direct-on-line starting, extending coupling, gearbox, and belt service intervals.
• Integrated bypass eliminates external contactor BOM: The onboard bypass contactor removes the need for a separately wired external bypass, reducing panel wiring complexity, terminal count, and potential failure points.
• PROFIBUS DP integration enables centralized diagnostics: All fault states, current values, and operating hours are accessible via the DP data frame in real time, allowing SCADA systems to log motor health data without additional transducers or analog I/O channels.
• Motor thermistor input eliminates external thermal relay: The TF/TH input accepts PTC or NTC thermistors embedded in the motor windings, providing direct winding temperature protection without an external relay module or additional wiring tier.
• Pump stop function prevents water hammer: The configurable soft-stop ramp decelerates the motor over 0–20 seconds, allowing pump discharge pressure to decay gradually and eliminating the pressure wave that causes pipe joint fatigue in liquid-handling systems.
• Wide supply voltage range reduces SKU proliferation: The 200–480 V AC main circuit range covers 230 V, 380 V, 400 V, and 460 V grid standards on a single part number, simplifying global spare parts inventory management.
• DIP-switch standalone operation: Core parameters (starting voltage, ramp time, current limit) are configurable via onboard DIP switches without a laptop or programming tool, enabling commissioning in field environments without network connectivity.
• Coordinated protection with SIRIUS circuit breakers: The 3RW4435-6BC44 is type-tested in coordination with Siemens 3RV and 3VL circuit breakers, providing documented Type 2 coordination per IEC 60947-4-2 — eliminating the need for individual coordination calculations during panel design.

Quality Assurance & Global Logistics

Every Siemens 3RW4435-6BC44 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Visual inspection confirms label authenticity, article number, date code, and the absence of physical damage or counterfeit indicators. Functional verification includes control circuit power-on, self-diagnostic routine completion, and PROFIBUS DP address response confirmation where test infrastructure permits. Units are shipped in original Siemens packaging with desiccant and anti-static protection.

Our Xiamen location provides direct access to major international freight hubs, enabling DHL Express, FedEx International Priority, and UPS Worldwide Express delivery to Europe, North America, Southeast Asia, and the Middle East within 3–7 business days for in-stock items. Sea freight consolidation is available for volume orders. All shipments include a commercial invoice, packing list, and certificate of conformance. A 12-month warranty against manufacturing defects is provided from the date of shipment, covering component failure under normal operating conditions.
