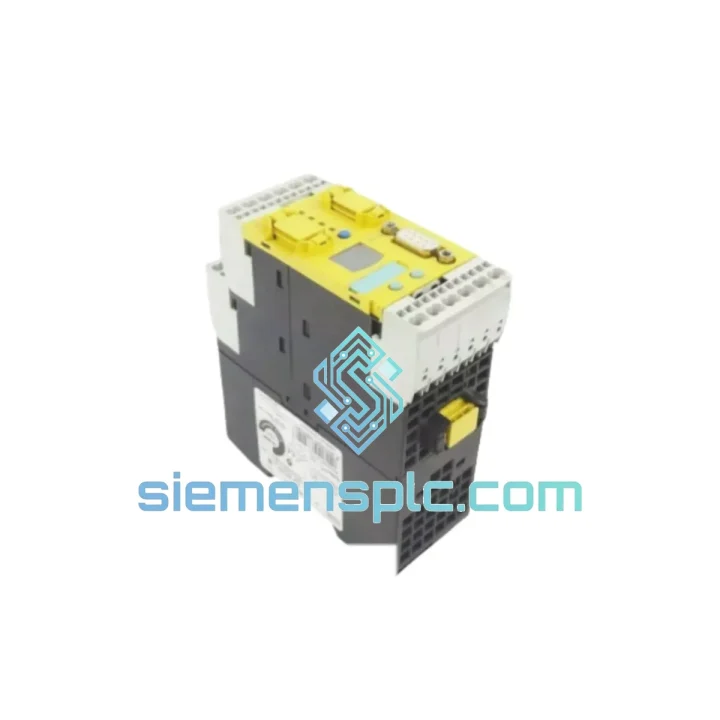

Siemens 3RK3141-2CD10 Safety Gateway – SIRIUS AS-Interface

Siemens 3RK3141-2CD10: DP/AS-Interface F-Link Gateway in Mixed Safety-Standard Topologies

The 3RK3141-2CD10 belongs to Siemens’ SIRIUS Safety Integrated 3RK3 series and functions as a dual-role network node: it operates simultaneously as a Profibus DP slave toward the upper control layer and as an AS-Interface V3.0 master toward the field device layer. This architecture allows a single module to arbitrate safety-critical signals from AS-i safety slaves and standard process signals from conventional AS-i slaves, forwarding both data sets to the Profibus DP master within a deterministic cycle. The gateway is certified to IEC 62061 SIL 3 and EN ISO 13849-1 Performance Level e, Category 4 — the highest functional safety ratings applicable to machine and process safety systems.

Unlike gateway designs that segregate safety and standard AS-i traffic onto separate hardware, the 3RK3141-2CD10 handles up to 31 AS-i safety slaves (addresses 1–31) and 62 standard slaves (A/B extended addressing) on a single AS-i segment. This consolidation directly reduces panel hardware count, wiring complexity, and the number of Profibus DP node addresses consumed per safety zone. For system integrators working on Siemens S7-300, S7-400, or S7-1500 platforms, the module integrates via the standard GSD file (SIEM80C3.GSD) without requiring additional safety function blocks at the PLC level for gateway-side signal validation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3RK3141-2CD10 implements a dual-channel internal safety logic architecture consistent with Category 4 / PL e requirements. Each AS-i safety slave transmits a 4-bit safety code sequence per AS-i cycle (5 ms per slave address). The gateway’s onboard safety processor validates these code sequences against a stored reference pattern using a cross-comparison mechanism — any deviation triggers a safe-state output to the Profibus DP master within the guaranteed response window.

AS-i Bus Arbitration: The module acts as the sole AS-i master on the segment, executing the AS-i master profile M4 (extended addressing). It polls all configured slave addresses sequentially within a single AS-i cycle of approximately 5 ms × N (where N = number of active slaves). Safety slave data is extracted from the standard AS-i telegram structure using the S@W bit encoding defined in IEC 62026-2, without requiring a separate safety cable or additional wiring layer.

EMC Design: The module’s PCB layout incorporates galvanic isolation between the AS-i field side and the Profibus DP interface, providing common-mode noise rejection for environments with high-frequency switching transients from variable-frequency drives (VFDs) and contactors. The AS-i cable itself acts as a combined power and data medium at 167 kbps, with the module’s input filter suppressing conducted interference above the AS-i data band. Compliance with EN 61000-6-2 (industrial immunity) and EN 61000-6-4 (industrial emissions) is certified.

Profibus DP Slave Interface: On the upper side, the module presents a fixed DP slave address (set via rotary switches on the housing) and a defined GSD-based I/O configuration. Safety process data is mapped into the DP input data area as structured byte arrays, allowing the S7 CPU to read safety status without executing any gateway-specific function blocks. Standard AS-i slave data occupies a separate byte range in the same DP telegram, enabling the PLC program to handle both safety and standard field data within a single DP cycle.

Diagnostic Architecture: The gateway maintains an internal diagnostic register accessible via Profibus DP Class 2 services (DP V1 acyclic read). This register records AS-i slave address conflicts, missing slaves, safety code errors, and bus power faults with timestamp resolution. LED indicators on the front panel provide immediate visual status: PWR (bus power), RUN (AS-i master active), ERR (AS-i fault), and DP (Profibus DP communication status).

System Integration Benefits

• Single-segment mixed topology: Safety and standard AS-i slaves coexist on one AS-i cable, eliminating the need for a second gateway or a dedicated safety AS-i segment in most machine layouts.
• No separate 24 V DC supply for gateway: The module draws operating power directly from the AS-i bus (≤ 200 mA), reducing terminal block count and simplifying cabinet wiring documentation.
• Deterministic safety response: Worst-case safety reaction time of ≤ 40 ms for a fully loaded 31-slave segment is documented and certifiable, supporting SIL 3 / PL e safety function calculations per IEC 62061 and EN ISO 13849.
• GSD-based PLC integration: Standard GSD file import into STEP 7 or TIA Portal hardware configuration eliminates manual DP slave parameterization; I/O mapping is automatically generated.
• Profibus DP V1 acyclic diagnostics: Detailed fault data (slave address, error type, timestamp) is retrievable by the PLC or SCADA system without interrupting cyclic DP communication, enabling predictive maintenance workflows.
• Scalable safety zone architecture: Multiple 3RK3141-2CD10 units can be deployed on the same Profibus DP network, each managing an independent AS-i safety zone, with each gateway consuming a single DP node address.
• Compatibility with third-party AS-i safety slaves: The S@W protocol implementation is interoperable with any AS-i Safety at Work certified slave from any manufacturer, not limited to Siemens SIRIUS devices.
• Compact 45 mm DIN-rail footprint: Panel space consumption is 45 mm width per safety zone gateway, enabling high-density safety architectures in space-constrained enclosures.
• Firmware-free field operation: The gateway requires no firmware update for standard operation after installation; address assignment and diagnostics are handled via AS-i Control Tools or SIMATIC PDM without taking the gateway offline.
• Long-term platform availability: The 3RK3 series is part of Siemens’ SIRIUS Safety Integrated roadmap with documented spare parts availability, reducing lifecycle risk for long-running production lines.

Quality Assurance & Global Logistics

Every 3RK3141-2CD10 unit shipped from siemensplc.com is sourced as genuine Siemens OEM hardware. Incoming inspection covers MLFB label verification, holographic seal integrity, date code cross-reference, and a functional power-on check. Units that do not pass authentication are quarantined and excluded from inventory. Original Siemens packaging is preserved where available; certificates of conformity and test documentation are provided upon request for OEM and EPC project procurement requirements.

Logistics operations are based in Xiamen, China, with direct access to international express carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation — commercial invoice, packing list, and HS code 8536.49 declaration — is prepared for each shipment to support customs clearance in the EU, North America, Southeast Asia, and the Middle East. Transit times to major industrial hubs typically range from 3 to 7 business days depending on destination and carrier selection. For urgent project requirements, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.

A 12-month warranty from the date of shipment covers manufacturing defects and verified functional failures under normal operating conditions. Warranty claims are processed with full traceability back to the original unit serial number and inspection record.
