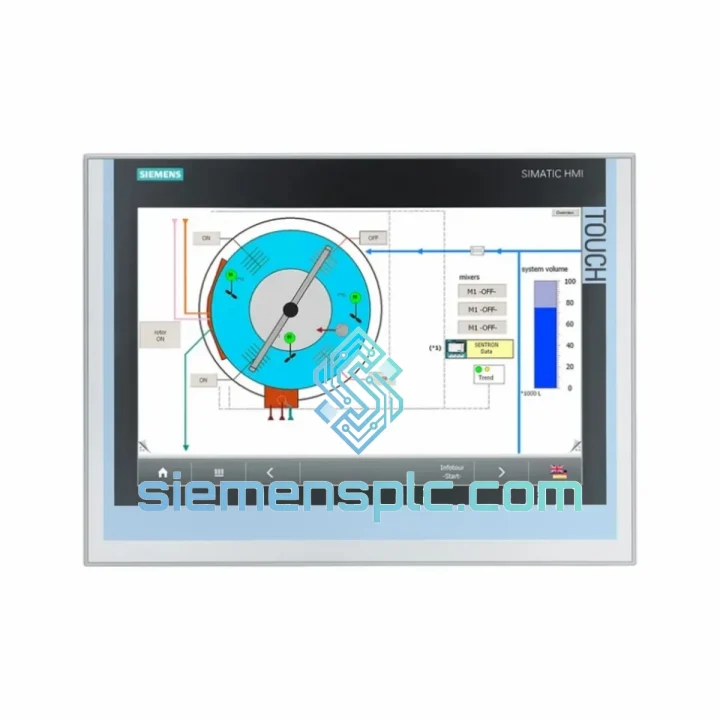

Siemens 6AV7240-7LC07-0HA3 HMI Panel PC – SIMATIC 477B

Siemens 6AV7240-7LC07-0HA3 — Panel PC 477B in Process Visualization and Distributed Control Architectures

The Siemens 6AV7240-7LC07-0HA3 is a panel-mount industrial PC belonging to the SIMATIC HMI Panel PC 477B platform — a product line engineered specifically for operator-level process interaction in continuous and batch manufacturing environments. Unlike general-purpose embedded PCs adapted for industrial use, the 477B series was designed from the ground up to satisfy the deterministic display refresh, thermal management, and EMC immunity requirements of IEC 61131-compliant control systems.

In a typical distributed control architecture, the Panel PC 477B occupies the HMI tier between the field-level PLC (e.g., SIMATIC S7-1500 or S7-400) and the supervisory SCADA layer. It executes WinCC Runtime or WinCC flexible locally, maintaining operator visibility and alarm management even during upstream network interruptions — a critical design consideration for safety-instrumented systems where loss of HMI access must not propagate to a process shutdown.

The 6AV7240-7LC07-0HA3 variant is characterized by its 15-inch widescreen TFT display configuration, fanless or low-noise thermal design, and front-panel IP65 ingress protection — making it suitable for direct installation in control cabinet doors exposed to coolant mist, airborne particulates, and high-pressure washdown in food processing or pharmaceutical environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The Panel PC 477B platform separates itself from standard embedded PCs through several hardware-level design decisions that directly affect reliability in industrial deployments.

Thermal Architecture: The 477B employs a heat-spreader chassis design where the CPU thermal load is conducted through the aluminum rear housing rather than relying on internal forced-air circulation. This eliminates the primary failure mode of fan-bearing degradation in dusty environments. The thermal path is engineered for a maximum ambient of 50 °C at full CPU load, with a thermal margin that accommodates cabinet interior temperatures typically 10–15 °C above ambient.

EMC Shielding and Ground Plane Design: The front bezel and rear chassis form a continuous Faraday enclosure. The touchscreen controller and display driver boards are mounted on a common ground plane bonded to the chassis at multiple points, suppressing common-mode noise coupling from adjacent variable-frequency drives (VFDs) and servo amplifiers — sources of conducted and radiated interference in the 150 kHz–30 MHz range that are endemic to machine tool and process plant environments. The unit meets EN 61000-6-2 Class A immunity, including 10 V/m radiated field immunity per IEC 61000-4-3.

MPI/PROFIBUS Serial Interface: The onboard RS-485 port supports MPI (Multi-Point Interface) at 187.5 kbps and PROFIBUS DP at up to 12 Mbps. The physical layer uses differential signaling with ±15 kV ESD protection on the bus lines, allowing direct connection to PROFIBUS segments without an external repeater in most cabinet configurations. This is significant in retrofit applications where the Panel PC replaces an older OP/TP panel that communicated via MPI.

Dual Ethernet Architecture: Two independent Ethernet controllers allow simultaneous connection to the plant PROFINET network and an isolated office/IT network — a topology required in IEC 62443-compliant segmented architectures where HMI devices must bridge the OT/IT boundary without creating a single-point routing path between network zones.

Watchdog and Power-Fail Logic: The 477B incorporates a hardware watchdog timer independent of the OS scheduler. If the WinCC Runtime process fails to reset the watchdog within the configured interval (typically 60–120 seconds), the unit executes a controlled reboot sequence. Combined with UPS-backed 24 V DC supply, this ensures the HMI returns to the last-known operator screen within the reboot cycle time rather than requiring manual intervention.

System Integration Benefits

• Native TIA Portal and WinCC Compatibility: The 6AV7240-7LC07-0HA3 is fully supported in Siemens TIA Portal V13 SP2 and later, enabling unified engineering of PLC logic and HMI visualization in a single project environment. Tag synchronization between S7-1500 and WinCC Runtime is automatic, eliminating manual address mapping errors.
• PROFINET IRT Support via Ethernet Port: When connected to a PROFINET-capable switch (e.g., SCALANCE X series), the Panel PC participates in isochronous real-time (IRT) communication cycles, enabling synchronized data acquisition at sub-millisecond jitter — relevant for motion visualization and high-speed process trending.
• Alarm Management with S7 Diagnostic Integration: WinCC Runtime on the 477B natively reads S7 diagnostic buffers and module status via the S7 communication driver, surfacing hardware faults (e.g., I/O module short-circuit, CPU memory error) as structured alarm messages with timestamp and acknowledgment tracking — without requiring additional OPC server middleware.
• Recipe and Batch Data Management: The local HDD/CF storage supports WinCC recipe management with up to several thousand recipe records. Recipe download to PLC data blocks is executed via the WinCC Recipe view, with version control and audit trail logging for GMP-regulated processes.
• Trend and Historical Data Logging: WinCC Runtime supports cyclic and event-driven process value archiving to local SQL-compatible databases. Archive data is accessible via OPC DA/HDA interfaces for integration with MES or historian systems (e.g., OSIsoft PI, Wonderware Historian) without modifying the PLC program.
• Remote Access via SIMATIC Remote Desktop: The dual Ethernet configuration supports simultaneous local operator access and remote desktop sessions (RDP), enabling engineering staff to monitor or modify WinCC projects without physical access to the panel — reducing maintenance travel costs in geographically distributed plants.
• Scalable Screen Layout for Multi-Process Visualization: WinCC Runtime on the 477B supports faceplates, popup windows, and dynamic object linking, allowing a single operator screen to manage multiple process units through hierarchical navigation — reducing the number of physical HMI stations required per production area.
• Backward Compatibility with Legacy SIMATIC Networks: The MPI/PROFIBUS interface allows the 477B to replace end-of-life OP/TP panels (e.g., OP37, TP270) in existing S7-300/400 installations without modifying the PLC hardware or network topology, protecting the existing control system investment during phased modernization programs.

Quality Assurance & Global Logistics

Every Siemens 6AV7240-7LC07-0HA3 unit dispatched from our Xiamen, China facility undergoes a documented pre-shipment inspection protocol:

• Authenticity Verification: Label matrix codes, housing mold markings, and PCB revision stamps are cross-referenced against Siemens factory documentation to confirm genuine origin. Counterfeit screening is performed on every unit, not on a sampling basis.
• Power-On Functional Test: Each unit is powered at 24 V DC and verified to complete POST (Power-On Self-Test), display the BIOS/UEFI screen, and boot to the OS desktop. Display uniformity, touchscreen calibration, and all port functions (USB, Ethernet, serial) are verified.
• Cosmetic and Mechanical Inspection: Front bezel, touchscreen surface, connector housings, and mounting hardware are inspected under controlled lighting. Units with scratches penetrating the IP65 gasket seal or damaged connector pins are quarantined.
• Anti-Static Packaging: Units are individually bagged in conductive PE anti-static bags, placed in custom-cut EPE foam inserts, and packed in double-wall corrugated cartons rated for international air freight handling (ISTA 2A equivalent).
• 12-Month Warranty: All units carry a 12-month warranty from the shipment date covering manufacturing defects and functional failures under specified operating conditions. Warranty claims are processed with a target replacement or repair turnaround of 15 business days.
• Export Documentation: Full commercial invoice, packing list, certificate of origin (China), and HS code declaration (HS 8537.10) are provided for every shipment. DDP (Delivered Duty Paid) terms available for select destinations upon request.
• Logistics Partners: Standard shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Express from Xiamen Gaoqi International Airport (XMN), with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
Location: Xiamen, China
