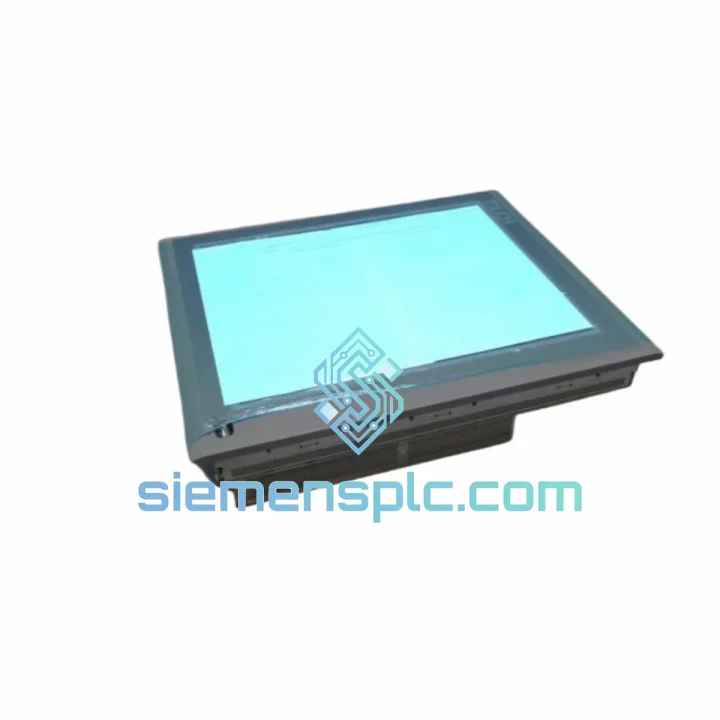

Siemens 6AV7422-2FD03-0AS0 SIMATIC Panel PC 15″ Touch HMI: Operator Interface Architecture for Deterministic Process Control

In a distributed automation architecture, the operator interface is not a peripheral — it is the primary data convergence point where process telemetry, alarm states, and control commands intersect in real time. The Siemens 6AV7422-2FD03-0AS0 is a SIMATIC Panel PC built for exactly this role: a ruggedized, x86-based computing platform with an integrated 15-inch touch display, designed to run WinCC Runtime or third-party SCADA software in environments where panel PCs face continuous thermal cycling, vibration loads, and electromagnetic interference from adjacent drive and switching equipment.

Unlike standard commercial-grade touch terminals, the 6AV7422-2FD03-0AS0 is engineered to IEC 61131 environmental classifications, with a front panel rated to IP65 for protection against dust ingress and directed water jets — a non-negotiable requirement in food processing, pharmaceutical manufacturing, and outdoor utility installations. The unit integrates directly into the SIMATIC ecosystem via PROFINET, enabling transparent communication with S7-1500, S7-300, and S7-400 PLCs without protocol conversion overhead.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6AV7422-2FD03-0AS0 is built on Siemens’ SIMATIC Panel PC 477B platform, which separates the computing subsystem from the display and I/O interface layer through a structured internal bus architecture. This separation is deliberate: it allows the x86 processor module to be replaced or upgraded independently of the display assembly, extending the serviceable life of the panel installation without requiring a full unit swap.

EMC Design: The chassis is constructed from die-cast aluminum with continuous conductive gaskets at all panel seams, providing a Faraday enclosure effect that attenuates radiated emissions and external field coupling. The 24 V DC power input stage incorporates an LC filter network to suppress conducted interference from switch-mode power supplies and variable frequency drives — equipment that routinely generates 150 kHz–30 MHz conducted noise on industrial DC bus rails. This filtering is not a software-configurable feature; it is a passive hardware characteristic that operates regardless of system state.

Thermal Management: The unit uses a fanless convection cooling design for the core logic board, eliminating the primary mechanical failure mode in panel PCs deployed in dusty environments. The processor operates within a thermally derated envelope that maintains junction temperatures below critical thresholds at ambient conditions up to 50 °C without active airflow. This is achieved through a copper heat spreader bonded directly to the processor package, conducting heat to the aluminum rear chassis which acts as a passive radiator.

Display Interface: The 15-inch TFT panel is driven via an LVDS (Low-Voltage Differential Signaling) link from the graphics controller, which provides inherent noise immunity over the internal cable run — a meaningful advantage over parallel RGB interfaces in environments with high-frequency switching noise. The resistive touch overlay uses a 4-wire analog matrix with a dedicated touch controller IC that performs coordinate filtering in hardware, delivering stable cursor positioning even when the operator is wearing gloves or the overlay surface has minor contamination.

Storage Subsystem: CompactFlash-based configurations eliminate rotational media, removing the single largest source of mechanical failure in panel PCs subjected to continuous vibration. The CF interface operates in True IDE mode, presenting a standard ATA block device to the operating system with no driver overhead. Write endurance is managed at the application layer through WinCC’s circular logging architecture, which distributes write cycles across the storage medium rather than concentrating them on fixed sectors.

System Integration Benefits

• Native PROFINET IRT Support: The dual Ethernet ports support PROFINET Isochronous Real-Time (IRT) communication, enabling cycle-synchronous data exchange with S7-1500 CPUs at update rates down to 250 µs — eliminating the jitter that characterizes standard TCP/IP polling architectures.
• TIA Portal Engineering Consistency: Hardware configuration, tag mapping, and screen project management are handled within a single TIA Portal project, removing the version mismatch risk that arises when HMI and PLC engineering tools are maintained separately.
• Integrated Alarm Management: WinCC Runtime on this platform supports IEC 62682-compliant alarm rationalization, with configurable alarm classes, acknowledgment workflows, and historian logging — providing the audit trail required in FDA 21 CFR Part 11 and NAMUR NE 107 environments.
• Redundant Network Path Capability: The two independent Ethernet interfaces can be configured for media redundancy (MRP) or separated into a PROFINET control network and a plant IT network, enforcing network segmentation without additional hardware.
• Diagnostic Transparency via STEP 7 / TIA: The panel reports its own hardware status (CPU load, storage health, network link state) to the SIMATIC diagnostic buffer, making panel PC health visible within the same engineering tool used to monitor PLC diagnostics.
• Scalable Visualization Architecture: WinCC Runtime on this platform supports OPC DA and OPC UA server functionality, allowing third-party SCADA systems, MES platforms, and historian servers to subscribe to process data without modifying the PLC program.
• Long-Term Spare Parts Availability: Siemens publishes product lifecycle roadmaps with defined end-of-sale and end-of-support dates. The SIMATIC Panel PC 477B platform has documented spare parts availability extending beyond the initial product sale period, reducing the capital risk of standardizing on this hardware in multi-site installations.
• Panel Cutout Standardization: The 6AV7422-2FD03-0AS0 uses a standardized panel cutout dimension compatible with other SIMATIC Panel PC 477 variants, allowing hardware generation upgrades without enclosure modification — a direct reduction in retrofit CAPEX.

Quality Assurance & Global Logistics

Every unit supplied through siemensplc.com is sourced from verified industrial channels with full part number and date code traceability. Physical inspection covers label authenticity, connector integrity, and packaging condition. Functional units are bench-verified for power-on behavior and communication interface response prior to dispatch.

Export documentation — commercial invoice, packing list, certificate of origin, and HS code classification (HS 8537.10 for programmable controllers and HMI panels) — is prepared for every international shipment, ensuring smooth customs clearance in EU, North American, Southeast Asian, and Middle Eastern jurisdictions.

Shipping from Xiamen, China: Xiamen Gaoqi International Airport and Xiamen Port provide direct freight access to major global hubs. DHL Express, FedEx International Priority, and SF International services deliver to most destinations within 3–7 business days. Sea freight consolidation is available for bulk orders. All units are packed in anti-static bags within double-wall corrugated cartons with foam inserts rated for the unit’s weight and fragility class.

A 12-month warranty covers hardware defects under normal operating conditions from the date of dispatch. Warranty claims are processed with a target response time of 2 business days. Replacement units are dispatched before defective returns in confirmed fault cases to minimize customer downtime.
