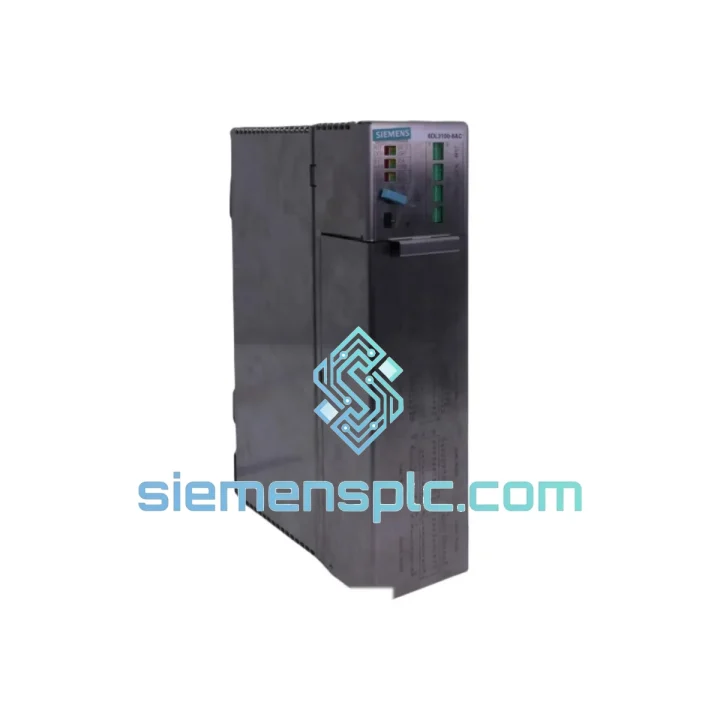

Siemens 6DL3100-8AC PLC Module – ET 200SP HA

Siemens 6DL3100-8AC: Virtual Controller Interface for ET 200SP HA High-Availability Distributed I/O

The Siemens 6DL3100-8AC is the virtual controller module (VCM) within the SIMATIC ET 200SP HA distributed I/O platform — a hardware tier engineered specifically for process industries where unplanned downtime carries direct financial and safety consequences. Unlike conventional I/O expansion modules, the 6DL3100-8AC occupies the controller-layer position within the ET 200SP HA station, acting as the execution and arbitration node between the PROFINET network backbone and the physical I/O modules mounted on the same HA base rail.

In a standard ET 200SP HA deployment, two 6DL3100-8AC modules are installed in a redundant pair configuration. Each module independently maintains a synchronized copy of the process image and control logic state. When a fault is detected on the active module — whether a hardware failure, firmware exception, or communication timeout — the standby module assumes control within the bumpless switchover window defined by the HA arbitration protocol, with no detectable process interruption at the field device level. This architecture satisfies the continuous availability requirements of SIL-rated process loops in oil and gas, chemical, and power generation facilities.

The module integrates natively with SIMATIC TIA Portal V16 and later, providing unified engineering access for logic programming (LAD, FBD, SCL, STL), online diagnostics, firmware updates, and hardware configuration. No third-party middleware or proprietary configuration tools are required. The ET 200SP HA backplane bus handles all inter-module communication at the station level, while PROFINET IRT (Isochronous Real-Time) manages deterministic data exchange with the upstream SIMATIC S7-400H or S7-1500H redundant controller.

From a procurement standpoint, the 6DL3100-8AC is a long-lifecycle Siemens component with established spare parts availability. Its virtual controller architecture reduces the hardware spare inventory burden compared to traditional CPU-based redundancy schemes, since the logic execution layer is abstracted from the physical module hardware. MRO teams and capital project engineers can standardize on a single module type for the controller tier across multiple ET 200SP HA stations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6DL3100-8AC implements a dual-execution architecture at the station level. Each VCM in the redundant pair maintains an independent process image update cycle synchronized via the ET 200SP HA backplane arbitration bus. The arbitration logic continuously compares the active and standby module states using a token-based protocol; divergence beyond a configurable threshold triggers an automatic switchover without issuing a STOP command to the field I/O modules.

From an EMC design perspective, the ET 200SP HA platform applies multi-layer shielding at the backplane connector interface, with galvanic isolation between the PROFINET physical layer and the internal logic bus. This isolation barrier prevents ground loop currents — common in large industrial installations with distributed earthing — from corrupting the backplane data path. The module’s internal power supply section uses a DC/DC converter topology with common-mode choke filtering, attenuating conducted emissions in the 150 kHz–30 MHz band to comply with EN 55011 Class A limits.

The virtual controller execution model decouples the control logic cycle from the physical hardware interrupt latency. Logic scan cycles are managed by a software scheduler within the VCM firmware, allowing deterministic cycle times independent of the number of I/O modules installed in the station. This is architecturally distinct from traditional rack-based CPUs where backplane scan time scales linearly with module count. The result is a more predictable worst-case cycle time budget for time-critical control loops, particularly relevant in turbine governor and compressor surge control applications.

Firmware integrity is maintained through a secure boot sequence that validates the firmware image checksum against a stored reference value before the module enters RUN mode. Any firmware corruption detected during boot causes the module to assert a hardware fault signal on the backplane, triggering immediate switchover to the standby VCM without process interruption.

System Integration Benefits

• Bumpless Redundancy Switchover: Active/standby VCM pair executes switchover within the PROFINET IRT cycle window, eliminating detectable process disturbances at the field device level during single-fault events.
• Deterministic Cycle Time: Software-scheduled execution model maintains consistent scan cycle times regardless of station I/O module count, supporting tight loop closure requirements in process control applications.
• Unified TIA Portal Engineering: Single engineering environment covers logic programming, hardware configuration, online diagnostics, and firmware management — eliminating tool fragmentation across the project lifecycle.
• PROFINET IRT Integration: Isochronous Real-Time PROFINET communication provides sub-millisecond jitter on process data exchange between the ET 200SP HA station and the upstream redundant S7 controller.
• Transparent Online Diagnostics: Module-level and channel-level diagnostic data is accessible in real time via TIA Portal without interrupting the running process, enabling predictive maintenance workflows.
• Reduced Spare Parts Inventory: Virtual controller abstraction standardizes the controller-tier hardware across multiple ET 200SP HA stations, simplifying MRO spare strategy and reducing warehouse carrying costs.
• Scalable Station Architecture: ET 200SP HA base rail supports incremental I/O module addition without requiring VCM replacement or station reconfiguration, protecting capital investment across plant expansion phases.
• SIL-Compatible Platform: ET 200SP HA architecture supports safety-rated configurations in conjunction with Siemens F-modules, enabling integration of safety and standard control within a single station footprint.
• Firmware Integrity Verification: Secure boot checksum validation on every power cycle ensures the VCM only enters RUN mode with a verified firmware image, reducing the risk of corrupted-firmware-induced process trips.
• Long Lifecycle Availability: Siemens ET 200SP HA platform carries an extended product lifecycle commitment, providing procurement certainty for capital projects with 15–25 year operational horizons.

Quality Assurance & Global Logistics

Every 6DL3100-8AC unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full traceability to Siemens AG manufacturing. Prior to dispatch from our Xiamen, China facility, each module undergoes a structured incoming inspection protocol: holographic label verification, serial number cross-reference against Siemens product databases, physical connector and housing integrity check, and original packaging confirmation. Units that do not pass all inspection criteria are quarantined and not offered for sale.

Xiamen’s geographic position as a major South China logistics hub provides direct access to DHL Express, FedEx International Priority, and SF Express international services. Standard international shipments reach Southeast Asia within 2–3 business days, Europe within 3–5 business days, and North America within 4–6 business days from dispatch. All shipments include full commercial invoice documentation, packing list, and certificate of origin where required for customs clearance. Export classification and HS code documentation are prepared in compliance with Chinese customs regulations and destination country import requirements.

A 12-month warranty against manufacturing defects is provided on all genuine Siemens modules. Warranty claims are processed through our Xiamen technical team, with replacement or repair options evaluated on a case-by-case basis. Traceability records are retained for the warranty period to support any audit or compliance requirement from the end customer.
