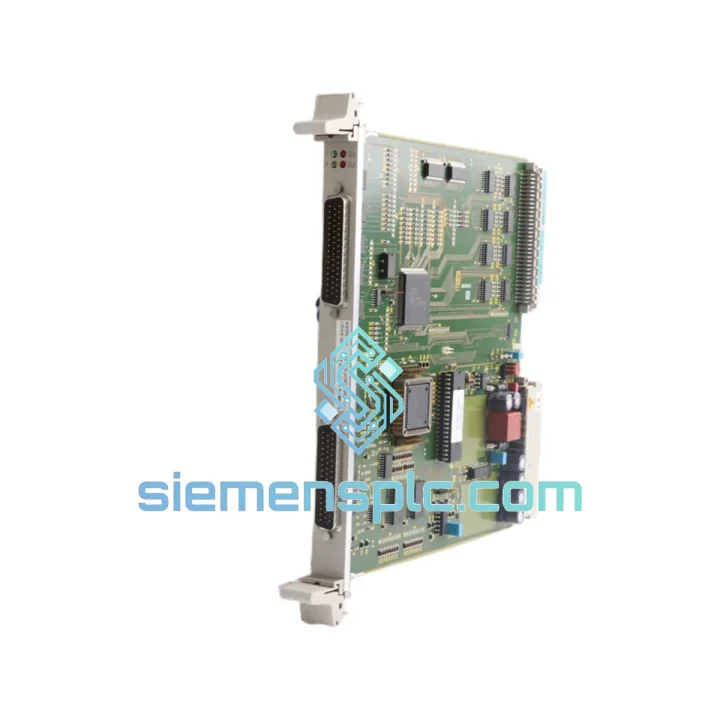

Siemens 6DP1614-8BB IM614 Interface Module

Siemens 6DP1614-8BB IM614 — Stop the Clock on Your Downtime

Every minute your line sits idle, the losses compound. A failed IM614 interface module in your SIMATIC S5 rack doesn’t just halt one machine — it can cascade across an entire production cell. We stock the Siemens 6DP1614-8BB precisely for this scenario: same-day dispatch, verified original hardware, zero guesswork on compatibility. While your maintenance team is still diagnosing the fault, your replacement is already moving.

This is not a compatible substitute. This is not a clone. This is the genuine Siemens 6DP1614-8BB IM614 — the exact module your S5 rack expects to see on the SINEC H1 bus.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The IM614 is a deceptively simple card — but get the swap wrong and you’ll spend another two hours chasing a ghost fault. Here’s what actually matters on the bench:

Common failure signatures for 6DP1614-8BB:

• BF LED solid red on CP 1430: The IM614 has lost its SINEC H1 token. Check the coaxial BNC terminator resistors (50 Ω) at both ends of the bus segment first — a missing terminator kills the entire segment, not just one node.
• Intermittent SF on the CPU: Often caused by a cracked solder joint on the IM614’s AUI transceiver connector. Reseat the module firmly; if the fault clears momentarily then returns, the card is failing and needs replacement.
• Station address conflict (duplicate node): The IM614 does not auto-address. The station address is set via the rotary hex switches on the module face (SW1 = tens digit, SW2 = units digit). Verify the address matches your STEP 5 hardware configuration exactly — a mismatch causes the CPU to go into STOP with OB 85 called.
• Module not recognized after hot insertion: The S5 rack does not support hot-swap on this slot. Always power down the rack before seating or removing the IM614. Failure to do so can corrupt the backplane bus and damage adjacent modules.

Replacement procedure (field-tested sequence):

1. Document the current rotary switch positions on the failed module before removal — photograph them.
2. Power down the S5 rack completely. Do not rely on the CPU STOP state alone.
3. Discharge any residual bus voltage by waiting 30 seconds after power-off.
4. Set the replacement 6DP1614-8BB rotary switches to match the documented address before insertion.
5. Seat the module firmly until the front panel latch clicks. A partially seated IM614 will cause intermittent bus errors that are extremely difficult to trace.
6. Power up the rack and observe the IM614 LED sequence: green RUN should illuminate within 5 seconds of bus token acquisition. If BF remains lit, recheck termination and address settings.
7. In STEP 5, run a SINEC H1 bus test (COM PROFIBUS or equivalent tool) to confirm the node is visible and communicating at the correct address.

Firmware note: The 6DP1614-8BB is a hardware-only module with no field-upgradeable firmware. Compatibility is determined entirely by the STEP 5 hardware configuration file (*.S5D). Ensure your HW config reflects the correct module type in the designated slot.

Reliability in Harsh Conditions

Industrial floors are not server rooms. The 6DP1614-8BB was engineered for environments where temperature swings, vibration, and humidity are daily realities — not edge cases.

• Operating temperature range: 0 °C to +60 °C continuous, with short-term tolerance to +70 °C in forced-air configurations. The module’s conformal-coated PCB resists condensation in high-humidity environments (up to 95% RH non-condensing).
• Vibration resistance: Designed to IEC 68-2-6 standards, the IM614 withstands sinusoidal vibration up to 10–57 Hz at 0.075 mm amplitude — relevant for installations near heavy presses, compressors, or conveyor drives.
• EMC hardening: The module’s shielded housing and filtered power input suppress conducted and radiated interference common in motor-drive-heavy environments. Proper grounding of the rack PE rail remains essential — a floating rack ground is the single most common cause of unexplained SINEC H1 communication errors in the field.
• Shock tolerance: Rated to IEC 68-2-27 for half-sine shock pulses, making it suitable for mobile or skid-mounted control panels subject to transport vibration.
• Long-term storage: Surplus-new units in our stock are stored in ESD-controlled, climate-regulated conditions. Each module is individually bagged with desiccant and inspected before dispatch to ensure no storage-related degradation.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. When you confirm an order before 14:00 CST, the module ships the same business day.

• DHL Express Worldwide: Typical transit 1–3 business days to Europe, North America, Southeast Asia, and the Middle East. Real-time tracking from pickup to delivery.
• FedEx International Priority: Alternative carrier for destinations where FedEx has stronger last-mile coverage. Comparable transit times to DHL.
• Export documentation: Every shipment includes a commercial invoice, packing list, and HS code declaration (HS 8537.10) — ready for customs clearance without delays.
• ESD-safe packaging: The 6DP1614-8BB ships in anti-static bags inside rigid foam-lined cartons. The module arrives in the same condition it left our warehouse.
• Bulk orders: For quantities of 3 or more units, contact us for consolidated shipping options and volume pricing. We can also arrange sea freight for non-urgent large-volume procurement.

We understand that when you’re ordering an emergency replacement, tracking visibility matters as much as speed. You’ll receive a tracking number within 2 hours of dispatch confirmation.
