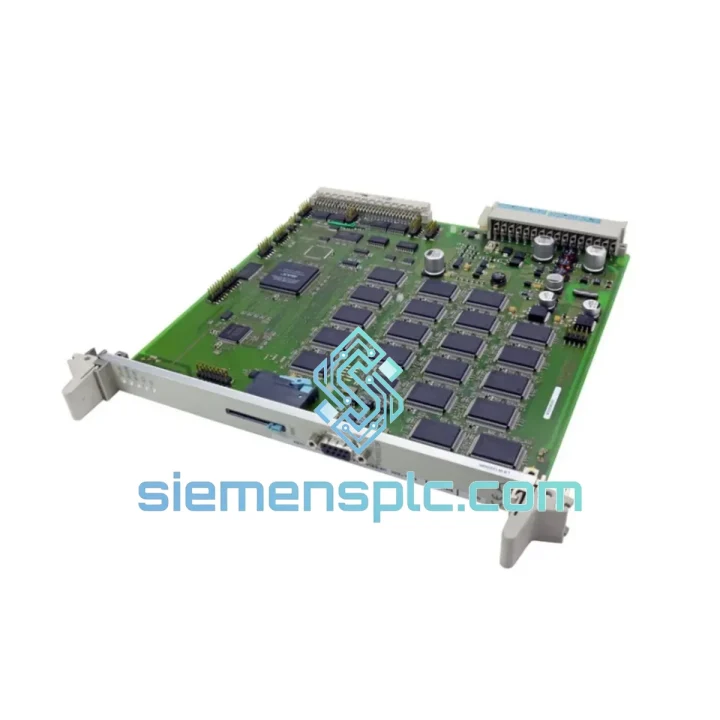

Siemens 6DP1616-8AA Interface Module

Siemens 6DP1616-8AA — Stop the Clock on Your Downtime. Ship Today.

Every minute your line is down, you’re bleeding money. The Siemens 6DP1616-8AA SINEC Interface Module is a hard-to-source legacy card that sits at the nerve center of your S5 communication architecture — and when it fails, nothing moves. We stock it. We ship it fast. From Xiamen to your plant floor via DHL or FedEx Express, typically within 24–72 hours of order confirmation.

This is not a listing page. This is your recovery plan.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 6DP1616-8AA is not plug-and-play if you skip the checklist. Here’s what ten years of field calls have taught:

1. Confirm the Fault Before You Pull the Card
Don’t assume the interface module is the culprit just because comms dropped. Check the S5 CPU’s SF (System Fault) LED first. If it’s solid red with no BUS FAULT on the CP, the issue may be upstream — a broken SINEC H1 coax terminator or a failed AUI transceiver. Swap those first; they’re cheaper and faster.

2. Slot Address / DIP Switch Configuration
The 6DP1616-8AA uses onboard DIP switches (S1) to set the module’s station address on the SINEC H1 bus. Before removing the failed card, photograph or document the existing switch positions. A mismatch after replacement will cause the CPU to throw a BUS ERROR fault and refuse to enter RUN mode. Station addresses must be unique across the entire network segment — verify against your network topology diagram.

3. Firmware / Hardware Revision Matching
Siemens released multiple hardware revisions of this card. The suffix variants (e.g., -8AA vs -8AB) carry different firmware ROMs. In most S5-135U and S5-155U installations, the -8AA and -8AB are interchangeable at the hardware level, but STEP 5 may flag a hardware mismatch warning during online diagnostics. This is typically non-critical, but document it for your maintenance log. If your system runs a tightly version-controlled STEP 5 project, request the exact revision from us before ordering.

4. Power Cycle Sequence After Replacement
Do not hot-swap this card. The S5 backplane does not support live insertion for communication modules. Proper sequence: CPU to STOP → power down the rack → swap the card → power up → CPU to RUN. Skipping the STOP step risks corrupting the CPU’s internal communication tables, which requires a full memory reset and program reload.

5. Common Fault Codes to Know

• SF LED solid, BF LED blinking: Bus fault — check coax cable integrity and termination resistors (75 Ω at both ends of the H1 segment).
• SF LED solid, no BF: Module internal fault — the 6DP1616-8AA itself is likely the failed component. Replace the card.
• CPU in STOP after card swap: DIP switch address conflict or firmware mismatch. Re-check switch settings and STEP 5 hardware configuration.
• Intermittent comms loss: Often a failing AUI transceiver or degraded coax connector, not the module. Inspect the DB15 AUI port and cable first.

6. Post-Replacement Verification
After the CPU returns to RUN, use STEP 5’s online diagnostic function (PG/PC connection via MPI or serial) to verify the 6DP1616-8AA is recognized in the hardware configuration. Check the module’s diagnostic buffer for any residual fault entries. Clear the buffer, run the system for 15 minutes under normal load, and confirm no new faults appear before signing off.

Reliability in Harsh Conditions

The 6DP1616-8AA was engineered for the industrial environments that break consumer-grade electronics in weeks. Siemens designed this card to operate continuously in conditions that most engineers would consider hostile:

Vibration: The card’s PCB layout and component mounting comply with IEC 60068-2-6 vibration testing standards, making it suitable for installation near heavy rotating machinery — compressors, pumps, and milling equipment — where structural vibration is a constant. The edge connector is gold-plated to resist fretting corrosion caused by micro-movement in high-vibration racks.

Thermal Stress: Rated for 0 °C to +60 °C continuous operation, the 6DP1616-8AA handles the thermal cycling common in outdoor enclosures and non-climate-controlled machine rooms. The onboard components are selected for wide-temperature stability — critical for plants in Southeast Asia, the Middle East, and other high-ambient-temperature regions.

Humidity and Contamination: Conformal coating on the PCB provides protection against condensation and airborne contaminants — cutting fluid mist, dust, and chemical vapors — that are endemic in machining, chemical processing, and food production environments. Units from our stock are inspected for coating integrity before shipment.

EMI Resistance: The card’s shielded design and grounded backplane interface provide inherent immunity to electromagnetic interference from variable frequency drives (VFDs), welding equipment, and high-current switching loads — the exact sources of interference that cause unexplained communication faults in poorly shielded installations.

Every unit we ship undergoes a visual and functional pre-shipment inspection. ESD-safe handling, anti-static packaging, and foam-lined cartons are standard — not optional.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. Here’s how your order moves:

• Order Confirmation: Same-day processing for orders placed before 16:00 CST (UTC+8). You receive a proforma invoice and stock confirmation within 2 hours.
• Export Documentation: Commercial invoice, packing list, and certificate of origin prepared same day. For orders requiring a Certificate of Conformance or inspection report, allow one additional business day.
• Carrier Selection: DHL Express and FedEx International Priority are our primary carriers. Transit times: Southeast Asia 1–2 days, Europe 3–5 days, North America 3–5 days, Middle East 2–4 days. UPS and EMS available on request.
• Customs Clearance: HS Code 8537.10 applies to this module. We prepare accurate customs declarations to prevent clearance delays. DDP (Delivered Duty Paid) terms available for select destinations — contact us for a quote.
• Tracking: Waybill number provided within 4 hours of dispatch. Real-time tracking link sent directly to your email.
• Emergency Freight: For critical shutdowns, we can arrange same-day dispatch with next-flight-out courier options. Surcharges apply — contact us directly to arrange.

We have shipped to over 40 countries. Automotive plants in Germany, petrochemical facilities in Saudi Arabia, power stations in India, and food processing lines in Australia — the 6DP1616-8AA has left our warehouse bound for all of them. Your location is not a barrier.
