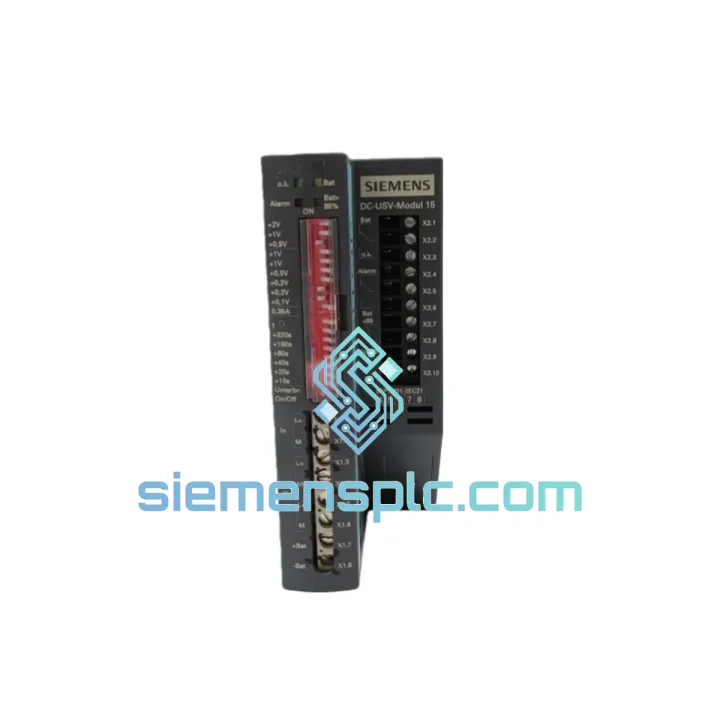

Siemens 6EP1931-2EC21 DC UPS Module

Siemens 6EP1931-2EC21 — Stop the Clock on Your Downtime. Ship Today.

Every minute your line is down, you’re bleeding money. A failed DC UPS module in your SITOP chain doesn’t just cut power — it can corrupt PLC program states, trigger cascading E-stops across your entire panel, and turn a 10-minute fix into a 10-hour nightmare. The Siemens 6EP1931-2EC21 is the exact replacement you need, and we have it on the shelf in Xiamen right now. No lead time games. No “check back in 6 weeks.” We ship the same day you order.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 6EP1931-2EC21 in the field is straightforward if you know the traps. Here’s what ten years of panel work has taught me:

1. Confirm the fault is the UPS module, not the buffer. The most common misdiagnosis: engineers replace the UPS module when the actual culprit is a degraded SITOP CAP capacitor module (6EP1935-6MF01) or a swollen lead-acid battery pack. Before pulling the 6EP1931-2EC21, check the LED status indicators. A solid red “Battery” LED with a flashing “DC OK” LED almost always points to the buffer, not the UPS module itself. Only a steady red on both channels with no output voltage confirms the UPS module has failed.

2. USB enumeration after replacement. When you install a new 6EP1931-2EC21, Windows will re-enumerate the USB device. If you’re running SITOP UPS Manager, the software will lose its COM port assignment. Go to Device Manager, find the new COM port number, and update the SITOP UPS Manager configuration before re-enabling your automated shutdown scripts. Skipping this step means your PLC shutdown sequence won’t trigger on next mains failure — a silent failure mode that bites hard.

3. Relay output wiring — check polarity. The relay alarm output on the 6EP1931-2EC21 is a normally-closed (NC) contact by default. If your PLC input card is wired for normally-open (NO) logic, you’ll get an inverted alarm state after replacement. Verify your wiring diagram before powering up. A misread alarm state has caused more than one unnecessary E-stop cascade I’ve had to untangle at 2 AM.

4. Firmware and SITOP UPS Manager version matching. The 6EP1931-2EC21 does not have field-upgradeable firmware — the module version is fixed at manufacture. However, SITOP UPS Manager versions above 2.3 introduced changes to the USB protocol handshake. If you’re running an older version of the software on a legacy PC, download the latest SITOP UPS Manager from Siemens Industry Online Support (SIOS) before commissioning the replacement unit. Mismatched software versions result in the module appearing as “not connected” even when physically present.

5. DIN rail seating and connector engagement. The 6EP1931-2EC21 uses a direct plug-in connector to mate with the upstream SITOP power supply. After snapping onto the DIN rail, apply firm lateral pressure toward the power supply until you hear a positive click. A partially engaged connector causes intermittent 24 VDC dropout under load — a fault that is nearly impossible to catch with a static multimeter check but will show up immediately under full panel load.

Common fault codes to know:

• F01 / Red Battery LED: Buffer module disconnected or failed — check CAP/battery module first.
• F02 / Flashing DC OK: Output voltage out of tolerance — check downstream load for short circuit before condemning the UPS module.
• F03 / No LED activity: Input power absent — verify upstream SITOP PSU output before replacing the UPS module.
• USB “Device Not Recognized”: Driver conflict — uninstall existing SITOP USB driver, reboot, reinstall from SIOS package.

Reliability in Harsh Conditions

Industrial panels don’t live in climate-controlled server rooms. The 6EP1931-2EC21 is built for the real world: foundry floors with 55 °C ambient, coastal chemical plants with 95% relative humidity, and press lines where the DIN rail vibrates at 10–150 Hz all shift long. Siemens validates this module to IEC 60068-2 environmental test standards — vibration, thermal shock, and damp heat cycling — before it leaves the factory. The conformal coating on the PCB resists condensation ingress that kills lesser modules within months in humid Asian manufacturing environments. The wide operating temperature range (0 °C to +60 °C) means it handles both the freezing cold-start of an outdoor switchgear cabinet in northern China in January and the peak summer heat of an un-air-conditioned press shop in Guangdong. This isn’t marketing copy — it’s the reason plant engineers specify SITOP over generic alternatives when the line cannot afford a second failure.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here’s exactly how your order moves:

• Order confirmed before 3:00 PM CST: Same-day dispatch from Xiamen warehouse.
• DHL Express Worldwide: Xiamen → Frankfurt/Amsterdam/Chicago in 2–4 business days. Typical transit to Germany: 48–72 hours. USA: 3–5 business days. Southeast Asia: 1–2 business days.
• FedEx International Priority: Available for time-critical shipments. Door-to-door tracking from pickup to delivery.
• Export documentation: Commercial invoice, packing list, certificate of origin, and FORM A (GSP) prepared same day. HS Code: 8504.40 (static converters). Customs value declared accurately — no undervaluation games that create clearance delays on your end.
• Emergency freight: For genuine production-down situations, contact us directly on WhatsApp for next-flight-out courier options. We’ve shipped to Germany, Australia, and Mexico within 24 hours of order confirmation when the situation demanded it.

We understand that when you’re ordering a replacement UPS module, every hour of transit time is an hour your line may be standing still. We treat your urgency as our urgency.
