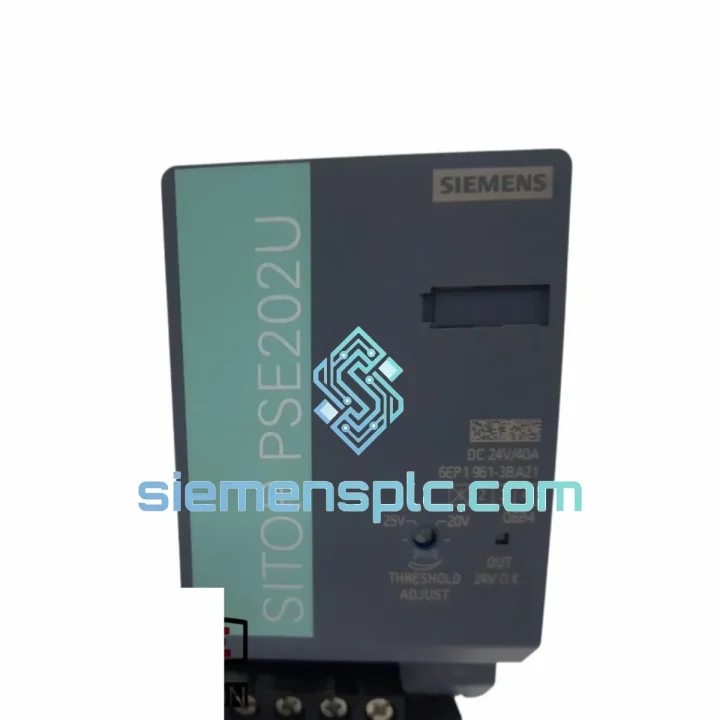

Siemens 6EP1961-3BA21 Redundancy Module – SITOP Series

Siemens 6EP1961-3BA21 — Parallel Redundancy Arbitration for 24 VDC Control Power Architectures

The 6EP1961-3BA21 is a dedicated hardware redundancy module within the Siemens SITOP product family, designed to establish N+1 power supply topologies in 24 VDC DC bus systems. Its core function is passive current-sharing arbitration between two independently operating SITOP power supply units (PSUs), ensuring that a single PSU failure does not interrupt load-side voltage. The module achieves this through an internal decoupling diode matrix that prevents reverse current flow between parallel supply branches while maintaining a combined output capacity of up to 40 A at 24 VDC nominal.

In a standard redundant control panel architecture, two SITOP PSUs — each rated at 20 A — feed into the 6EP1961-3BA21. Under normal conditions, both PSUs share the load equally at approximately 50% each. If one PSU drops below the bus voltage threshold, the decoupling circuit isolates it within microseconds, and the surviving PSU assumes 100% of the load without any transient interruption to the 24 VDC rail. This behavior is entirely passive — no firmware, no microcontroller arbitration, no configuration required. The deterministic response time is governed solely by the forward voltage characteristics of the internal diode array, making the module inherently immune to software faults or communication bus failures.

The module mounts on a standard 35 mm DIN rail and integrates directly into SITOP PSU300S and PSU8600 series installations. A floating signaling contact (potential-free relay output) provides a binary fault indication to the PLC or SCADA system, enabling remote diagnostics without requiring the operator to physically inspect the cabinet. The contact state changes upon detection of a PSU failure, allowing the control system to generate maintenance alarms while the process continues uninterrupted.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6EP1961-3BA21 employs a Schottky-based decoupling diode topology rather than conventional silicon rectifier diodes. Schottky diodes exhibit a forward voltage drop of approximately 0.3–0.5 V at rated current — significantly lower than standard silicon diodes at 0.6–0.7 V — which minimizes power dissipation within the module and reduces thermal stress on the internal bus bar. At 40 A combined output, the worst-case internal power loss is approximately 20 W, which the module dissipates through its aluminum heat spreader without requiring forced-air cooling in ambient temperatures up to 60 °C.

The decoupling architecture also provides inherent protection against a shorted PSU output. If one PSU develops a low-impedance fault on its output, the Schottky diode on that channel becomes reverse-biased by the healthy PSU’s output voltage, blocking reverse current flow and preventing the fault from propagating to the 24 VDC load bus. This behavior is passive and instantaneous — no relay switching delay, no control logic latency.

From an EMC perspective, the module’s internal layout minimizes high-frequency switching noise coupling. The SITOP PSU series uses switch-mode conversion at frequencies typically between 50–200 kHz. The 6EP1961-3BA21’s diode junction capacitance and the physical separation of input and output terminals reduce conducted emissions on the output bus. The DIN rail mounting also provides a low-impedance ground reference path through the rail’s conductive surface, supporting the overall cabinet EMC bonding strategy per IEC 61000-5-2.

The floating signaling contact uses a reed relay with a gold-plated contact surface, rated for low-level signal switching (5 VDC / 1 mA minimum load). This makes it directly compatible with PLC digital input modules operating at 24 VDC or 5 VDC logic levels without requiring an intermediate signal conditioner. The contact opens upon detection of a PSU failure, following a normally-closed (NC) logic convention — meaning a wiring fault or module power loss also triggers the alarm, providing fail-safe diagnostic behavior.

System Integration Benefits

• Zero-interruption PSU failover: Passive diode decoupling achieves sub-millisecond isolation of a failed PSU, maintaining 24 VDC bus continuity without any control system intervention or PLC program logic.
• No configuration overhead: The module requires no firmware, parameter assignment, or PROFIBUS/PROFINET node address. It is fully operational upon DIN rail installation and wiring — reducing commissioning time to under 15 minutes.
• Deterministic fault signaling: The NC relay contact provides a binary, latency-free fault signal directly readable by any PLC digital input, enabling alarm generation within one PLC scan cycle of a PSU failure event.
• Scalable load capacity: By pairing two 20 A SITOP PSUs, the architecture delivers 40 A to the load bus under normal conditions, with full 20 A capacity maintained post-failover — suitable for mid-density I/O panels and distributed control cabinets.
• Thermal margin in harsh environments: The −25 °C to +70 °C operating range covers outdoor enclosures, unheated substations, and high-ambient industrial floors without derating the output current specification.
• ATEX Zone 2 compliance: The module is certified for use in potentially explosive atmospheres (gas group IIC, temperature class T4), enabling deployment in petrochemical, offshore, and mining control panels without additional enclosure modifications.
• Compact DIN rail footprint: At 50 mm wide, the module occupies minimal horizontal rail space, preserving cabinet real estate in high-density panel designs where every millimeter of DIN rail is allocated.
• Reverse polarity and overvoltage protection: Input terminals are protected against accidental reverse polarity wiring during installation, and the module tolerates transient overvoltage events up to 30 VDC without damage — consistent with the SITOP series’ industrial robustness standards.
• Direct compatibility with SITOP ecosystem: Mechanically and electrically matched to PSU300S (6EP1436-3BA00, 6EP1437-3BA00) and PSU8600 series, eliminating the need for custom cable adapters or terminal block modifications.
• Supports IEC 62443 defense-in-depth architectures: By eliminating the 24 VDC power supply as a single point of failure, the module contributes to the physical layer resilience requirements of industrial cybersecurity frameworks without adding network-connected components.

Quality Assurance & Global Logistics

Every 6EP1961-3BA21 unit supplied by siemensplc.com is sourced as genuine Siemens AG manufactured product, originating from Siemens’ production facilities in Germany. Units are procured through traceable industrial distribution channels with full documentation integrity. Prior to dispatch from our Xiamen, China warehouse, each module undergoes a structured inspection protocol: label and hologram verification against Siemens factory standards, housing and terminal condition assessment, serial number format validation, and packaging integrity check. Functional bench testing for electrical continuity is performed on units where test fixtures are applicable.

Logistics from Xiamen are handled via DHL Express, FedEx International Priority, and SF International for time-sensitive orders, with sea freight consolidation available for bulk procurement. Standard in-stock orders are dispatched within 1–3 business days. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared for all international shipments. The applicable HS code for this product is 8504.40 (static converters). A 12-month warranty against manufacturing defects is provided on all units, covering functional failure under normal operating conditions as defined in the Siemens product datasheet.
