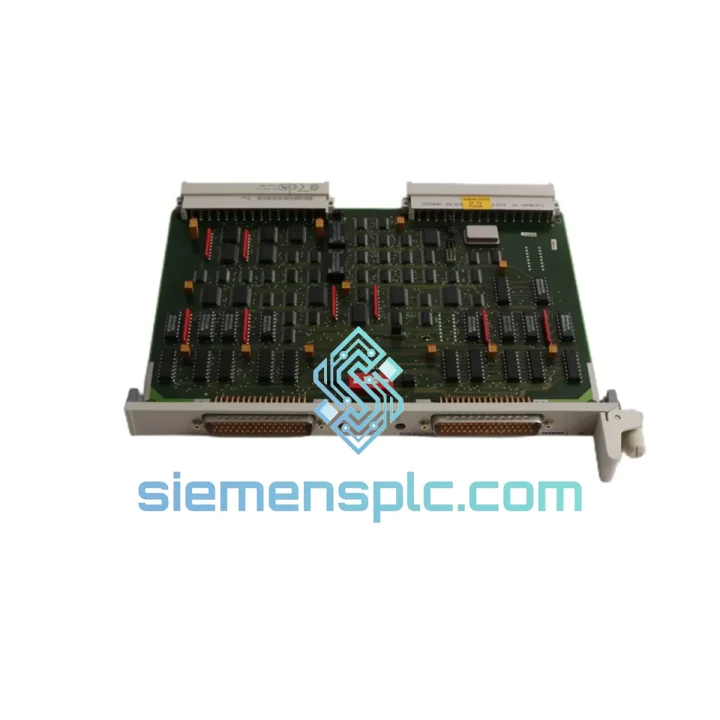

Siemens 6ES5304-3UB11 IM304 Interface Module

6ES5304-3UB11 IM304: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every minute your S5 rack sits dark, the losses compound. A tripped IM304 send module doesn’t just halt one station — it takes down every expansion rack wired to it. The Siemens 6ES5304-3UB11 is the exact send interface module your SIMATIC S5 central rack needs to restore the backplane link to up to four expansion units. We keep verified stock in Xiamen, pre-inspected and ready to clear customs today. No waiting on factory lead times. No grey-market gambles. Just the right part, moving fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The IM304 fails in predictable ways. Here’s what I see on-site, and how to handle the swap without creating new problems:

Common failure signatures:

• SF LED solid red on CPU rack — the central controller has lost contact with one or more expansion racks. Pull the IM304 first before chasing wiring.
• Expansion rack I/O frozen but CPU running — intermittent bus dropout. Often caused by a degraded IM304 driver circuit, not the cable. Swap the module before replacing expensive cabling.
• STEP 5 OB21/OB22 startup errors — the system cannot initialize the expansion bus. Confirm the IM304 is seated fully; the edge connector oxidizes on older units and causes cold-joint contact faults.
• Random SF faults after vibration events — the 6ES5304-3UB11 uses a single-board design; mechanical shock can crack solder joints on the bus driver ICs. Visual inspection under magnification is worthwhile before condemning the module.

Replacement procedure — field-tested sequence:

1. Power down the entire S5 rack system. Do not hot-swap IM modules — the S5 backplane does not support live insertion.
2. Note the slot position of the existing IM304. It must occupy the designated interface slot in the central rack (refer to your rack’s hardware manual, order no. 6ES5998-3UA11).
3. Disconnect the expansion bus cable from the front connector before removing the module. Label the cable end if multiple expansion racks are wired.
4. Seat the replacement 6ES5304-3UB11 firmly until the locking levers click. Oxidized backplane contacts? Clean with IPA and a lint-free swab before insertion.
5. Reconnect the expansion bus cable. Verify cable shield is grounded at one end only — floating shields on S5 interconnects cause intermittent SF faults that are nearly impossible to trace under load.
6. Power up the central rack first, then expansion racks. Watch the IM304 LED: green = bus active. If it stays red, check that each expansion rack has a functioning IM314 (6ES5314-3UA11) in its interface slot.
7. No DIP switches or address coding required on the 6ES5304-3UB11 — it is not address-configurable. The IM314 receive modules are also fixed-address. No firmware upload needed; the module is plug-and-operate within the S5 hardware architecture.
8. Run a STEP 5 online diagnostic (PG/PC → System Status) to confirm all expansion racks are visible and I/O modules are responding before handing back to operations.

Paired module check: If the replacement IM304 still shows a fault, the IM314 in the expansion rack may have failed simultaneously — dual-module failures during a power surge are common. Have a spare 6ES5314-3UA11 on hand before you start.

Reliability in Harsh Conditions

The 6ES5304-3UB11 was engineered for the factory floor, not the server room. Siemens designed the SIMATIC S5 hardware to operate continuously in environments that would kill consumer-grade electronics within weeks.

The module’s single-board construction eliminates inter-board connectors — a common failure point in multi-board designs exposed to thermal cycling. The backplane edge connector uses gold-plated contacts rated for thousands of insertion cycles, maintaining reliable signal integrity even after years of vibration exposure in press shops, compressor rooms, and steel mills.

Operating temperature ceiling of 60 °C means the module handles panel temperatures that routinely occur in summer in unair-conditioned switchgear rooms across Southeast Asia and the Middle East. The conformal coating on the PCB provides a barrier against humidity and airborne contaminants — relevant in food processing, chemical dosing, and coastal installations where salt-laden air accelerates corrosion on unprotected boards.

Vibration tolerance is validated to IEC 68-2-6 standards. In automotive body shops where spot-welding robots generate continuous mechanical shock, S5 systems with properly seated IM304 modules have run for decades without bus faults attributable to the interface hardware itself. When failures do occur in these environments, the cause is almost always the interconnect cable or its terminations — not the module.

Every unit we ship from Xiamen has been stored in ESD-safe, climate-controlled conditions. We do not warehouse modules in uncontrolled environments. Boards are inspected for corrosion, cracked components, and connector damage before dispatch. If a unit does not pass visual and functional checks, it does not ship.

Global Express Logistics

Our Xiamen warehouse is positioned 40 minutes from Xiamen Gaoqi International Airport, one of China’s primary cargo hubs with direct freight connections to Frankfurt, Amsterdam, Dubai, Chicago, and Singapore. This geography is deliberate — it means your emergency order moves from our shelf to an aircraft in hours, not days.

Standard express flow:

• Order confirmed before 14:00 CST → same-day dispatch via DHL Express or FedEx International Priority.
• DHL Express transit times: Europe 2–3 business days | North America 3–4 business days | Southeast Asia 1–2 business days | Middle East 3–4 business days.
• FedEx International Priority available as an alternative for destinations with stronger FedEx coverage (e.g., US Midwest, Canada).
• All shipments include a commercial invoice, packing list, and certificate of origin — required for customs clearance in most markets. We prepare these documents accurately to avoid customs holds that would defeat the purpose of express shipping.
• Tracking number provided within 2 hours of dispatch. We monitor shipments actively and flag any customs delays to you immediately so you can intervene with your local broker if needed.
• For extremely urgent situations — production line down, safety system offline — contact us directly via WhatsApp before placing the order. We can coordinate airport pickup at the destination, courier-to-courier handoffs, and other non-standard logistics arrangements that online checkout cannot accommodate.

We have shipped S5 modules to automotive plants in Germany, petrochemical facilities in Saudi Arabia, paper mills in Scandinavia, and food processing lines in Australia. The logistics process is proven. Your part will arrive.
