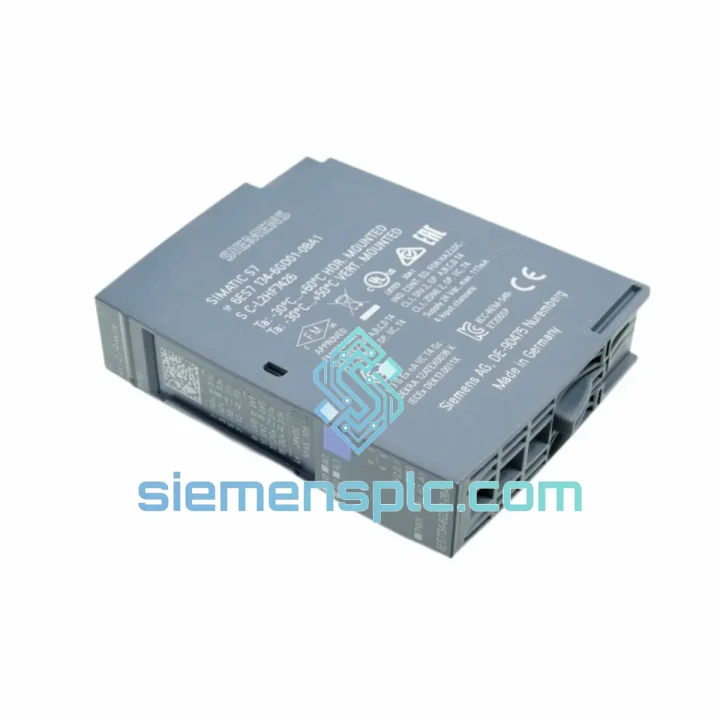

Siemens 6ES7134-6GD01-0BA1 Analog Input Module

6ES7134-6GD01-0BA1 — Every Hour of Downtime Costs You Money. We Ship Today.

Your ET 200SP station just threw a fault. The analog input channel is dead. The line is stopped. You’ve already pulled the module and confirmed it’s the 6ES7134-6GD01-0BA1 — Siemens’ 4-channel analog input module for the SIMATIC ET 200SP distributed I/O platform. You don’t need a datasheet lecture. You need the part on a plane tonight.

We stock the 6ES7134-6GD01-0BA1 in Xiamen, China. Same-day dispatch via DHL Express or FedEx International Priority. From our warehouse shelf to your production floor — tracked, insured, and moving fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls teach you that most 6ES7134-6GD01-0BA1 failures fall into three buckets. Here’s what to check before you even pull the module — and what to watch when you drop the new one in.

Common Fault Codes & Root Causes

• SF LED solid red / Diagnostic buffer: “Module removed or not responding” — Backplane bus contact failure. Before condemning the module, reseat it firmly. Check the BaseUnit locking lever is fully engaged. If the fault clears on reseat, inspect the gold contacts on the BaseUnit for oxidation or mechanical damage.
• Channel-specific fault: “Wire break” on 4–20 mA loop — The module’s wire-break detection is active by default. If your transmitter outputs below ~1.2 mA (open circuit threshold), the channel flags a fault. Verify field wiring continuity first. If the transmitter is confirmed healthy, check whether the channel parameter in TIA Portal has wire-break monitoring enabled — disable it only if your signal legitimately drops below threshold.
• All channels reading max value (32767 / 27648 overflow) — Typically a shorted input or a voltage signal applied to a channel configured for current. Verify channel-by-channel parameter assignment in TIA Portal hardware configuration. Mismatch between physical wiring and software configuration is the #1 cause of this symptom.
• Intermittent analog drift / noisy readings — Ground loop. The 6ES7134-6GD01-0BA1 provides channel isolation, but if your field devices share a common ground with the PLC cabinet and there’s a potential difference, you’ll see noise. Use shielded cable, connect shield at one end only (control cabinet side), and verify PE bonding across the ET 200SP station.

Step-by-Step Hot-Swap Replacement Procedure

1. In TIA Portal, go online and set the CPU to STOP mode. Confirm no safety-critical outputs are active.
2. On the ET 200SP station, identify the slot. The 6ES7134-6GD01-0BA1 uses automatic address assignment — the module address is determined by its physical slot position, not a DIP switch. No address configuration is required on the module itself.
3. Disconnect field wiring from the BaseUnit terminal block. Label each wire before removal — the BaseUnit stays in place; only the module is replaced.
4. Press the orange release lever on the top of the module and slide it upward out of the BaseUnit. The BaseUnit remains mounted on the DIN rail.
5. Insert the new 6ES7134-6GD01-0BA1 into the same BaseUnit slot. Press firmly until the locking lever clicks. The module self-identifies to the CPU via the backplane bus — no coding plug or DIP switch required.
6. Reconnect field wiring. Verify terminal assignments against your as-built drawings.
7. Set CPU to RUN. Monitor the diagnostic buffer for 30 seconds. If the SF LED clears and channel values are within expected range, replacement is complete.
8. Firmware note: If TIA Portal reports a firmware mismatch after replacement, navigate to Online > Update Firmware and push the matching firmware version. The -0BA1 hardware revision requires firmware V2.0 or above. Mismatched firmware will cause the module to appear as “unknown” in the hardware catalog.

Reliability in Harsh Conditions

The 6ES7134-6GD01-0BA1 is not a lab instrument. It was designed for the floor — and it shows in the construction.

The module housing is a glass-fiber reinforced polycarbonate shell rated IP20, with conformal-coated PCBs on production variants to resist condensation and airborne contaminants common in food processing, chemical, and coastal industrial environments. Operating temperature range of 0 °C to +60 °C covers the vast majority of industrial cabinet installations without forced cooling, and the module is rated for operation up to 95% relative humidity (non-condensing).

Vibration resistance is validated to IEC 60068-2-6: 5–150 Hz, 1 g — sufficient for installations on machinery with significant mechanical vibration sources. Shock resistance per IEC 60068-2-27 at 15 g / 11 ms half-sine covers transport and installation impacts.

The 16-bit ADC architecture provides inherent noise rejection through oversampling, and the channel isolation (500 V AC test voltage between channels and backplane) protects the CPU backplane from field-side transients — a critical feature in environments with variable-frequency drives, welding equipment, or large motor starters sharing the same cabinet or cable tray.

ATEX Zone 2 certification (II 3 G Ex nA IIC T4 Gc) means this module can be deployed in areas where explosive gas atmospheres may occur occasionally — without requiring an Ex-rated enclosure, provided the installation meets the zone requirements. For Zone 1 or Zone 0, additional Ex barriers remain mandatory.

In short: this module has been running continuously in paper mills, offshore platforms, automotive body shops, and pharmaceutical cleanrooms. It doesn’t need babying. It needs correct installation and clean power.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian, China — one of the most logistics-connected cities in Southeast China, with direct access to Xiamen Gaoqi International Airport (XMN) and daily freight consolidation to DHL and FedEx international gateways.

Standard Express Workflow:

• Order confirmed before 14:00 CST: Same-day pick, pack, and handover to DHL Express or FedEx International Priority.
• DHL Express Worldwide: Europe 2–3 business days, North America 3–4 business days, Southeast Asia 1–2 business days, Middle East 3–5 business days.
• FedEx International Priority: Comparable transit times with alternative routing for destinations where DHL coverage is limited.
• Shipment documentation: Commercial invoice, packing list, and HS code 8537.10 declaration prepared for customs clearance. ECCN EAR99 classification available on request for US import compliance.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.
• Insurance: All shipments are fully insured at declared value. In the event of transit damage or loss, replacement or refund is processed within 5 business days of carrier claim confirmation.

For multi-unit orders, pallet consolidation via air freight is available for quantities exceeding 20 modules. Sea freight (FCL/LCL) is available for large BOM orders where lead time permits. Contact us for a freight quote.
