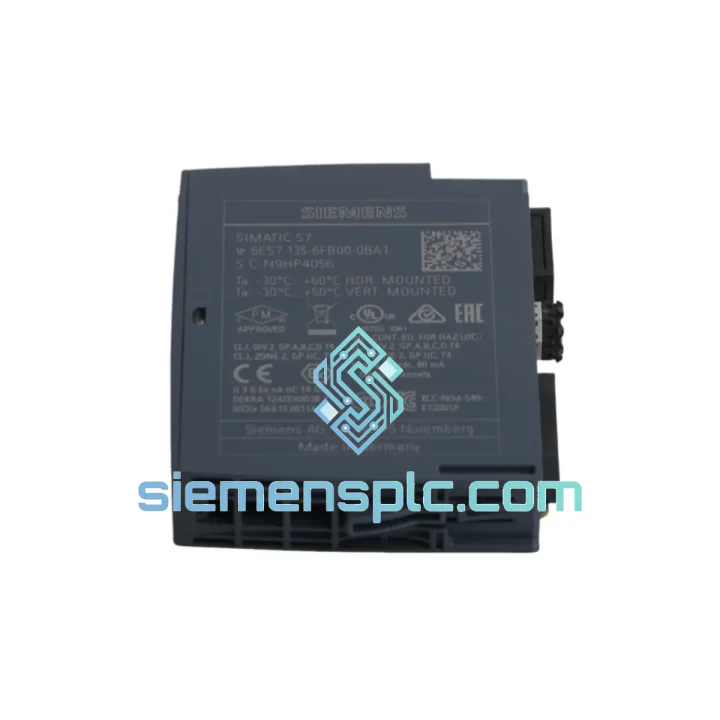

Siemens 6ES7135-6FB00-0BA1 Analog Output Module

6ES7135-6FB00-0BA1 — Stop the Bleed: Get Your ET 200SP Line Back Online Before the Next Shift

Every minute your analog output channel is dead, your process loop is open. Valve positioners drift. VFD speed references drop to zero. Batch sequences abort mid-cycle. The 6ES7135-6FB00-0BA1 is a 2-channel, 16-bit analog output module for the Siemens SIMATIC ET 200SP distributed I/O platform — and we have it on the shelf in Xiamen right now, ready to clear customs and land on your workbench faster than your maintenance manager can file the incident report.

We don’t sell paper. We sell uptime. This is a 100% original Siemens module, not a clone, not a refurb passed off as new. Every unit ships with anti-static packaging, humidity indicator, and a certificate of conformity. If you need it today, contact us now — we pick, pack, and hand to DHL same business day for orders confirmed before 15:00 CST.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for this module:

• SF/DIAG LED solid red on the ET 200SP station — channel-level diagnostic fault logged in TIA Portal under “Module diagnostics”
• Analog output frozen at last value or clamped to 0 V / 0 mA — typically indicates internal DAC failure or blown output protection
• Intermittent output drift on one channel while the other remains stable — check for moisture ingress at the base unit connector first before condemning the module
• PROFINET communication intact but process image not updating — firmware mismatch between module and GSD file version in TIA Portal project

Step-by-step hot-swap replacement procedure:

1. Confirm the ET 200SP station supports module replacement without full station power-down. On most S7-1500 + ET 200SP PROFINET setups, individual module slots can be swapped while the station remains powered — verify this in your system documentation before proceeding.
2. In TIA Portal, navigate to Online & Diagnostics → Module diagnostics. Note the exact slot number and fault code. Screenshot it — you’ll need this for the incident report.
3. Disconnect field wiring from the base unit terminal block. The 6ES7135-6FB00-0BA1 uses a push-in terminal base (BU-Type A0). Label each wire before removal. Do not pull the base unit — only the module slides out.
4. Press the orange release lever on the top of the module and slide it upward out of the base unit. The base unit stays in place; your field wiring stays connected to the base unit terminals.
5. Inspect the base unit connector pins for corrosion or mechanical damage. If pins are bent or oxidized, the base unit must also be replaced — a new module on a damaged base will fail within weeks.
6. Slide the replacement 6ES7135-6FB00-0BA1 into the base unit until it clicks. No tools required. No DIP switches on this module — address assignment is automatic via the ET 200SP backplane bus (slot-based addressing).
7. In TIA Portal, go online and perform “Load to device” if the firmware version of the replacement module differs from the project’s GSD. Check firmware version on the module label (e.g., V1.0, V1.1). Mismatched firmware will cause a configuration fault even if the part number matches.
8. Force the analog outputs to a known safe value (e.g., 4 mA) from TIA Portal watch table before returning the loop to automatic mode. Verify the field device (valve, VFD) responds correctly before releasing to operations.

Key configuration notes:

• No DIP switches, no rotary address switches — the ET 200SP uses automatic slot-based addressing. The module takes the address of the slot it occupies. No manual configuration required on the hardware side.
• Output mode selection is done entirely in TIA Portal hardware configuration. Each channel is independently set to voltage (±10 V) or current (0–20 mA / 4–20 mA). This setting is stored in the CPU project, not in the module itself.
• Substitute behavior on CPU STOP: by default, outputs go to 0 V / 0 mA on CPU STOP. If your process requires a hold-last-value or a defined safe output, configure this in the module properties under “Behavior in CPU STOP” in TIA Portal before going live.
• Firmware matching: if replacing a V1.0 module with a V1.1 unit, TIA Portal will flag a firmware mismatch. Accept the update prompt and reload the hardware configuration. This is normal and takes less than 2 minutes.

Reliability in Harsh Conditions

The 6ES7135-6FB00-0BA1 is not a lab instrument. It was designed for the floor — cement plants, chemical reactors, offshore platforms, and automotive body shops where the air smells like coolant and the cabinets vibrate at 10–150 Hz all day. Siemens validates ET 200SP modules to IEC 61131-2 environmental standards, which means this module has been shaken, baked, and soaked before it ever reached your panel.

Vibration resistance is rated to 5g at 10–150 Hz — sufficient for most machine-mounted cabinet installations. Shock resistance covers 25g at 11 ms pulse duration. Operating humidity range is 10–95% RH non-condensing, which covers most tropical and coastal industrial environments. The IP20 rating means the module is protected against solid objects larger than 12.5 mm — standard for enclosed control cabinet use.

For installations in Zone 2 hazardous areas (gas group IIC, temperature class T4), the ATEX certification on this module is valid without additional barriers, provided the ET 200SP station is installed in a certified Ex enclosure. Confirm your enclosure certification before installation in classified areas.

The 15 mm slim form factor also means less thermal mass and better airflow in high-density cabinets. In installations where cabinet temperatures approach the 60 °C operating limit, ensure your cabinet cooling is sized for the full station load — the module itself dissipates approximately 1.2 W under full load.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL and FedEx gateway access. This is not a dropship operation. The module is physically on our shelf, inspected, and ready to pack.

Standard express timeline (DHL/FedEx International Priority):

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Netherlands, Poland, UK): 3–5 business days
• North America (USA, Canada, Mexico): 4–6 business days
• South America (Brazil, Chile, Colombia): 5–8 business days
• Australia / New Zealand: 3–5 business days

All shipments include a commercial invoice with accurate HS code (8537.10) for customs clearance. We can provide a proforma invoice for advance customs pre-clearance on request — useful for time-critical shipments into markets with slow customs processing. For orders requiring formal import documentation (Form E, CO certificate), advise us at time of order and we will arrange accordingly.

Tracking numbers are issued within 2 hours of dispatch. We send proactive updates at pickup, departure, and arrival scan. If your shipment is held at customs, we provide the documentation support to clear it — we’ve done this hundreds of times and know what customs officers in each major market need to see.

For bulk orders (10+ units) or project-based procurement requiring sea freight or consolidated air cargo, contact us for a dedicated logistics quote. We work with freight forwarders in Xiamen, Shanghai, and Shenzhen for full-container and LCL shipments.
