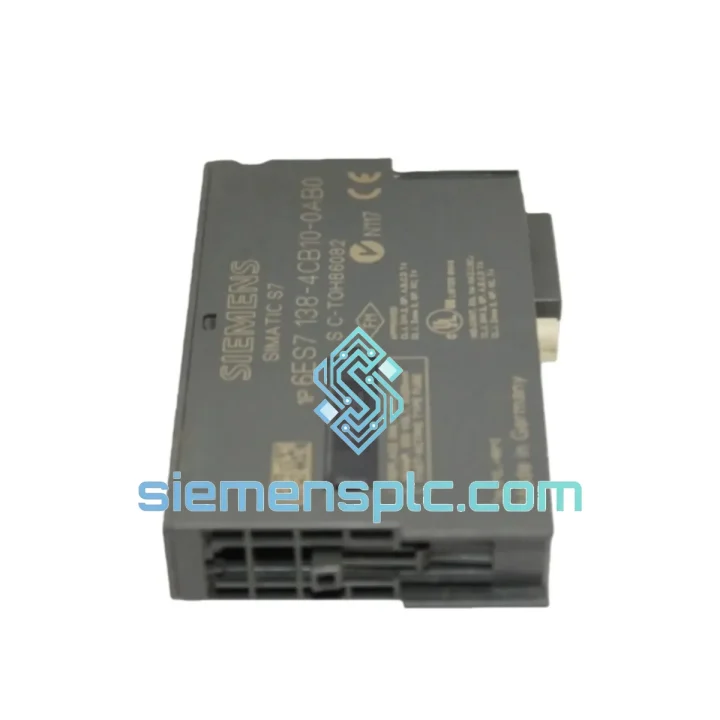

Siemens 6ES7138-4CB10-0AB0 PLC Power Module – ET 200S

Siemens 6ES7138-4CB10-0AB0 PM-E DC24V: Load Voltage Distribution Architecture in ET 200S Distributed I/O Stations

The 6ES7138-4CB10-0AB0 is the standard PM-E (Power Module for Electronic Modules) within the SIMATIC ET 200S modular distributed I/O platform. Its function is not peripheral — it defines the electrical boundary between the backplane communication bus and the field-side load voltage domain. Without a correctly rated PM-E inserted at the appropriate slot position, downstream electronic modules receive no load voltage and remain inoperative regardless of the interface module’s communication status. This architectural separation is deliberate: it allows the PROFIBUS DP or PROFINET backplane to remain energized and communicating while the load voltage segment is independently switched, fused, or isolated for maintenance.

In a typical ET 200S station, the IM 151 interface module handles all fieldbus communication and distributes the internal 5 V DC backplane supply across the terminal module rail. The PM-E 6ES7138-4CB10-0AB0 occupies a dedicated terminal module (TM-P15S23-A1, order no. 6ES7193-4CA30-0AA0) and injects DC 24 V load voltage into the load voltage bus segment that feeds all electronic modules to its right — up to the next PM-E or the end of the station. This segmented topology is the foundation of zone-selective load isolation: a single station can carry multiple PM-E modules, each powering a discrete group of I/O modules with independent fusing and switching.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7138-4CB10-0AB0 implements a passive load voltage injection architecture — it does not contain a DC/DC converter or active regulation stage. The module connects the externally supplied DC 24 V directly to the load voltage bus contacts of the terminal module rail, with internal reverse-polarity protection diodes and transient suppression elements to guard against inductive kickback from field wiring. This passive design has two direct engineering consequences: first, the module introduces negligible propagation delay and no switching noise onto the load bus; second, the load voltage quality is entirely determined by the upstream 24 V SELV power supply, making PSU selection a critical system design parameter.

From an EMC standpoint, the terminal module rail provides functional earth (FE) shielding continuity across the entire station. The PM-E’s terminal module (TM-P15S23-A1) includes a dedicated FE contact that bonds the DIN rail ground plane to the station’s equipotential bonding network. This low-impedance earth path is the primary mechanism for conducted EMI suppression — high-frequency noise injected by field cables is shunted to earth before it can propagate onto the backplane bus or the 5 V logic supply.

The module’s 15 mm form factor is achieved by integrating all connection contacts directly into the terminal module rather than the electronics module itself. The PM-E blade contains only the bus interface logic, reverse-polarity protection, and status LED driver circuitry. This separation of mechanical and electrical functions is the architectural basis for the ET 200S hot-swap capability: the terminal module remains wired and mounted while the electronics module is extracted and replaced, eliminating the need to disconnect field wiring during maintenance. Hot-swap validity for the PM-E specifically requires that the downstream load voltage segment be de-energized prior to extraction — the IM 151 interface module continues communicating during this interval, maintaining I/O data exchange for unaffected station segments.

Diagnostic transparency is implemented via two onboard LEDs: a green SF/BF indicator reflecting the backplane bus status relayed from the IM 151, and a red group fault LED that activates when the load voltage at the bus contacts falls below the undervoltage threshold (approximately 18 V DC). This threshold detection is hardwired — it does not require software configuration and operates independently of the fieldbus communication state, providing a reliable hardware-level fault indicator even during communication loss scenarios.

System Integration Benefits

• Zone-selective load isolation: Multiple PM-E modules within a single station create independent load voltage segments, allowing maintenance personnel to de-energize one I/O group without affecting adjacent segments or interrupting fieldbus communication.
• Bus-agnostic operation: The PM-E supplies load voltage regardless of whether the station uses an IM 151-1 (PROFIBUS DP) or IM 151-3 PN (PROFINET) interface module, protecting the hardware investment across network migration projects.
• Deterministic fault propagation: The hardwired undervoltage detection ensures that load voltage faults are reported to the PLC CPU within one PROFIBUS DP cycle (typically ≤ 10 ms at 1.5 Mbit/s), enabling time-critical safety responses without relying on software polling.
• Minimal backplane bus loading: At ≤ 10 mA from the 5 V backplane supply, the PM-E imposes negligible current demand on the IM 151’s internal power budget, preserving headroom for high-density I/O configurations with many electronic modules.
• STEP 7 and TIA Portal native diagnostics: The module’s fault states are mapped to standard SIMATIC diagnostic buffers accessible via SFB 52 (RDREC) or TIA Portal’s online diagnostics view, eliminating the need for custom diagnostic programming.
• ATEX Zone 2 certification: The II 3 G Ex nA IIC T4 rating permits deployment in areas where flammable gas or vapor may be present under abnormal conditions, extending the ET 200S platform into light chemical and oil & gas applications without requiring intrinsically safe barriers for the power module itself.
• Standardized spare parts management: The 15 mm PM-E form factor and single order number cover all ET 200S electronic module configurations, simplifying MRO inventory — one part number replaces the load voltage supply function across the entire electronic module range.
• Wiring continuity during module exchange: Because all field connections terminate on the permanent terminal module, replacing a failed PM-E electronics blade requires no rewiring, reducing mean time to repair (MTTR) to under five minutes in trained maintenance environments.

Quality Assurance & Global Logistics

Every 6ES7138-4CB10-0AB0 unit supplied by siemensplc.com is sourced as genuine Siemens factory production. Authenticity verification is performed against Siemens’ factory serial number structure and holographic label specifications prior to dispatch. Units are stored in climate-controlled conditions at our Xiamen, China facility, maintaining the module’s specified storage temperature range and preventing humidity-induced oxidation of the bus connector contacts.

Pre-shipment inspection covers visual examination of the housing, connector blade geometry, LED lens integrity, and label legibility. ESD-safe anti-static packaging with foam cushioning is applied to every unit, conforming to ANSI/ESD S20.20 handling requirements. Full lot traceability documentation — including batch records and inspection reports — is available upon request for regulated industries such as pharmaceutical manufacturing and nuclear power auxiliary systems.

Logistics from Xiamen port to major global destinations: DHL Express to Europe and North America typically 3–5 business days; FedEx International Priority to Southeast Asia and the Middle East 2–4 business days; sea freight consolidation available for bulk orders. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for all international shipments. HS Code 8537.10 applies for customs classification in most jurisdictions.
