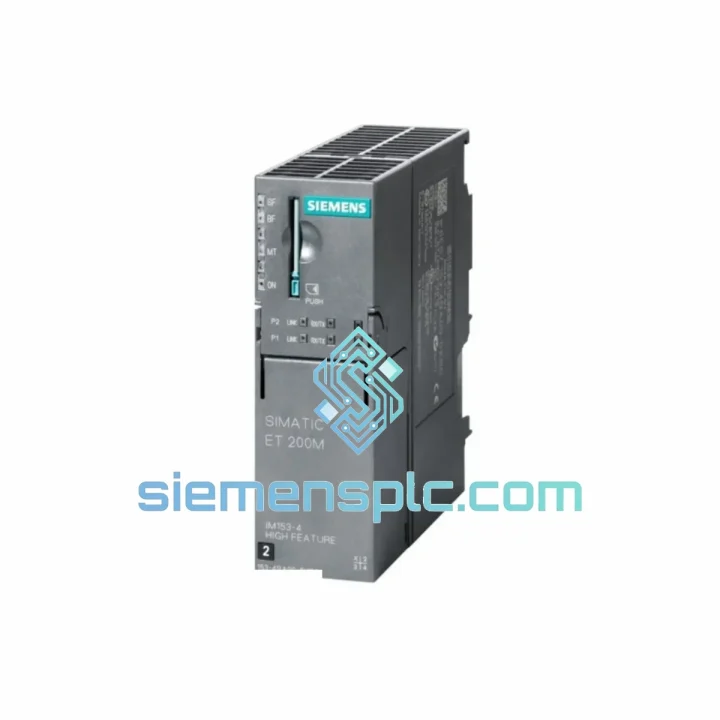

Siemens 6ES7153-4BA00-0XB0 DP Interface Module – ET 200M IM 153-4

Siemens 6ES7153-4BA00-0XB0 IM 153-4: Redundant PROFIBUS DP Interface for ET 200M Distributed I/O

The Siemens 6ES7153-4BA00-0XB0 is the IM 153-4 interface module for the SIMATIC ET 200M distributed I/O station. Its primary function within a control loop is to terminate the PROFIBUS DP segment at the field level and translate cyclic DP telegram data into the ET 200M backplane bus protocol, delivering process image data to up to eight S7-300 signal modules with deterministic cycle synchronization. Unlike the standard IM 153-2 family, the IM 153-4 implements a dual-channel PROFIBUS DP port architecture that supports active redundancy: both ports monitor bus traffic simultaneously, and arbitration logic switches the active channel within one bus cycle upon detecting a line fault — without interrupting the process image exchange with the attached I/O modules.

In process industries where unplanned downtime carries direct financial and safety consequences — continuous chemical reactors, offshore platform control, pharmaceutical batch systems — the IM 153-4’s redundancy mechanism provides a measurable reduction in mean time to repair at the field bus layer. The module operates across a supply voltage range of 20.4 V DC to 28.8 V DC drawn from the ET 200M backplane, eliminating the need for a dedicated field-side power feed to the interface module itself.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Dual-Port RS-485 Arbitration Architecture
The IM 153-4 integrates two independent RS-485 transceivers, each connected to a separate PROFIBUS DP segment. An on-board arbitration ASIC continuously evaluates telegram integrity on both ports using CRC-16 frame checking and token-ring timing supervision. When the active port detects three consecutive frame errors or a token-loss timeout, the arbitration logic asserts the switchover signal and promotes the standby port to active status. The entire switchover sequence completes within one PROFIBUS DP bus cycle — typically 1–10 ms at 1.5 Mbit/s — ensuring the ET 200M station remains visible to the DP master without a GSD re-initialization cycle.

Backplane Bus Interface and Process Image Handling
The module interfaces to the ET 200M backplane via a proprietary parallel bus operating at 5 V DC logic levels. The backplane bus controller within the IM 153-4 manages slot addressing for up to eight downstream signal modules, assembles the process input image from all SM modules, and writes the process output image received from the DP master into the corresponding SM output registers — all within a single DP telegram cycle. This tight coupling between the DP cycle and the backplane scan eliminates the asynchronous latency that would otherwise accumulate in a loosely coupled gateway architecture.

EMC Design and Isolation
The RS-485 bus interface incorporates optocoupler-based galvanic isolation between the PROFIBUS segment and the module’s internal logic, providing a minimum isolation voltage of 500 V DC. This isolation barrier prevents ground-loop currents — common in large industrial installations with distributed earthing — from corrupting bus signal integrity. The module’s PCB layout follows Siemens’ internal EMC guidelines for Class A industrial environments, with dedicated ground planes, ferrite bead filtering on the bus connector pins, and shielded cable termination provisions at the DB9 connector.

Isochronous Mode (DP V2 Clock Synchronization)
For motion control and closed-loop process applications requiring deterministic I/O timing, the IM 153-4 supports DP V2 isochronous mode. In this mode, the DP master broadcasts a global control telegram that synchronizes the backplane scan cycle of all ET 200M stations on the segment to a common clock. The IM 153-4’s internal cycle timer locks to this master clock with a jitter of less than ±1 µs, enabling coordinated multi-axis position data capture across distributed stations — a requirement for applications such as synchronized press control and high-speed packaging lines.

System Integration Benefits

• Active bus redundancy without DP master reconfiguration: The switchover is transparent to the S7-300/S7-400 CPU; no OB86 fault interrupt is generated for a single-line failure, preserving program execution continuity.
• Hot-swap I/O module replacement: With the Active Bus Module installed, individual SM signal modules can be removed and reinserted under power without halting the ET 200M station or triggering a DP bus fault — critical for 24/7 continuous-process plants.
• Isochronous DP V2 support: Enables sub-millisecond synchronized I/O scanning across multiple ET 200M stations, supporting closed-loop control architectures where scan-time jitter directly affects control quality.
• Full STEP 7 and TIA Portal hardware catalog integration: The module is natively recognized in STEP 7 V5.x and TIA Portal V13 SP1 and above; no manual GSD import is required for standard configurations, reducing commissioning time.
• Diagnostic transparency via DP V1 acyclic services: The IM 153-4 exposes module-level and channel-level diagnostic data through DP V1 acyclic read services, allowing the DP master to retrieve fault codes, supply voltage status, and slot occupancy without interrupting cyclic I/O exchange.
• Compatibility with F-modules for safety applications: When combined with Siemens F-SM safety signal modules and a PROFISAFE-capable DP master, the ET 200M station can participate in SIL 2 / SIL 3 safety loops — the IM 153-4 passes PROFISAFE telegrams transparently without requiring safety-specific firmware.
• Scalable station expansion: Up to eight SM modules per station, with mixed analog and digital I/O types on the same backplane, reduces the number of DP stations required for a given I/O count and simplifies cable routing in field junction boxes.
• Consistent process image update across bus speeds: The module maintains deterministic backplane scan behavior from 9.6 kbit/s to 12 Mbit/s, allowing engineers to optimize bus speed for cable length without redesigning the I/O station architecture.

Quality Assurance & Global Logistics

Every 6ES7153-4BA00-0XB0 unit supplied by siemensplc.com is sourced as genuine Siemens original hardware. Pre-shipment verification includes visual inspection of the module housing and label, date-code and serial-number cross-reference against Siemens product traceability records, and a functional power-on test confirming LED status indication and backplane bus initialization. Units are stored in ESD-safe, climate-controlled warehousing in Xiamen, China, and packed in anti-static foam with original Siemens carton or equivalent protective packaging for international transit.

Shipments depart from Xiamen via DHL Express, FedEx International Priority, or UCP air freight depending on order volume and destination. Typical transit times are 3–5 business days to Southeast Asia, 5–7 business days to Europe and the Middle East, and 5–8 business days to the Americas. Full export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (8537.10) — is prepared for every international shipment to facilitate customs clearance. For orders requiring expedited delivery or special export licensing, contact the sales team directly.

All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and confirmed functional failures under normal operating conditions. Warranty claims are processed with a target response time of 48 hours.
