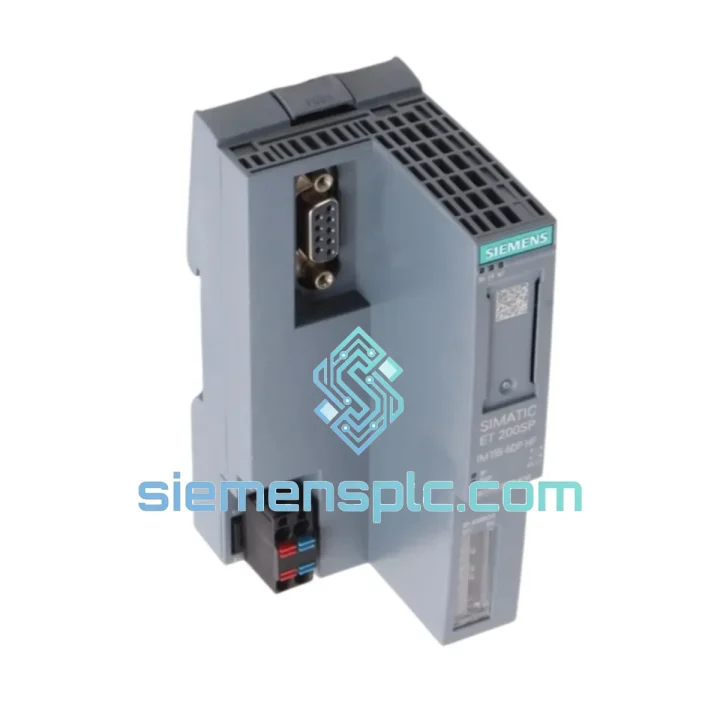

Siemens 6ES7155-6BU00-0CN0 Interface Module

6ES7155-6BU00-0CN0 — Stop the Bleeding: ET 200SP Back Online Before the Next Shift

Your ET 200SP station just dropped off the PROFIBUS network. The DP master is throwing Station Failure diagnostics, the field I/O is frozen, and production is standing still. You already know the interface module is the culprit — the BF LED is solid red, the SF LED is flashing, and there’s no response to the GSD configuration. You need a 6ES7155-6BU00-0CN0 on the rail today, not in six weeks.

We stock the 6ES7155-6BU00-0CN0 in Xiamen and ship same-day on confirmed orders. DHL Express to most destinations in 3–5 business days. No minimum order. No waiting on factory lead times. While your procurement team is still opening a purchase requisition, we’re already pulling the module off the shelf.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Confirming the IM is the failed component: Before pulling the module, rule out PROFIBUS cable faults first — check termination resistors at both ends of the segment, verify the bus connector is seated, and confirm the DP master is not in STOP mode. If the master diagnostics show a consistent Station Failure on this slave address and all other slaves on the segment are healthy, the 6ES7155-6BU00-0CN0 is the prime suspect.

PROFIBUS address retention: The ET 200SP IM does not have physical DIP switches for address setting — the PROFIBUS DP address is stored in the module’s non-volatile memory and is set via the DP master during commissioning (or via a handheld programmer). When you install a replacement module, it ships with address 126 (factory default). You must reassign the correct DP address before the master can communicate with it. Use your TIA Portal project or STEP 7 HW Config to download the station configuration, or use a PROFIBUS tester (e.g., Softing PB-T3) to set the address directly on the bus.

GSD file version matching: Confirm the GSD file version in your HW Config matches the firmware revision of the replacement module. Mismatched GSD versions are a common cause of Configuration Error diagnostics after swap. Download the correct GSD from the Siemens Industry Online Support portal using the exact order number 6ES7155-6BU00-0CN0.

BaseUnit compatibility: The 6ES7155-6BU00-0CN0 mounts on a dedicated IM BaseUnit — it is not interchangeable with standard I/O BaseUnits. Verify the BaseUnit on the rail is the correct IM type before installing. If the BaseUnit itself is damaged (cracked bus connector, burnt contacts), replace it simultaneously to avoid repeat failures.

Power sequencing after replacement: After seating the new IM, power up the 24 V supply before enabling the DP master. This allows the IM to complete its self-test and appear on the bus before the master begins its startup scan. Powering the master first can cause the master to log the station as failed and require a manual restart of the DP cycle.

Common fault codes to expect during commissioning:

• 0x0E / Station Failure: IM not responding — check address assignment and cable integrity.
• 0x09 / Configuration Error: GSD mismatch or I/O module count differs from HW Config — re-download configuration.
• 0x07 / Parameter Error: Incorrect parameterization data — verify DP V1 parameter block in HW Config.
• BF LED solid red, SF LED off: No PROFIBUS communication — check bus termination and cable continuity.
• BF LED flashing: IM on bus but configuration not yet downloaded — normal during initial commissioning.

Reliability in Harsh Conditions

The ET 200SP platform was engineered for cabinet installations where conditions are rarely ideal. The 6ES7155-6BU00-0CN0 is rated to withstand sinusoidal vibration per IEC 60068-2-6 (10–58 Hz, 0.075 mm amplitude; 58–150 Hz, 1 g) and shock loads per IEC 60068-2-27 (15 g, 11 ms half-sine). In automotive body shops and stamping press environments where cabinet panels flex and vibrate continuously, this matters — a module that works loose or develops intermittent contact faults under vibration is worse than a clean failure.

Thermal performance is equally critical. The module is rated for 0–60 °C ambient in horizontal mounting, with derating curves available for vertical installation. In practice, we’ve seen these modules deployed in outdoor enclosures in Southeast Asian climates where cabinet internal temperatures regularly hit 55 °C in summer — the module handles it without complaint, provided the cabinet ventilation is maintained. The conformal coating on the PCB provides additional protection against humidity and condensation, which is particularly relevant in food processing and coastal industrial environments.

EMC immunity is certified to IEC 61000-6-2 (industrial immunity), covering conducted and radiated RF interference, electrostatic discharge, and fast transients. In steel mills and heavy motor drive environments where the electrical noise floor is brutal, the IM’s shielded PROFIBUS interface and robust ground bonding design keep communication stable where lesser hardware would be dropping frames.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international air freight terminals. For urgent orders, we ship via DHL Express or FedEx International Priority, with typical transit times as follows:

• Southeast Asia (SG, MY, TH, VN, ID): 2–3 business days
• East Asia (JP, KR, TW): 2–3 business days
• Middle East (AE, SA, QA): 3–4 business days
• Europe (DE, NL, PL, TR): 3–5 business days
• North America (US, CA, MX): 4–6 business days
• South America (BR, CL, CO): 5–8 business days
• Australia / New Zealand: 3–5 business days

Every shipment includes a commercial invoice, packing list, and HS code declaration (HS 8537.10) for smooth customs clearance. For customers in countries with import duty sensitivities, we can advise on Incoterms (EXW, FOB, DAP, DDP) and provide supporting documentation. We have shipped to 60+ countries and understand the customs requirements for industrial electronics in most major markets.

Same-day dispatch is available for orders confirmed before 14:00 CST. For critical downtime situations, contact us directly on WhatsApp for real-time stock confirmation and shipping coordination — we don’t route urgent requests through a ticketing system.
