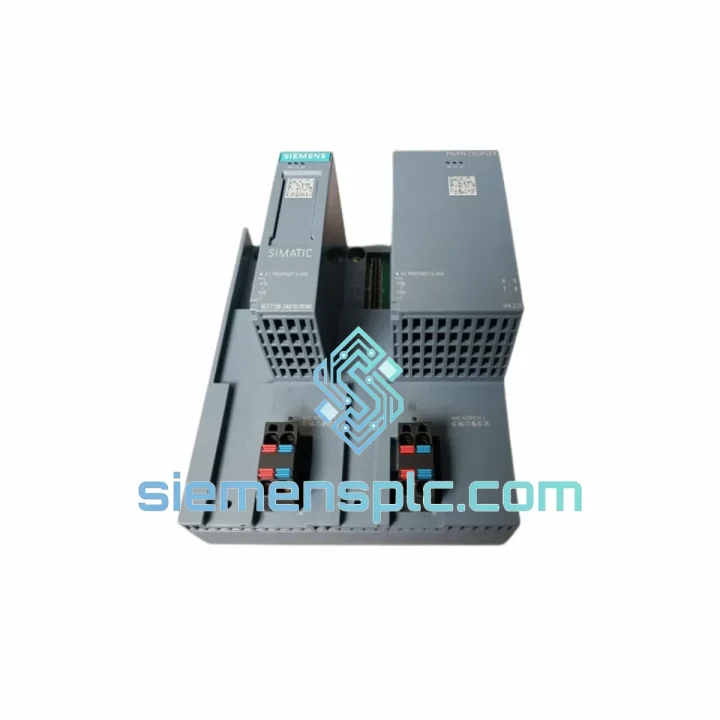

Siemens 6ES7158-3AD10-0XA0 PROFIBUS Coupler – SIMATIC ET 200

Siemens 6ES7158-3AD10-0XA0 — Dual-Segment PROFIBUS DP Coupler for Cross-Network I/O Exchange

In distributed automation architectures where two independent PROFIBUS DP networks must exchange process data without sharing a common DP master, the Siemens 6ES7158-3AD10-0XA0 is the hardware-defined solution. Classified within the SIMATIC ET 200 product family, this module functions as a transparent, master-independent DP/DP coupler — it bridges two galvanically isolated PROFIBUS DP segments and maps I/O data bidirectionally at up to 244 bytes per direction, without requiring any CPU program logic or function block intervention on either side.

The module operates as a DP slave on both networks simultaneously. Each DP master perceives it as a standard slave device, configured via the Siemens GSD file (SIEM80B3.GSD). The internal data exchange between the two slave interfaces is handled by the module’s onboard microcontroller, which maintains a shared dual-port memory buffer. This architecture decouples the two DP bus cycles entirely: DP1 and DP2 operate on independent timing domains, each auto-detecting baud rates from 9.6 kbit/s up to 12 Mbit/s. The result is deterministic I/O coupling with no cross-segment bus loading and no shared token-passing dependency.

Real-time stock availability and pricing: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7158-3AD10-0XA0 implements a dual-slave architecture using two independent PROFIBUS ASIC controllers — one per DP port — connected internally through a shared dual-port RAM (DPRAM) block managed by an onboard supervisory microcontroller. This design has several direct engineering consequences:

Bus Cycle Independence: Because each PROFIBUS ASIC handles its own token-ring participation independently, the bus cycle time of DP1 has zero influence on the bus cycle time of DP2. A slow DP1 master with a 10 ms cycle does not introduce jitter into a DP2 network running at 1 ms. The DPRAM acts as a double-buffered exchange area: the DP1 ASIC writes its received output data into one buffer half while the DP2 ASIC reads from the other, with atomic swap controlled by the supervisory MCU. This prevents torn reads and ensures data consistency across the coupling boundary.

Galvanic Isolation Architecture: The RS-485 physical layer on both DP ports is isolated from the internal logic supply and from each other using DC/DC converter-based power isolation and optocoupler-based signal isolation. The isolation barrier is rated to withstand transient voltages typical of industrial environments — ground potential differences between cabinet sections, inductive switching transients from motor drives, and common-mode noise from long cable runs. This is not a software-configurable feature; it is a fixed hardware property of the PCB layout, making the isolation unconditional regardless of firmware state.

EMC Design: The module’s PCB employs a multi-layer stackup with dedicated ground planes separating the two DP signal domains. Ferrite beads and π-filter networks on the RS-485 lines suppress high-frequency common-mode interference. The metal housing provides shielding continuity, and the DIN rail clip establishes a low-impedance chassis ground path, which is essential for compliance with EN 61000-6-2 Class A immunity levels in environments with variable-frequency drives and high-current switching equipment.

Diagnostic State Machine: The onboard MCU continuously monitors both DP interfaces for bus errors, framing errors, and watchdog timeout conditions. If either DP master stops polling the coupler (watchdog expiry), the module sets its internal I/O data to a defined safe state (configurable as zero or freeze-last-value via GSD parameterisation) and asserts a diagnostic flag visible to both masters. This fail-safe behaviour is implemented in hardware-resident firmware, not dependent on any external CPU.

System Integration Benefits

• Zero-Code Cross-Network I/O: Data exchange between the two DP segments requires no function blocks, no SFC calls, and no CPU program modifications. Configuration is entirely within the hardware configuration tool (STEP 7 HW Config or TIA Portal Device Configuration).
• Heterogeneous Master Compatibility: The module conforms to PROFIBUS DP-V0 and DP-V1 standards (IEC 61158), making it compatible with DP masters from Siemens, Beckhoff, Phoenix Contact, Hilscher, and any other vendor whose master implements the standard protocol stack.
• Independent Baud Rate per Segment: DP1 and DP2 can operate at entirely different baud rates. This is critical in brownfield integrations where legacy segments run at 187.5 kbit/s and new segments run at 12 Mbit/s.
• Deterministic Latency Bound: The DPRAM exchange introduces a bounded, predictable latency of one DP bus cycle on each side. There is no variable queuing delay, making the coupling suitable for applications with defined inter-network synchronisation requirements.
• Electrical Isolation for Safety Compliance: The galvanic isolation between DP1 and DP2 satisfies the electrical separation requirements in installations where the two networks belong to different safety zones or are powered from different distribution panels.
• Diagnostic Transparency: Both DP masters receive standard DP diagnostic frames from the coupler, including module status and data exchange state. This allows existing SCADA and HMI diagnostic screens to display coupler health without additional engineering.
• ATEX Zone 2 Certification: The module carries ATEX II 3 G Ex nA IIC T4 certification, permitting installation in Zone 2 hazardous areas (gas group IIC, temperature class T4) without additional enclosure requirements, subject to installation rules.
• Compact Footprint for Retrofit Projects: At 40 mm wide on a standard 35 mm DIN rail, the module occupies minimal panel space. In retrofit scenarios where existing cabinets have limited spare width, this form factor avoids the need for cabinet extensions.
• Watchdog-Based Safe State: Configurable watchdog timeout on each DP port ensures that a master failure on one network does not leave the other network receiving stale or undefined data — a requirement in process applications with interlock logic.
• No Additional Power Supply Required: The module draws from a single 24 V DC supply rail, which is universally available in SIMATIC control cabinets. No separate isolated supply or DC/DC converter is needed at the installation point.

Quality Assurance & Global Logistics

Every Siemens 6ES7158-3AD10-0XA0 unit dispatched from our Xiamen, China facility is a genuine Siemens-manufactured component. Authenticity verification includes label inspection (laser-engraved MLFB, date code, and factory serial number cross-referenced against Siemens product databases), housing integrity check, and connector condition assessment against factory reference samples.

Functional verification is performed on a reference PROFIBUS DP test bench: the unit is powered at 24 V DC, both DP ports are connected to active DP masters, and bidirectional data exchange is confirmed across the full I/O range. Units that do not pass this bench test are quarantined and not dispatched.

Packaging follows IEC 61340-5-1 ESD protection requirements: anti-static bag, foam cushioning, and double-wall corrugated carton rated for international air and sea freight. Each shipment includes a test record, commercial invoice, packing list, and certificate of origin. Export documentation for EU, US, Southeast Asia, and Middle East customs clearance is prepared as standard.

Logistics from Xiamen: standard international express (DHL / FedEx / UPS) delivers to most destinations within 3–5 business days. Sea freight consolidation is available for bulk orders. Incoterms supported: EXW, FOB Xiamen, DAP, DDP. A 12-month warranty covers manufacturing defects and functional failure under rated operating conditions. Dead-on-arrival units are replaced or credited within 5 business days of confirmed fault documentation.
