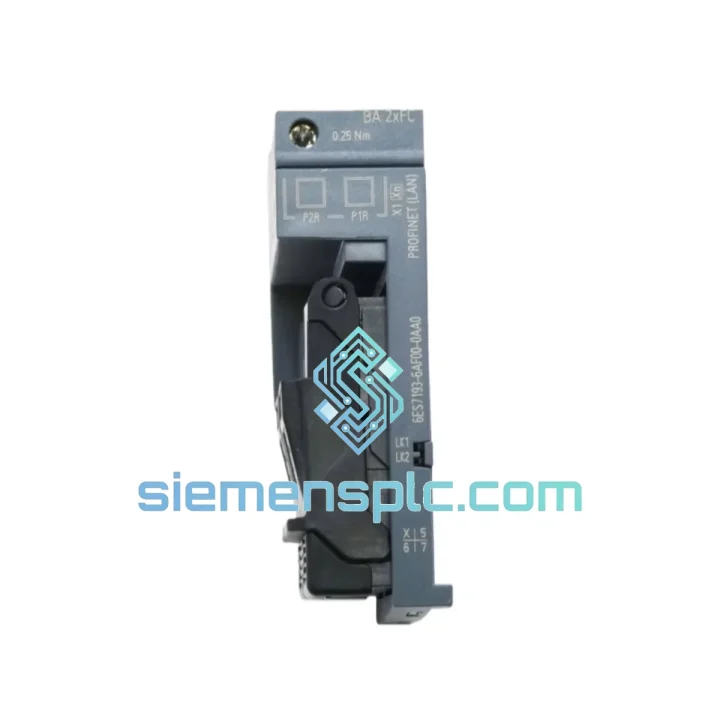

Siemens 6ES7193-6AF00-0AA0 Bus Adapter

6ES7193-6AF00-0AA0 — Stop the Clock on Your Downtime. Ship Today.

Every minute your ET 200SP rack sits offline, the cost meter is running. A failed bus adapter on a PROFINET line doesn’t just halt one machine — it can cascade across an entire production cell. The Siemens 6ES7193-6AF00-0AA0 BA 2×RJ45 is a direct, plug-and-play replacement that restores your PROFINET ring or line topology without firmware re-flashing, without re-engineering, and without waiting three weeks for a factory order. We stock it in Xiamen. We ship it today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here’s what actually goes wrong with the 6ES7193-6AF00-0AA0 and what to watch before you swap it out:

1. Confirm the fault is the adapter, not the BaseUnit or cable. The most common misdiagnosis: the RJ45 port on the adapter shows no link LED, but the fault is actually a bent pin inside the patch cable connector or a corroded port on the upstream switch. Before pulling the adapter, swap the cable first. If the link LED still won’t come up on either RJ45 port, the adapter is the culprit.

2. PROFINET station name and IP address are stored in the IM module — not the bus adapter. This is the single most important thing to know before replacement. The BA 2×RJ45 itself carries no configuration data. You do not need to re-assign the PROFINET device name or IP address after swapping the adapter. The IM 155-6 retains all parameters. No TIA Portal download required for the adapter swap alone.

3. Hot-swap procedure. The ET 200SP is designed for hot-swap on the bus adapter level. Power does not need to be removed from the BaseUnit. However, confirm your IM module firmware supports hot-swap (IM 155-6 PN ST from V1.1 onward). Older firmware versions may require a rack power cycle after adapter replacement to re-establish PROFINET communication.

4. Common diagnostic codes after adapter failure:

• 0x0000 / Station failure in TIA Portal: IM module lost PROFINET connection — check adapter RJ45 link LEDs first.
• SF LED solid red on IM module: Hardware fault detected. If no other I/O errors are present, suspect the bus adapter or cable.
• BF LED flashing on IM module: Bus fault — no PROFINET frames received. Adapter or upstream switch port issue.
• Intermittent SF/BF cycling: Often caused by a cracked RJ45 latch on the adapter causing micro-disconnects under vibration. Replace the adapter even if it appears functional at rest.

5. Topology note for ring configurations. If your installation uses MRP (Media Redundancy Protocol) ring topology with two RJ45 ports active, after replacing the adapter you must verify the MRP role (Manager / Client) is correctly re-established in TIA Portal diagnostics. A ring break alarm will persist until both ports re-negotiate. This typically resolves within 30 seconds of adapter seating — if it doesn’t, check the MRP domain configuration in the network view.

6. No DIP switches, no address coding required. Unlike older Siemens DP/PA adapters, the BA 2×RJ45 has zero hardware configuration. No rotary switches, no jumpers. Seat it, click it in, done.

Reliability in Harsh Conditions

Industrial cabinets are not server rooms. The 6ES7193-6AF00-0AA0 is engineered to operate where conditions are genuinely hostile — and it shows in the design choices Siemens made.

The snap-on locking mechanism is not just for convenience. It provides a positive mechanical retention that resists the micro-movement caused by continuous vibration on machine frames, conveyor drives, and press lines. In automotive body shop applications where weld spatter and electromagnetic interference are constant, the shielded RJ45 ports maintain signal integrity where unshielded alternatives fail within months.

The operating temperature ceiling of +60 °C is validated for continuous operation — not a peak rating. In poorly ventilated control cabinets during summer production runs, ambient temperatures inside the enclosure routinely exceed 45 °C. The 6ES7193-6AF00-0AA0 handles this without derating. The IP20 rating keeps conductive dust off the internal circuitry in woodworking, cement, and mineral processing environments where fine particulate is unavoidable.

ATEX Zone 2 certification means this adapter can be deployed in areas where flammable gas or vapor may occasionally be present — chemical plants, paint booths, solvent handling areas. This is not a feature most engineers need every day, but when you do need it, there is no substitute.

Every unit we ship has been stored in climate-controlled conditions and inspected for connector integrity before dispatch. We do not ship units with oxidized contacts or cracked housings. If it leaves our warehouse, it works.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most connected export ports in Asia, with direct DHL and FedEx gateway access. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day dispatch to DHL Express or FedEx International Priority.
• Europe (Germany, France, Italy, Poland): 2–3 business days door-to-door via DHL Express.
• North America (USA, Canada, Mexico): 2–4 business days via FedEx International Priority.
• Southeast Asia (Thailand, Vietnam, Indonesia, Malaysia): 1–2 business days via DHL Express.
• Middle East & India: 3–5 business days via DHL or FedEx.
• Australia & New Zealand: 3–4 business days via DHL Express.

Every shipment includes a commercial invoice, packing list, and HS code declaration (HS 8538.90) for smooth customs clearance. For customers in the EU, we provide EORI-compatible documentation. For customers in the US, we provide HTS-coded entry documents. We have shipped to over 60 countries — customs delays caused by incorrect documentation are not something our customers experience.

For plant shutdowns or production emergencies where standard express is not fast enough, contact us directly. We have arranged same-day courier handoffs and charter freight for critical situations. The conversation starts at [email protected] or WhatsApp +86 18359268345.
