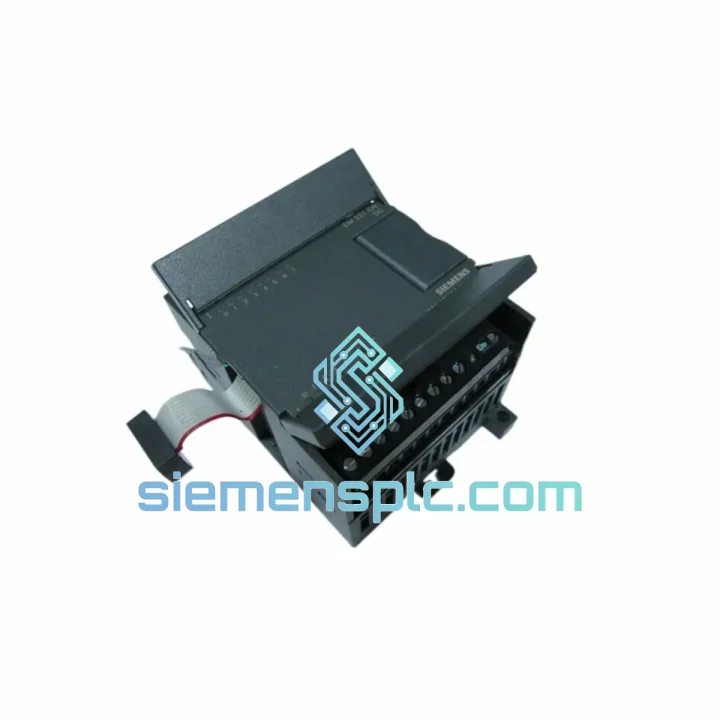

Siemens 6ES7221-1BH22-0XA8 Digital Input Module

6ES7221-1BH22-0XA8 — Every Hour of Downtime Costs You. We Ship Today.

Your S7-200 line is down. The CPU is throwing I/O faults. The 16DI expansion module is dead and your maintenance team is standing around waiting. You’ve been there — we’ve been there. The Siemens 6ES7221-1BH22-0XA8 is a 16-channel, 24V DC digital input expansion module for the SIMATIC S7-200 platform. We stock it in Xiamen. We ship it today. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of S7-200 field failures, here are the patterns that actually matter when you’re swapping a 6ES7221-1BH22-0XA8 under pressure:

1. Confirm the fault is the module, not the wiring. Before you pull the module, check the input LEDs. If all 16 LEDs are dark with field power confirmed at the terminal block, the module’s input circuit is gone — replace it. If LEDs are erratic or flickering, suspect a ground loop or a shorted sensor before condemning the module.

2. S7-200 vs S7-200 SMART — do not mix them. The 0XA8 suffix is S7-200 classic. The SMART platform uses a physically different expansion bus connector (6ES7221-1BH32-0XB0). Forcing the wrong module onto the bus will damage the CPU backplane. Check the CPU label before ordering.

3. Expansion bus address is auto-assigned — no DIP switches needed. Unlike S7-300 slot-based addressing, the S7-200 assigns I/O addresses automatically based on module position from left to right. After replacement, the new module inherits the same address as the old one — no STEP 7-Micro/WIN reconfiguration required, provided you slot it in the same physical position.

4. Power budget check before hot-swap. The 6ES7221-1BH22-0XA8 draws 5V DC from the expansion bus (supplied by the CPU). Each S7-200 CPU has a finite 5V bus current budget. If you’re running a full rack of expansion modules, verify the CPU’s remaining 5V budget before adding another module. Exceeding it causes intermittent faults across all modules — a notoriously difficult fault to diagnose on-site.

5. Common fault codes to watch:

• SF LED solid red on CPU — I/O bus fault. Pull modules one by one to isolate. A failed 6ES7221-1BH22-0XA8 will often cause this.
• All inputs reading 0 in STEP 7-Micro/WIN status table — Module not recognized on bus. Check expansion cable seating and module locking tab.
• Intermittent input chattering — Input filter delay set too low for noisy field environment. Increase filter time in STEP 7-Micro/WIN system block configuration.
• Module recognized but inputs stuck HIGH — Internal optocoupler failure. Module must be replaced; no field repair possible.

6. Firmware matching. The 6ES7221-1BH22-0XA8 has no user-upgradeable firmware — it’s a passive I/O module. No firmware compatibility check is required. However, if your CPU firmware is below V2.0, some diagnostic features may not report module faults correctly. Update CPU firmware via STEP 7-Micro/WIN if you’re running legacy versions.

7. Terminal block transfer. The screw terminal block is removable. In a time-critical swap, transfer the wired terminal block from the failed module to the new one — zero rewiring, zero labeling errors. Confirm terminal block part number matches before transfer.

Reliability in Harsh Conditions

Industrial environments don’t care about your maintenance schedule. The 6ES7221-1BH22-0XA8 is built to operate where conditions are hostile by design.

Vibration resistance: Rated to IEC 68-2-6 sinusoidal vibration standards. DIN-rail mounting with the module’s locking mechanism engaged provides additional mechanical stability in high-vibration applications such as press lines, compressor rooms, and mobile equipment panels.

Thermal performance: Continuous operation from 0°C to +55°C ambient. In practice, panel temperatures in summer production environments in Southeast Asia and the Middle East regularly hit 45–50°C. The module’s thermal design handles this without derating — provided panel ventilation is adequate. Storage down to -40°C means cold-chain warehousing and outdoor cabinet installations are not a concern.

Electrical noise immunity: Optocoupler isolation on every input channel provides galvanic separation between field wiring and the CPU bus. This is critical in environments with variable-frequency drives, welding equipment, or long cable runs where common-mode noise is a daily reality. The module meets IEC 61000-4 EMC immunity standards for industrial environments.

Humidity and condensation: Rated for 10–95% relative humidity, non-condensing. For applications in humid coastal or tropical environments, ensure the control panel maintains positive pressure or uses a filtered ventilation system to prevent condensation on the PCB.

IP20 protection: Suitable for installation inside standard IP54 or better control enclosures. Not rated for direct exposure to dust or water — always install in a properly sealed panel.

Global Express Logistics

We operate from Xiamen, Fujian — one of China’s primary export hubs with direct access to international freight lanes. When you place an order before 14:00 CST, the module ships the same business day.

Shipping options:

• DHL Express Worldwide — 1–3 business days to most destinations in Europe, North America, Southeast Asia, and the Middle East. Real-time tracking from pickup to delivery.
• FedEx International Priority — 1–2 business days to the US, Canada, and Mexico. Preferred for North American customers with urgent timelines.
• SF Express International — Cost-effective option for destinations within Asia-Pacific. 2–5 business days depending on destination country.

Customs and documentation: We prepare full commercial invoice, packing list, and certificate of origin for every shipment. For customers requiring a certificate of conformity or inspection report, request at time of order — we include it at no additional charge. HS code 8537.10 applies to this module for customs classification in most jurisdictions.

Packaging: Each unit ships in anti-static ESD packaging inside a rigid outer carton with foam inserts. The module arrives in the same condition it left our warehouse — no transit damage, no loose connectors.

Emergency freight: For critical plant shutdowns where standard express is not fast enough, contact us directly via WhatsApp. We can arrange charter courier or hand-carry options for select destinations when production loss justifies the cost.
