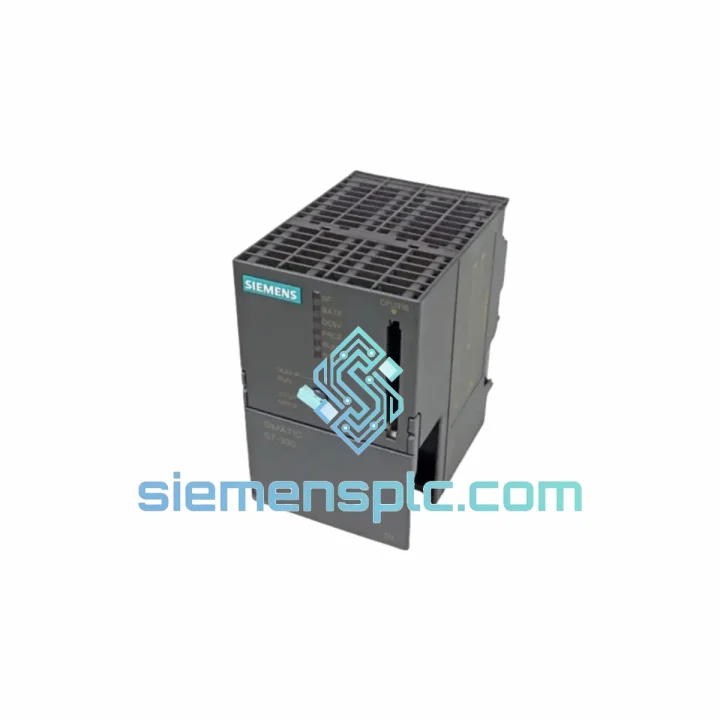

Siemens 6ES7315-1AF01-0AB0 CPU Module

6ES7315-1AF01-0AB0 CPU 315-1 — Stop the Clock on Your Downtime

Every minute your S7-300 rack sits dead, the losses compound. Rejected batches, idle labor, missed delivery windows — the cost of a failed CPU module is never just the part price. The Siemens 6ES7315-1AF01-0AB0 CPU 315-1 is one of the most widely deployed mid-range controllers in global discrete and process manufacturing, and when it fails, you need a verified replacement in hand before the next shift starts — not in three weeks.

We stock the 6ES7315-1AF01-0AB0 in Xiamen and ship same-day or next business day via DHL Express and FedEx International Priority. Every unit is inspected, bench-verified, and dispatched with full export documentation. No gray-market risk. No refurbished surprises. If your line is down, this is the call you make first.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 6ES7315-1AF01-0AB0 fails in predictable ways. Knowing the failure signature before you pull the module saves you from chasing ghosts in the rack.

Common fault indicators:

• SF (System Fault) LED solid red + BF LED off: Internal CPU error — hardware fault confirmed. The module is not recoverable via software reset. Replace immediately.
• STOP mode with OB121/OB122 calls in diagnostics: Programming error or I/O access fault. Before condemning the CPU, verify the rack slot addressing hasn’t shifted after a prior module swap.
• MPI communication loss (HMI/SCADA drops offline): Check MPI termination resistors at both ends of the bus first. If termination is correct and the CPU still won’t respond, the MPI ASIC on the CPU board is likely damaged — common after surge events.
• CPU boots to STOP immediately after power-on: Memory card mismatch. The 6ES7315-1AF01-0AB0 requires a compatible SIMATIC Memory Card (e.g., 6ES7952-1KK00-0AA0). If the card holds a program compiled for a different CPU order number or firmware version, the CPU will refuse to run.

Replacement procedure — field checklist:

• Power down the rack via the PS module. Do not hot-swap a CPU 315-1 — the backplane bus does not support it.
• Note the current MPI node address (default: 2). The replacement CPU ships with MPI address 2 from factory, but confirm against your network topology before powering up.
• Remove the Memory Card from the failed unit before discarding. The program resides on the card, not in the CPU’s volatile RAM. Seat the card in the replacement module before first power-on.
• No DIP switches on this CPU — slot addressing is handled automatically via the rack backplane. No manual configuration required after physical installation.
• On first power-up, the CPU will read the Memory Card and transition to RUN if the program is compatible. If it stays in STOP, connect STEP 7 or TIA Portal via MPI and check the diagnostic buffer (OB = 0 entries means clean boot).
• Firmware version: this CPU runs firmware V1.x. Do not attempt to load firmware intended for 6ES7315-2AF03-0AB0 or later variants — the hardware architecture differs.

Reliability in Harsh Conditions

The S7-300 platform was engineered for the factory floor, not the server room. The 6ES7315-1AF01-0AB0 carries IEC 61131-2 compliance and has been validated against the environmental stresses that kill lesser hardware.

Vibration resistance is rated to 10–58 Hz at 0.075 mm amplitude and 58–150 Hz at 1 g — sufficient for mounting on machine frames subject to continuous mechanical vibration from presses, compressors, and conveyor drives. The conformal-coated PCB resists condensation and airborne contaminants including cutting fluid mist and hydraulic oil vapor, which are endemic in machining and metalworking environments.

Operating temperature ceiling of 60 °C means the module survives in poorly ventilated control cabinets during summer shutdowns without thermal throttling or data corruption. The backplane bus connectors are gold-plated and rated for 100+ insertion cycles — relevant when you’re doing repeated module swaps during commissioning or troubleshooting campaigns.

ATEX Zone 2 and FM Class I Division 2 certification makes this CPU deployable in areas with occasional explosive atmosphere risk — chemical dosing stations, paint booths, and solvent handling areas — without requiring a purged enclosure, provided the cabinet itself meets the installation standard.

Global Express Logistics

Our dispatch operation runs out of Xiamen, Fujian — one of China’s primary industrial export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent orders received before 15:00 CST, same-day dispatch is standard. Orders placed after cutoff ship the following business day.

Transit times to major industrial regions: Southeast Asia 2–4 business days, Europe 3–5 business days, North America 4–6 business days, Middle East and South Asia 3–5 business days. All shipments travel under commercial invoice, packing list, and certificate of origin. HS Code 8537.10 applies to this module for customs classification. We pre-fill all export documentation to eliminate clearance delays at destination.

For customers in countries with import licensing requirements for industrial control equipment, we advise confirming import compliance before ordering. We provide full technical datasheets and ECCN classification documentation on request to support your import declaration.

Bulk orders of 5 units or more qualify for sea freight consolidation with significantly reduced per-unit logistics cost. Lead time for sea freight is 15–25 days port-to-port. Contact us for a freight quote alongside your unit pricing.
