Siemens 6ES7952-1KK00-0AA0 PLC Memory Card – SIMATIC S7-400

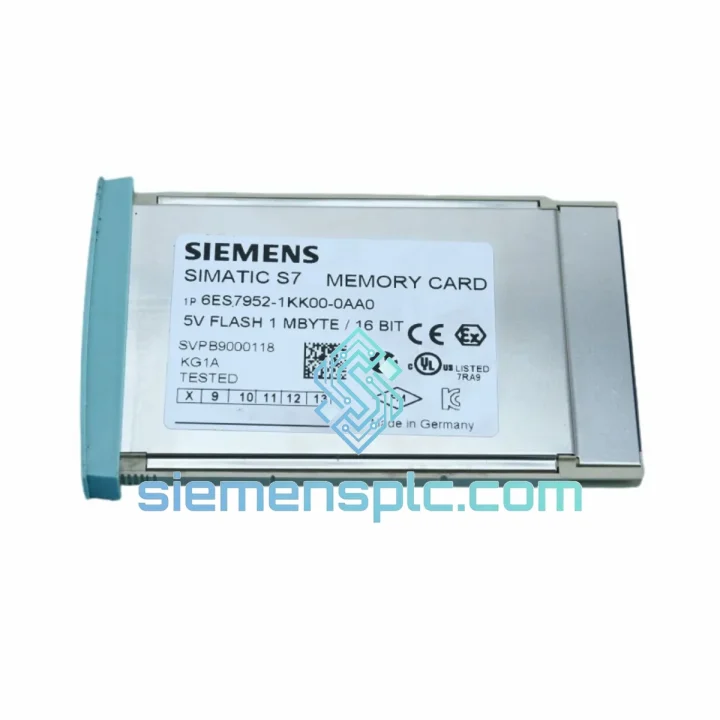

Siemens 6ES7952-1KK00-0AA0 — 1 MB MC 952 Flash Card for SIMATIC S7-400 Load Memory Architecture

The 6ES7952-1KK00-0AA0 is a 1 MB SIMATIC Micro Memory Card (MC 952) engineered exclusively for the SIMATIC S7-400 PLC platform. Within the S7-400 memory hierarchy, this card occupies the load memory tier — the non-volatile repository from which the CPU transfers user program blocks, data blocks, and system data into internal work memory (RAM) at each power-up cycle. Unlike battery-backed SRAM solutions, the MC 952 relies on NOR-type flash cells that retain data for a minimum of ten years without any auxiliary power source, eliminating a chronic maintenance liability in unmanned or remote installations.

The card interfaces with the CPU through a proprietary SIMATIC card slot — electrically and mechanically distinct from standard CompactFlash or SD formats — ensuring that only validated Siemens memory modules can be inserted, which prevents accidental use of incompatible media. Compatible CPU families include the CPU 412, CPU 414, CPU 416, CPU 417, and all fault-tolerant H-series variants (CPU 41x-H), covering the full S7-400 performance range from entry-level process control to high-availability redundant architectures.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MC 952 employs NOR flash architecture rather than NAND, a deliberate design choice with direct implications for industrial reliability. NOR flash supports true random-access reads at the byte level, allowing the S7-400 CPU to execute a partial block read during the load-to-work-memory transfer without requiring full-page buffering. This reduces the CPU initialization time after a cold restart — a measurable advantage in applications where restart-to-ready intervals are contractually bounded.

The flash array is organized in independently erasable sectors. Siemens’ wear-leveling firmware distributes write operations across sectors to prevent premature cell exhaustion in high-frequency data-block update scenarios. Each sector carries an embedded error-correction code (ECC) layer that detects and corrects single-bit errors transparently, with multi-bit error detection triggering a CPU diagnostic event rather than silent data corruption — a behavior consistent with IEC 61508 SIL-capable system design principles.

Electromagnetic compatibility is addressed at the card level through a shielded card body and filtered signal lines on the interface pads. The S7-400 backplane itself provides additional EMC isolation via the CPU’s internal card slot shielding, making the combined assembly compliant with EN 61000-4-4 (electrical fast transient) and EN 61000-4-6 (conducted RF immunity) without additional external filtering. In high-noise environments — variable-frequency drive cabinets, arc furnace control rooms, or traction substations — this layered EMC architecture maintains data integrity without requiring physical separation from interference sources.

The card’s write-protect mechanism is implemented in hardware: a physical tab on the card body, not a software flag. This means write protection cannot be overridden by a software fault, a runaway program, or an unauthorized STEP 7 / TIA Portal operation, providing a deterministic safeguard for production-frozen program versions.

System Integration Benefits

• Battery-independent load memory: Program and data block retention is guaranteed by flash physics, not by a lithium cell with a finite service life. This removes a scheduled maintenance item and eliminates the risk of program loss from an undetected battery failure during a plant shutdown.
• Deterministic cold-start behavior: The CPU’s load-to-work-memory transfer from NOR flash is completed in a fixed, predictable time window, supporting precise restart sequencing in coordinated multi-CPU installations.
• Firmware update medium: The MC 952 serves as the carrier for SIMATIC S7-400 CPU operating system updates distributed by Siemens, consolidating program storage and firmware management into a single removable medium.
• Program transfer between CPUs: The card can be physically moved between compatible S7-400 CPUs of identical type to replicate a control program without a programming device, reducing commissioning time for multi-unit installations.
• Hardware write protection: The physical write-protect tab prevents accidental or unauthorized program modification at the hardware level, independent of software access controls — a requirement in validated pharmaceutical and nuclear applications.
• Transparent diagnostic integration: Multi-bit ECC errors generate entries in the S7-400 CPU diagnostic buffer, visible in STEP 7 / TIA Portal without additional configuration, maintaining full diagnostic transparency within the existing engineering workflow.
• Standardized replacement procedure: The card is a direct plug-in replacement across the entire S7-400 CPU family. No jumper changes, address configuration, or software parameter adjustment is required after card substitution — reducing mean time to repair (MTTR) in corrective maintenance scenarios.
• Extended temperature storage: The −40 °C to +85 °C storage range allows the card to be pre-loaded with a program and stored in an unheated warehouse or spare-parts depot without data degradation, supporting strategic spare-parts inventory strategies for long-lifecycle plant assets.
• Compatibility with redundant H-systems: In S7-400H fault-tolerant configurations, each CPU module requires its own MC 952 card. The 6ES7952-1KK00-0AA0 is validated for use in both primary and standby CPU slots, ensuring symmetric memory architecture in the redundant pair.

Quality Assurance & Global Logistics

Every 6ES7952-1KK00-0AA0 unit dispatched from our Xiamen facility is sourced through verified industrial supply channels and subjected to a structured pre-shipment inspection protocol. Label verification cross-references the MLFB code, date code, and country-of-origin marking against Siemens’ published product documentation. Each card is handled in an ESD-controlled environment from receipt through packaging, using anti-static bags and foam-lined cartons that meet IEC 61340-5-1 requirements for electrostatic discharge protection of sensitive components.

Shipment from Xiamen, China reaches major industrial hubs on the following typical transit schedules: Southeast Asia 2–4 business days, Europe 5–8 business days, North America 5–7 business days, Middle East and Africa 6–10 business days. Express courier options (DHL Express, FedEx International Priority) are available for urgent requirements. All shipments include a commercial invoice with HS code 8473.30 pre-declared for customs clearance efficiency. A certificate of conformity and sourcing declaration is available upon request for regulated procurement environments.

The 12-month warranty covers verified manufacturing defects and functional failures under normal operating conditions as defined in the Siemens product specification. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit at our facility.
