Siemens 6ES7318-3EL00-0AB0 PLC CPU Module – SIMATIC S7-300

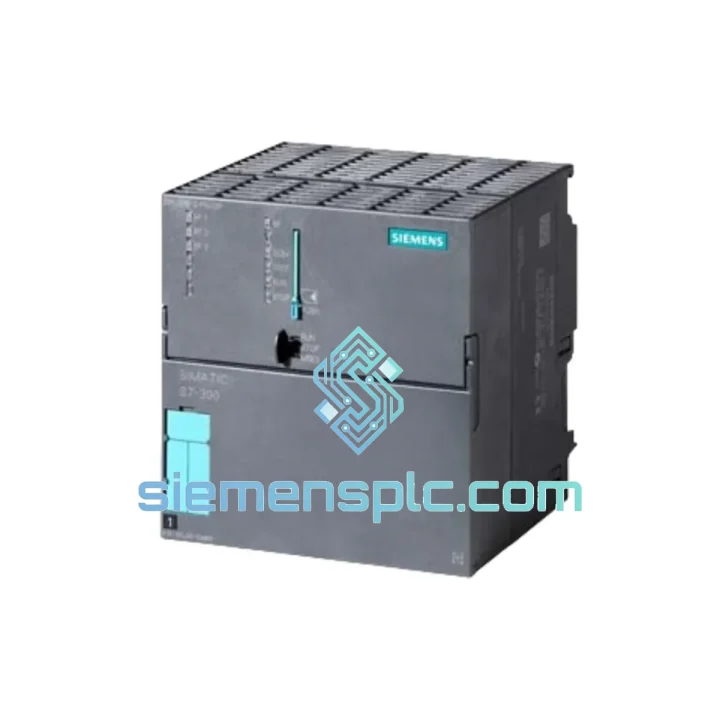

Siemens 6ES7318-3EL00-0AB0 CPU 318-3 PN/DP: Tri-Interface Central Processing Unit for High-Complexity S7-300 Control Architectures

The 6ES7318-3EL00-0AB0 is the highest-specification CPU within the SIMATIC S7-300 modular PLC family. It integrates three independent communication interfaces — MPI/DP, PROFIBUS DP, and PROFINET IO — on a single module, eliminating the need for supplementary communication processors in multi-network topologies. With 2 MB of work memory and a binary instruction cycle time of 0.1 ms per 1,000 instructions, this CPU is engineered for process-intensive applications where deterministic scan-cycle execution and simultaneous multi-protocol field communication are non-negotiable requirements.

Unlike mid-range S7-300 CPUs that rely on CP modules to extend network reach, the 318-3 PN/DP architecture consolidates MPI, PROFIBUS DP master/slave, and PROFINET IO controller functions into the CPU backplane logic itself. This reduces inter-module latency on the S7-300 rack bus and simplifies network commissioning in distributed I/O environments spanning both legacy PROFIBUS field devices and modern PROFINET-capable instruments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7318-3EL00-0AB0 implements a three-bus internal architecture: the S7-300 P-bus (peripheral bus) handles synchronous data exchange with signal modules at the rack level, while the K-bus (communication bus) manages asynchronous inter-module messaging. The CPU’s PROFINET interface operates on a dedicated ASIC that handles IRT (Isochronous Real-Time) frame scheduling independently of the main Athlon-class processor core, ensuring that PROFINET cycle jitter remains below 1 µs even under peak program load — a critical requirement for coordinated motion control across distributed servo drives.

The dual PROFIBUS DP master implementation uses separate DPV1 protocol stacks, each capable of handling up to 125 slaves at 12 Mbit/s. The arbitration logic between the two DP interfaces is managed at the firmware level, with configurable token-passing priority that prevents bus contention during simultaneous acyclic parameter read/write operations (DPV1 Class 1 and Class 2 services). This architecture is particularly relevant in hybrid plants where legacy DP-V0 field devices coexist with DPV1-capable intelligent field instruments requiring on-demand parameter access.

EMC hardening on this module follows Siemens’ standard S7-300 shielding topology: the backplane connector uses a 48-pin gold-plated edge connector with differential signal pairs routed on inner PCB layers, flanked by ground planes on both outer layers. The PROFINET RJ45 ports incorporate integrated magnetics with 1,500 V isolation, and the MPI/DP sub-D9 connectors include TVS diode arrays rated at ±15 kV ESD (IEC 61000-4-2, Level 4). The module’s power supply section uses a DC/DC converter with 500 V galvanic isolation from the 24 VDC input rail, protecting the CPU logic from transients on the plant power bus.

The CPU’s memory management unit separates code memory from data memory at the hardware level, with the 2 MB work memory partitioned into a fixed code segment and a configurable data segment via STEP 7 memory configuration. The integrated Flash EPROM load memory retains the program and configuration data across power cycles without a backup battery, though a lithium backup cell (6ES7971-1AA00-0AA0) is required to retain the real-time clock and retentive data block contents during power loss.

System Integration Benefits

• Deterministic IRT Cycle Execution: The PROFINET IRT mode guarantees a send clock as low as 250 µs with cycle jitter under 1 µs, enabling synchronized multi-axis motion control without an external motion controller.
• Simultaneous Multi-Protocol Operation: MPI, PROFIBUS DP, and PROFINET IO operate concurrently without mutual interference, allowing phased migration from PROFIBUS to PROFINET without replacing the CPU or restructuring the rack.
• Expanded Diagnostic Transparency: DPV1 acyclic services and PROFINET alarm channels provide module-level diagnostics — including channel-specific fault codes from remote I/O — directly in the STEP 7 diagnostic buffer, reducing fault isolation time from minutes to seconds.
• High I/O Address Density: The 8,192-byte I/O address space supports large distributed I/O configurations with ET 200M, ET 200S, and ET 200SP stations without address mapping workarounds.
• Isochronous Mode for Process Control: Isochronous mode (PROFIBUS DP and PROFINET IRT) synchronizes the CPU scan cycle with the fieldbus cycle, eliminating jitter-induced process variability in closed-loop PID and cascade control applications.
• Scalable Redundancy Pathways: The CPU supports S7 communication over MPI for HMI connections while simultaneously running DP and PN field networks, enabling a three-tier communication architecture (field / cell / enterprise) from a single module.
• Web Server Diagnostics: The integrated PROFINET interface hosts a built-in web server accessible via standard browser, providing real-time CPU status, diagnostic buffer, and module information without requiring STEP 7 or TIA Portal on the client machine.
• Backward Compatibility: Full hardware and software compatibility with existing S7-300 racks, power supplies, and signal modules eliminates the need for rack redesign when upgrading from lower-specification S7-300 CPUs.
• Isochronous Real-Time (IRT) Topology Flexibility: Supports line, star, and ring PROFINET topologies with Media Redundancy Protocol (MRP), providing network-level fault tolerance for continuous-process applications where communication interruption is not acceptable.

Quality Assurance & Global Logistics

Every 6ES7318-3EL00-0AB0 unit supplied by siemensplc.com is sourced through verified channels and subjected to a structured pre-dispatch inspection protocol. Physical authentication checks cover label integrity (including Siemens holographic security labels where present), housing parting-line consistency, connector pin geometry, and factory seal condition. Functional verification is performed using SIMATIC STEP 7 or TIA Portal to confirm firmware version, CPU diagnostic buffer integrity, and basic communication response on all three interfaces.

Units are dispatched from our warehouse in Xiamen, Fujian Province, China — a logistics hub with direct access to Xiamen Gaoqi International Airport and Xiamen Port, supporting both air freight and sea freight consolidation. Standard export documentation includes commercial invoice, packing list, and certificate of origin. Form E (ASEAN–China FTA) and EUR.1 movement certificates are available on request for tariff preference purposes.

Shipping carriers include DHL Express, FedEx International Priority, UPS Worldwide Express, and SF International for time-critical orders. Sea freight LCL/FCL consolidation is available for bulk orders of 10 units or more. All units are packed in anti-static ESD bags, placed in foam-lined cartons, and double-boxed for international transit. Inspection records are retained for 24 months and are available to buyers on request.

A 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. Dead-on-arrival (DOA) claims are processed within 7 business days of confirmed delivery with photographic evidence. Replacement units are dispatched via express courier at no additional charge for confirmed DOA cases.
