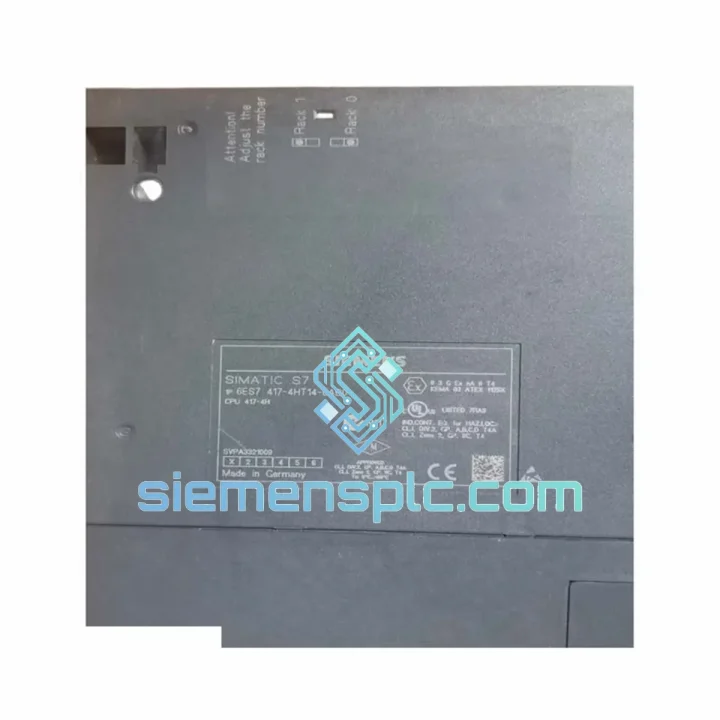

Siemens 6ES7417-4HT14-0AB0 PLC CPU Module – S7-400H

Siemens 6ES7417-4HT14-0AB0 — Hot-Standby Redundant CPU for Continuous-Process Automation

The 6ES7417-4HT14-0AB0 is the highest-performance redundant central processing unit within the SIMATIC S7-400H platform. It is purpose-built for H-system (high-availability) configurations in which two physically separate CPU racks operate in synchronised hot-standby mode. The active CPU executes the user program and mirrors its process image, data blocks, and timer/counter states to the standby CPU across a dedicated fiber-optic synchronisation link. On detection of a fault — hardware failure, power loss, or watchdog timeout — the standby assumes master status within one OB 86 scan cycle, typically under 100 ms, without any perceptible disturbance to the controlled process.

This architecture satisfies the availability requirements of IEC 61511 SIL-rated Safety Instrumented Systems when combined with appropriate F-I/O modules, and it meets the continuous-operation mandates of industries where unplanned downtime carries direct financial or safety consequences.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7417-4HT14-0AB0 implements a dual-CPU synchronisation protocol at the firmware level. Both processors execute an identical copy of the user program in lock-step. After each scan cycle, the active CPU transmits a state snapshot — comprising the process output image, instance data blocks, and internal flag memory — to the standby CPU via the fiber-optic sync link. The standby validates the received state against its own locally computed result. Any divergence triggers a diagnostic event logged to the system diagnostics buffer (SDB) and, depending on severity, initiates a controlled switchover.

Backplane Bus Architecture: The S7-400 backplane uses a parallel P-bus (peripheral bus) for high-speed I/O data transfer and a serial K-bus (communication bus) for configuration and diagnostic traffic. The 6ES7417-4HT14-0AB0 acts as the bus master on both buses. The P-bus operates at a fixed 10 MHz clock, delivering deterministic I/O cycle times independent of the number of installed modules. This separation of data and configuration traffic prevents diagnostic polling from introducing jitter into the real-time control loop — a critical property in fast-response process control.

EMC Design: The module housing is a die-cast aluminium shield bonded to the rack ground rail, providing a Faraday cage around the processor board. All external signal lines enter through filtered connectors. The fiber-optic sync interface provides galvanic isolation between the two H-racks, eliminating ground-loop currents that would otherwise corrupt synchronisation data in electrically noisy plant environments. The MPI/DP interface incorporates opto-isolation on the RS-485 transceiver stage, rated to withstand common-mode voltages up to ±7 V.

Watchdog and Fault Detection: An independent hardware watchdog timer monitors the main processor. If the program scan does not service the watchdog within the configured monitoring time (configurable 1 ms – 6 553 ms), the CPU transitions to STOP state and signals the standby to take over. A secondary voltage supervisor monitors the 5 V backplane rail; a deviation beyond ±5 % triggers an immediate fault response before data corruption can occur.

Memory Architecture: The 30 MB work memory is implemented as battery-backed SRAM, ensuring that data blocks and retentive flags survive a power cycle without requiring a memory card reload. The MMC slot accepts standard SIMATIC Micro Memory Cards for load memory extension, firmware updates, and project archiving — enabling field firmware upgrades without removing the module from the rack.

System Integration Benefits

• Zero-Downtime Switchover: The hot-standby architecture delivers bumpless transfer of control authority. The standby CPU holds a fully synchronised process image at all times, so switchover does not reset outputs or interrupt PID loops — process variables continue tracking without bump.
• Deterministic Scan Cycle: The P-bus master architecture enforces a fixed I/O update sequence regardless of installed module count, guaranteeing scan-cycle jitter below 1 ms for standard configurations. This is essential for closed-loop control of fast processes such as compressor surge control or turbine speed regulation.
• Transparent Online Diagnostics: The CPU populates the S7 diagnostic buffer with timestamped entries for every module fault, communication error, and program exception. These entries are accessible via STEP 7 or TIA Portal without interrupting the running program, enabling root-cause analysis without process shutdown.
• Scalable Distributed I/O: The integrated PROFIBUS DP master supports up to 125 DP slaves per segment, allowing the control system to expand across multiple field cabinets and remote I/O stations without adding a separate communications processor for the primary network.
• Redundant Power Supply Compatibility: The S7-400H rack accepts two PS 407 power supply modules in a redundant configuration. Combined with the redundant CPU pair, this eliminates all single points of failure at the controller level — a prerequisite for IEC 61511 SIL 2/3 system architectures.
• TIA Portal Engineering Workflow: Full support for TIA Portal V13 SP1 and above enables engineers to use modern object-oriented programming constructs, integrated simulation (PLCSIM Advanced), and unified device management alongside legacy STEP 7 projects during phased migration programmes.
• Fiber-Optic Sync Isolation: The galvanically isolated fiber-optic synchronisation link allows the two H-racks to be installed in physically separate cabinets — up to 100 m apart with the extended cable set — providing spatial separation against localised fire, flooding, or mechanical damage events.
• Long-Term Platform Availability: The SIMATIC S7-400 series carries Siemens’ extended product lifecycle commitment. Spare parts, firmware updates, and technical support remain available for the operational life of installed plant, reducing lifecycle cost and obsolescence risk for long-horizon capital projects.

Quality Assurance & Global Logistics

Every 6ES7417-4HT14-0AB0 unit dispatched from our Xiamen, China facility is a genuine Siemens original sourced through verified supply channels. Our procurement process maintains full traceability from manufacturer batch to end customer, with serial number records retained for a minimum of five years to support your incoming inspection and asset management requirements.

Pre-Shipment Inspection Protocol: Each unit undergoes a structured incoming inspection covering label authenticity verification (hologram, date code, country-of-origin marking), packaging integrity assessment, and physical condition check against Siemens factory packaging standards. Units that do not pass inspection are quarantined and returned to the supply chain — they are never offered for sale.

Documentation Package: Every shipment includes a commercial invoice, detailed packing list, Certificate of Conformity (CoC), and HS code classification (HS 8537.10) for customs clearance. Country of Origin certificates and ECCN classification documentation are available on request for export-controlled destinations.

Logistics from Xiamen: Xiamen is a major international port city with direct air freight connections to Europe, North America, Southeast Asia, and the Middle East. Standard export shipments are dispatched via DHL Express or FedEx International Priority, with typical transit times of 3–5 business days to most destinations. Freight forwarder consolidation and sea freight options are available for large-volume orders. Full tracking information and export documentation are provided at time of dispatch.

Warranty Terms: 12-month warranty against manufacturing defects from date of delivery. Dead-on-Arrival (DOA) units are replaced within 30 days of confirmed receipt. Warranty claims are processed with a target response time of one business day.
