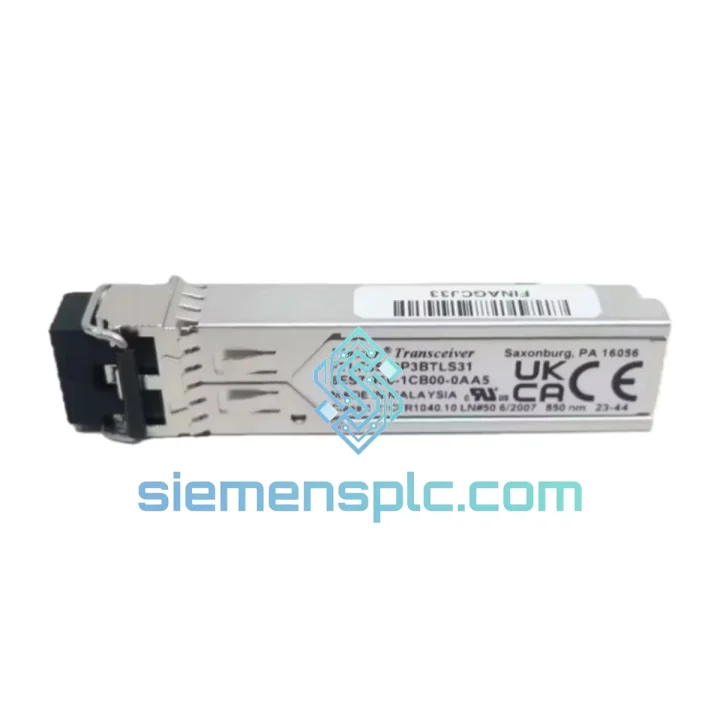

Siemens 6ES7960-1CB00-0AA5 Synchronization Module – SIMATIC S7-400H

6ES7960-1CB00-0AA5: Fiber-Optic Redundancy Synchronization Module for SIMATIC S7-400H Fault-Tolerant Control Systems

The Siemens 6ES7960-1CB00-0AA5 is a dedicated synchronization module engineered for deployment within the SIMATIC S7-400H high-availability PLC architecture. Its primary function is to maintain continuous, deterministic data mirroring between two redundant CPU subsystems operating in hot-standby mode. When one CPU subsystem detects a fault condition — whether hardware-induced, firmware-triggered, or power-related — the 6ES7960-1CB00-0AA5 ensures that the standby CPU has already received a complete, cycle-accurate copy of the process image, enabling bumpless switchover with no perceptible interruption to the controlled process.

Unlike software-based redundancy schemes that rely on shared backplane bandwidth, this module establishes a dedicated fiber-optic synchronization channel physically isolated from the standard S7-400 backplane bus. The duplex fiber interface operates independently of the CPU’s I/O scan cycle, meaning synchronization traffic does not compete with process data exchange or communication module polling. This architectural separation is the foundation of the S7-400H system’s ability to guarantee sub-100 ms switchover times under worst-case load conditions.

The module is mechanically integrated directly into the CPU slot interface of compatible S7-400H CPUs — including the 6ES7414-4HM14-0AB0 and 6ES7417-4HT14-0AB0 — and requires no additional rack slot allocation. Fiber optic cables (e.g., 6XV1820-5BH20 duplex, 2 m) connect the two CPU subsystems across distances ranging from bench-adjacent configurations up to 10 km with appropriate fiber extension hardware, making the 6ES7960-1CB00-0AA5 suitable for geographically distributed redundant control architectures in large-scale process plants.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7960-1CB00-0AA5 implements a master-standby arbitration protocol at the hardware level. Each synchronization cycle, the active CPU transmits a complete snapshot of its process image output (PIO) and process image input (PII) across the fiber link. The standby CPU receives and validates this data against its own internal state. If the standby CPU detects a discrepancy — or if the synchronization heartbeat is absent for a configurable timeout period — it initiates an autonomous switchover sequence without requiring intervention from the PROFIBUS DP master or any higher-level SCADA system.

The fiber optic medium was selected by Siemens engineers specifically to address the electromagnetic compatibility (EMC) constraints of heavy industrial environments. In facilities with large variable-frequency drives, arc furnaces, or high-current bus bars, copper-based synchronization links are susceptible to common-mode noise injection that can corrupt synchronization frames and trigger false switchover events. The 6ES7960-1CB00-0AA5’s optical channel is inherently immune to conducted and radiated EMI, eliminating this failure mode entirely.

The module also incorporates optical power monitoring circuitry that continuously measures received signal strength on both fiber strands. A degraded fiber connection — caused by connector contamination, bend radius violation, or partial fiber fracture — is detected and reported as a diagnostic event in the CPU’s diagnostic buffer before the link fails completely. This predictive fault detection capability allows maintenance personnel to schedule fiber replacement during a planned shutdown rather than responding to an unplanned process trip.

From a timing architecture perspective, the synchronization protocol operates on a sub-cycle basis. The S7-400H CPU does not wait for a full OB1 scan cycle to complete before initiating a synchronization frame. Instead, synchronization occurs at defined checkpoints within the scan cycle, ensuring that the standby CPU’s process image is never more than one partial cycle behind the active CPU. This design choice directly determines the achievable switchover time and is the reason the S7-400H can meet IEC 61511 SIL 3 requirements in safety-instrumented system configurations.

System Integration Benefits

• Zero-downtime hot-standby operation: The 6ES7960-1CB00-0AA5 enables the S7-400H system to maintain continuous process control during CPU switchover events. The standby CPU assumes control with a fully synchronized process image, eliminating output glitches that would otherwise require process restart procedures.
• Deterministic switchover timing: Switchover completion within <100 ms is guaranteed by the hardware arbitration logic, independent of the complexity of the user program or the number of active communication connections. This determinism is a contractual requirement in many oil & gas and power generation automation specifications.
• Diagnostic transparency via STEP 7 / TIA Portal: The module exposes its operational status — fiber link quality, synchronization state, last switchover timestamp, and switchover cause code — through the standard Siemens diagnostic buffer (SFC 51 / SFB 54). No proprietary diagnostic tool is required; all data is accessible from the engineering station.
• Backplane bus isolation: Because synchronization traffic travels exclusively over the dedicated fiber channel, the S7-400 backplane bus remains fully available for I/O data exchange and communication module polling. There is no bandwidth contention between redundancy management and process control functions.
• Scalable fiber distance: The ability to extend synchronization distance to 10 km supports geographically distributed redundant architectures — for example, a primary control room and a remote backup control room in a large refinery or power plant — without requiring additional protocol converters or media converters in the synchronization path.
• Compatibility with S7-400FH safety systems: The 6ES7960-1CB00-0AA5 is fully compatible with the S7-400FH (Fault-Tolerant + Fail-Safe) CPU variants, enabling a single hardware platform to address both high-availability and functional safety requirements simultaneously. This reduces spare parts inventory and simplifies maintenance training.
• Non-intrusive firmware updates: In S7-400H systems with the 6ES7960-1CB00-0AA5 installed, CPU firmware updates can be applied to the standby CPU while the active CPU continues process control. After the standby CPU restarts with the new firmware, a controlled switchover transfers control, and the formerly active CPU is then updated. The process runs without a production shutdown.
• Predictive maintenance data: Optical power level readings logged by the module’s internal monitoring circuit provide a quantitative basis for fiber infrastructure maintenance planning. Trending a gradual reduction in received optical power over months of operation allows maintenance teams to identify aging connectors or fiber runs before they cause a synchronization fault.

Quality Assurance & Global Logistics

Every 6ES7960-1CB00-0AA5 unit dispatched from siemensplc.com is sourced through verified industrial supply channels and subjected to a structured pre-shipment inspection protocol. Physical inspection covers label integrity, holographic seal condition (where present on the production batch), connector pin geometry, and housing surface condition. Serial numbers are cross-referenced against Siemens production records to confirm authenticity and manufacturing date. Units that do not pass inspection are quarantined and not offered for sale.

Logistics operations are managed from Xiamen, China, a major export hub with direct access to international express freight services including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard transit times to Europe and North America are 5–8 business days via express freight. Economy freight options (7–15 business days) are available for non-urgent procurement. All shipments include a commercial invoice, packing list, and certificate of origin. HS Code 8537.10 is applied for customs classification. Export documentation is prepared in compliance with Chinese customs regulations and destination country import requirements.

A 12-month seller warranty covers manufacturing defects from the date of dispatch. Warranty claims are processed through direct communication with the siemensplc.com technical team. Bulk procurement inquiries (5+ units) are handled with consolidated pricing and dedicated account management. Emergency procurement requests — common in unplanned plant shutdown scenarios — are prioritized for same-day dispatch where stock availability permits.
