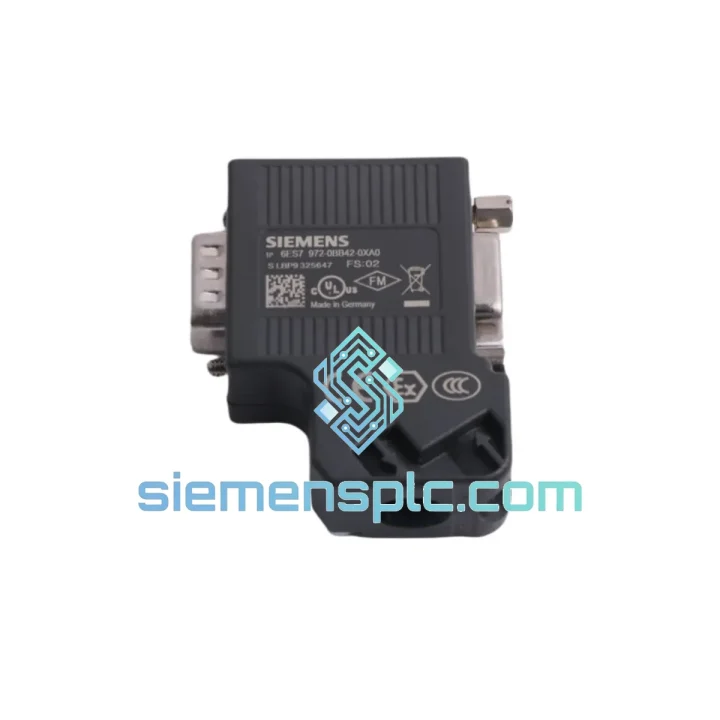

Siemens 6ES7972-0BB42-0XA0 Profibus Connector

6ES7972-0BB42-0XA0 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your Profibus segment just dropped. The HMI is showing Station Failure. The line is stopped. You’ve already swapped the cable, checked the DP master, and the fault is sitting right at the connector — a cracked housing, a shorted termination switch, or a corroded sub-D pin that finally gave up after years of vibration. You need a Siemens 6ES7972-0BB42-0XA0 in your hands, not in three weeks.

We stock this connector in Xiamen and ship same-day via DHL Express or FedEx International Priority. Most destinations in Southeast Asia, the Middle East, and Europe receive within 3–5 business days. No minimum order. No waiting on factory lead times.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of walking plant floors, here are the failure patterns I see repeatedly with this connector — and what to check before you even open the packaging on the replacement unit.

Fault Code BF (Bus Fault) on DP Master — Connector Is the First Suspect
When a BF LED lights on your CP 342-5 or IM 153-x and you’ve already confirmed the slave address is correct in HW Config, physically inspect the connector at the failing node first. The 45° housing on the 0BB42 takes mechanical stress differently than the 90° variant — cable pull-down torque concentrates at the sub-D shell. Look for micro-cracks at the strain relief clamp and check that the A/B screw terminals haven’t backed off from vibration.

Termination Switch — The Most Common Commissioning Error
The integrated terminating resistor switch is the single most misunderstood feature on this connector. Rule: termination ON only at the two physical ends of the Profibus segment. Every intermediate node must be OFF. If you’re replacing a connector mid-segment and the previous one had termination accidentally enabled, you’ve been running with a double-terminated segment — which works at low baud rates but causes intermittent faults at 1.5 Mbit/s and above. Flip it off on the replacement before you plug it in.

Step-by-Step Hot-Swap Procedure (Non-Redundant Segment)

1. Set the DP master to STOP mode or isolate the affected slave in your STEP 7 / TIA Portal configuration to prevent cascading BF faults on other nodes.
2. Note the termination switch position on the old connector before removal — photograph it.
3. Loosen the sub-D locking screws (M3, 0.4 Nm max). Do not yank — the A/B wires are short and the screw terminals will pull out of the cable if forced.
4. On the new 6ES7972-0BB42-0XA0, open the housing, re-terminate the A-line (red/green) and B-line (green/red) wires to the correct screw terminals. Torque: 0.25 Nm. Verify polarity — reversed A/B is the second most common cause of immediate BF after installation.
5. Set the termination switch to match the original position. If this is an end node, confirm the far-end connector also has termination ON.
6. Close the housing, seat the sub-D, tighten locking screws finger-tight plus 1/4 turn.
7. Bring the DP master back to RUN. Monitor the BF LED — it should extinguish within 2–3 scan cycles.

Baud Rate Mismatch After Replacement
The 0BB42 supports all Profibus DP baud rates from 9.6 kbit/s to 12 Mbit/s natively — no jumper or DIP switch setting required. If you’re seeing intermittent communication after replacement at high baud rates (6 or 12 Mbit/s), the issue is almost always cable length. At 12 Mbit/s the maximum segment length is 100 m. Measure your actual cable run — installers frequently exceed this in large panels.

PG Socket Variant Confusion
If the original connector had a 9-pin PG socket on the side (used for laptop programming access without breaking the bus), you need the 6ES7972-0BB52-0XA0, not this model. The 0BB42 has no PG port. Verify before ordering if online programming access through the connector is part of your maintenance workflow.

Reliability in Harsh Conditions

The 6ES7972-0BB42-0XA0 is not a commercial-grade connector dressed up for industrial use. It is built from the ground up for the environments where Profibus networks actually live — inside motor control centers running at 55 °C ambient, on conveyor frames subject to constant 2–5 g vibration, and in coastal facilities where salt-laden humidity attacks every exposed metal surface.

The sub-D shell is zinc die-cast with a nickel-plated finish, providing both EMC shielding continuity and corrosion resistance that outlasts painted steel alternatives by years. The screw terminals use a captive-wire design — the wire cannot back out under vibration without the screw also backing out, which is detectable during routine inspection. The housing halves are ultrasonically welded, not snap-fit, meaning the connector survives repeated cable flexing without the housing splitting at the seam.

Operating range of −20 °C to +85 °C covers the vast majority of industrial cabinet environments globally, including unheated outdoor enclosures in northern climates and non-air-conditioned machine rooms in tropical regions. The integrated terminating resistor network is a precision thin-film type — its resistance value remains stable across the full temperature range, which matters at 12 Mbit/s where impedance mismatch directly causes reflections and data errors.

We test every unit we ship for physical integrity: housing closure, sub-D pin seating, screw terminal torque retention, and label authenticity. Units that show any sign of repackaging, pin damage, or non-OEM labeling are rejected. What arrives at your site is what left the Siemens production line.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. Orders confirmed before 15:00 CST ship the same business day. Here is what the typical transit timeline looks like:

Every shipment includes a commercial invoice with accurate HS code declaration (HS 8536.90 for industrial connectors), enabling smooth customs clearance. We provide the AWB tracking number within 2 hours of dispatch. For time-critical situations, we can arrange Saturday pickup with DHL at no additional lead-time cost — contact us before 12:00 CST Friday.

For orders of 10+ units or combined shipments exceeding 5 kg, we can consolidate into a single DHL or FedEx freight shipment with a formal packing list and certificate of conformity included. Sea freight is available for non-urgent bulk orders — typical transit 18–25 days port to port.
