Siemens 6FX2001-3EC50 Encoder Cable – SINUMERIK / SIMODRIVE

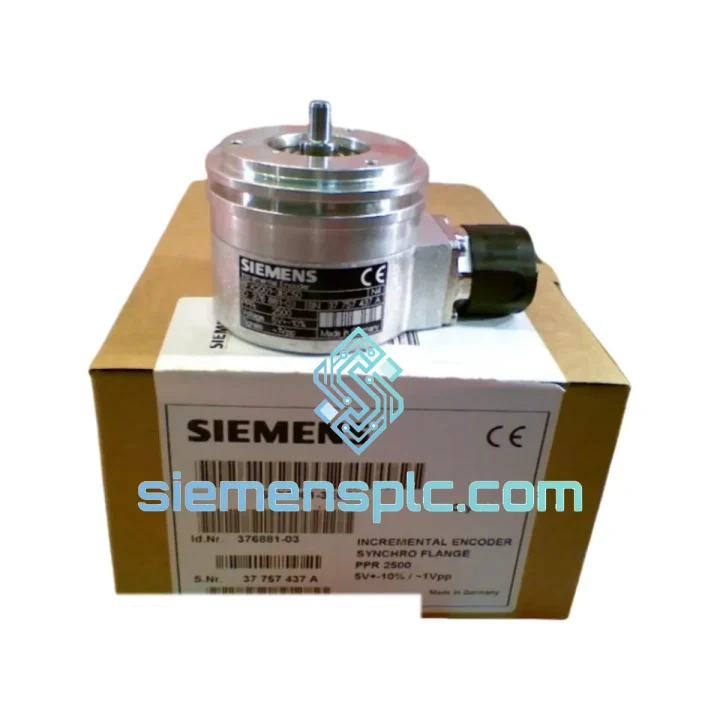

Siemens 6FX2001-3EC50 – Encoder Feedback Signal Cable for SINUMERIK & SIMODRIVE Servo Axes

The Siemens 6FX2001-3EC50 is a factory-assembled encoder feedback signal cable engineered for closed-loop position and velocity control within the SINUMERIK CNC and SIMODRIVE servo drive platforms. Its primary function is to carry incremental or absolute encoder signals from the motor-mounted transducer to the drive’s encoder evaluation circuitry with zero signal degradation across the full operating bandwidth. In multi-axis CNC machining centers, the integrity of this feedback path directly determines contouring accuracy, following error, and the drive’s ability to execute safe torque-off (STO) sequences without position loss.

Unlike generic shielded cable assemblies, the 6FX2001-3EC50 is manufactured to Siemens’ internal cable specification, which defines conductor cross-section, twist pitch, shield coverage percentage, connector contact plating, and strain-relief geometry as a unified system. Each parameter is selected to maintain signal fidelity at encoder resolutions up to 2048 pulses per revolution (ppr) and beyond, across cable runs that may span several meters through cable carriers operating at continuous flex duty cycles.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6FX2001-3EC50 addresses three distinct failure modes that degrade encoder feedback quality in industrial servo systems:

1. Common-Mode Noise Rejection via Double-Shield Architecture
The outer tinned-copper braid is terminated at the drive chassis ground, providing a low-impedance return path for high-frequency interference currents induced by adjacent power cables and PWM switching transients from the SIMODRIVE 611 inverter stage. The inner aluminium-foil shield, connected at the motor end only, forms a Faraday cage that attenuates capacitively coupled noise from the motor winding to the encoder signal conductors. This asymmetric grounding strategy — braid grounded at both ends, foil grounded at one end — is the standard EMC topology for encoder cables operating in environments where common-mode voltages can reach several volts peak.

2. Differential Pair Twist Pitch and Crosstalk Suppression
Each signal pair (A/A̅, B/B̅, Z/Z̅, and supply) is individually twisted at a defined pitch. The twist pitch controls the mutual inductance between pairs, keeping inter-pair crosstalk below the threshold that would cause false edge detection at the SIMODRIVE 611 encoder ASIC. At 2048 ppr with a motor running at 3000 rpm, the encoder output frequency reaches approximately 102.4 kHz. At this frequency, even a few millivolts of crosstalk can corrupt the differential signal margin, leading to position count errors that manifest as axis following errors or, in worst cases, uncontrolled axis movement.

3. Connector Contact Integrity and Fretting Corrosion Resistance
Factory-crimped gold-plated contacts eliminate the resistance variability introduced by field-wired screw terminals. Gold plating (minimum 0.2 µm per Siemens connector specification) prevents fretting corrosion — a micro-motion wear mechanism that occurs at connector interfaces subject to vibration. Fretting corrosion increases contact resistance over time, raising the DC voltage drop across the encoder supply conductors and reducing the noise margin of the differential signal pairs. The factory-terminated assembly eliminates this degradation path entirely.

System Integration Benefits

• Zero Re-Parameterization on Replacement: The 6FX2001-3EC50 is a direct drop-in for existing installations. No drive parameter changes, encoder type re-selection, or axis re-commissioning is required, reducing planned maintenance downtime to the time needed for physical cable swap.
• Deterministic Feedback Latency: Consistent cable impedance and shielding ensure that encoder signal propagation delay remains within the SIMODRIVE 611 encoder evaluation window, preserving the drive’s position capture accuracy at high interpolation factors.
• Diagnostic Transparency: Siemens batch coding printed on the cable jacket allows maintenance teams to cross-reference the cable assembly against Siemens Industry Mall records, confirming authenticity and manufacturing date without disassembling the connector.
• Energy Chain (Igus) Compatibility: The PUR outer jacket and defined minimum bend radius make the cable suitable for continuous-flex cable carrier applications. The jacket resists hydraulic oil, cutting fluid, and lubricant splash — common contaminants in CNC machining environments.
• Safe Torque-Off (STO) Reliability: Accurate encoder feedback is a prerequisite for the SIMODRIVE 611’s STO safety function. Signal corruption caused by a degraded cable can prevent the drive from confirming axis standstill, delaying STO acknowledgment and triggering safety-related fault codes (e.g., F01600 series on SINUMERIK 840D sl).
• Multi-Axis Scalability: The 6FX2001 series uses a standardized connector interface across multiple axis configurations. Stocking this cable covers feedback wiring for multiple axes in a SINUMERIK 840D sl multi-axis NCU configuration, simplifying spare parts inventory management.
• Reduced Commissioning Risk on Retrofit Projects: When retrofitting legacy SIMODRIVE 611 axes, using the OEM cable assembly eliminates the risk of incorrect field wiring — a common source of encoder fault codes during retrofit commissioning that can extend project timelines by days.
• Long-Term Availability via Authorized Supply Chain: Sourced through verified distribution channels with full part number traceability, ensuring that the cable received matches the Siemens engineering specification rather than a dimensional equivalent with different electrical characteristics.

Quality Assurance & Global Logistics

Every 6FX2001-3EC50 unit dispatched from our Xiamen, China facility undergoes a pre-shipment inspection protocol covering three checkpoints: connector seating force verification (ensuring full contact engagement), shield continuity measurement end-to-end (target: <1 Ω), and jacket integrity visual inspection for cuts, kinks, or crush damage incurred during storage. Units that do not pass all three checkpoints are quarantined and not shipped.

Siemens part number labels and batch codes are verified against Siemens Industry Mall records prior to dispatch. Anti-counterfeit hologram labels are checked under UV light as a secondary verification step. A certificate of conformity and batch traceability document are included with every shipment upon request.

Logistics from Xiamen covers major industrial markets with the following typical transit times: Mainland China 1–3 business days; Southeast Asia 3–5 business days; Europe and North America 5–8 business days via DHL Express or FedEx International Priority. All shipments include a commercial invoice, packing list, and tracking number issued within 24 hours of dispatch. Export documentation for customs clearance (HS code, country of origin certificate) is prepared as standard for international orders.

A 12-month warranty from the date of shipment covers manufacturing defects in materials and workmanship. Warranty claims are processed with a replacement unit dispatched within 3 business days of defect confirmation.
