Siemens 6GK1502-3AB10 PROFIBUS Optical Link Module – OLM/G12

Siemens 6GK1502-3AB10 OLM/G12 — PROFIBUS DP Optical Link Module for Glass Fiber Backbone Networks

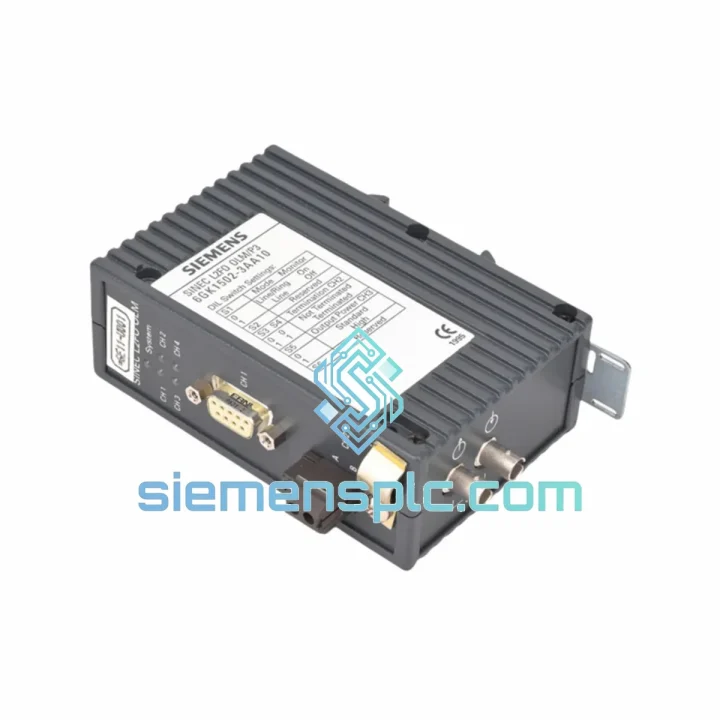

The Siemens 6GK1502-3AB10 is a two-channel glass fiber Optical Link Module (OLM/G12) engineered for PROFIBUS DP field bus networks operating in electrically harsh industrial environments. Its primary function within a control loop is to serve as a transparent RS-485-to-optical signal converter, decoupling the electrical segment from the fiber-optic backbone while preserving full PROFIBUS DP protocol transparency across all baud rates from 9.6 kbps to 12 Mbps. This decoupling eliminates ground-loop interference, galvanically isolates field devices from the controller backplane, and extends the physical reach of a single PROFIBUS segment from the standard 1,200 m copper limit to 3,000 m per fiber span — a critical requirement in large-footprint plants such as petrochemical complexes, automotive body shops, and power generation facilities.

Within a SIMATIC S7-300 or S7-400 architecture, the 6GK1502-3AB10 typically sits between the CP 342-5 or CP 443-5 communication processor and the distributed ET 200M or ET 200S I/O stations. The module auto-detects the active baud rate on the RS-485 port within milliseconds of power-up, requiring no DIP-switch configuration for baud rate selection. This characteristic reduces commissioning risk in multi-vendor PROFIBUS segments where baud rate mismatches are a common source of startup delays. The module supports both line and ring topologies; in ring mode, a second OLM/G12 closes the optical loop, and the redundancy switchover time is documented at less than 1 ms — well within the watchdog tolerance of most PROFIBUS DP slaves operating at 1.5 Mbps or higher.

The 6GK1502-3AB10 accepts 62.5/125 µm or 50/125 µm multimode glass fiber terminated with ST bayonet connectors. The optical transmitter operates in the 820–860 nm wavelength window, and the receiver sensitivity is specified to accommodate link budgets of up to 11 dB, which translates to approximately 3,000 m of 62.5/125 µm fiber with standard splice and connector losses factored in. The electrical port is a standard Sub-D 9-pin female connector conforming to the PROFIBUS DP physical layer specification EN 50170 Part 2 / IEC 61158-2.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6GK1502-3AB10 implements a store-and-forward architecture at the physical layer boundary between the RS-485 electrical segment and the optical domain. Unlike a simple passive media converter, the OLM/G12 contains an active PROFIBUS DP repeater core that regenerates the signal timing and amplitude before retransmission onto the fiber. This means the module does not merely convert signal levels — it reconstructs the PROFIBUS frame preamble and SYN characters with corrected edge timing, which is essential at 12 Mbps where cable-induced jitter can degrade the setup time margin at the receiving UART.

Galvanic Isolation Architecture: The RS-485 port is galvanically isolated from the module’s internal logic and from the optical transmitter/receiver circuitry. The isolation barrier is implemented using a transformer-coupled interface with a rated isolation voltage of 500 V DC. This architecture prevents common-mode voltage transients — typical in environments with large motor drives or welding equipment — from propagating into the PROFIBUS master’s communication processor. The isolation also eliminates ground-loop currents that would otherwise appear as differential noise on the RS-485 pair, a failure mode that is notoriously difficult to diagnose in long cable runs.

EMC Design: The module’s PCB layout follows IEC 61000-4 series immunity requirements. The power supply input incorporates an LC filter stage rated for conducted emissions compliance per EN 55011 Class A. The enclosure is a die-cast aluminum shell with continuous EMC gasket contact on the DIN rail mounting foot, providing a low-impedance ground path that suppresses radiated emissions from the internal switching regulator. The optical fiber ports are inherently immune to electromagnetic interference, which is the primary architectural advantage of this module in environments with variable-frequency drives, arc furnaces, or high-voltage switchgear in close proximity to the PROFIBUS cable tray.

Baud Rate Auto-Detection Logic: The module monitors the RS-485 port for valid PROFIBUS DP start delimiters (SD1, SD2, SD3, SD4) and measures the bit period of the first valid frame. The detected baud rate is latched and applied to the optical transmitter clock within one frame period. If no valid frame is detected within a configurable timeout, the module defaults to the last stored baud rate. This mechanism eliminates the need for manual baud rate configuration switches, which are a common source of field errors during module replacement.

Optical Ring Redundancy: In ring topology, both OPT ports are active simultaneously. The module monitors the incoming optical signal on each port independently. If the signal on one port drops below the receiver threshold (indicating a fiber break or remote module failure), the module switches to single-port line mode within the documented <1 ms switchover time. The switchover is transparent to the PROFIBUS DP master, which continues polling without a bus reset, provided the master’s slot time parameter is configured with sufficient margin for the switchover latency.

System Integration Benefits

• Deterministic Latency Preservation: The store-and-forward repeater core introduces a fixed, baud-rate-dependent propagation delay (typically 2–4 bit times at 12 Mbps), which is constant and predictable. This allows PROFIBUS DP masters to calculate slot time parameters accurately, maintaining deterministic cycle times in time-critical motion control or process control loops.
• Extended Physical Reach Without Protocol Overhead: The 3,000 m per-segment fiber span allows plant designers to place remote I/O stations at distances that are physically impossible with copper RS-485, without introducing additional protocol layers or gateways that would add latency and reduce diagnostic transparency.
• Electrical Segment Isolation for Fault Containment: Each OLM/G12 creates a hard electrical boundary between segments. A short circuit or wiring fault on one RS-485 segment does not propagate to adjacent segments, limiting the blast radius of a wiring fault to a single segment’s devices rather than the entire PROFIBUS network.
• Per-Port Optical Signal Quality Diagnostics: The OPT1 and OPT2 LEDs provide real-time indication of received optical power level. A flashing LED indicates marginal signal quality (approaching receiver threshold), allowing maintenance personnel to identify degrading fiber connections or dirty ST connectors before a hard failure occurs — a proactive maintenance capability that reduces unplanned downtime.
• Ring Topology for High-Availability Networks: The sub-millisecond ring redundancy switchover enables PROFIBUS DP networks to tolerate a single fiber break without a bus reset, which is a requirement in continuous-process industries where a bus reset would trigger emergency shutdowns or product quality deviations.
• Seamless SIMATIC Ecosystem Compatibility: The module is fully transparent to STEP 7 V5.x and TIA Portal network configuration tools. No additional GSD file or hardware configuration entry is required for the OLM/G12 itself — it is invisible to the PROFIBUS DP master, which sees only the slaves on the far side of the fiber link.
• ATEX Zone 2 Certification for Hazardous Areas: The ATEX II 3G certification allows installation in Zone 2 hazardous areas (gas group IIC, temperature class T4), covering applications in oil and gas processing, chemical plants, and paint spray booths where explosive atmospheres may be present under abnormal conditions.
• Reduced Cable Infrastructure Cost: A single multimode glass fiber pair replaces a shielded twisted-pair RS-485 cable that would require careful impedance matching, termination resistors, and grounding discipline over long distances. The fiber cable is lighter, smaller in diameter, and immune to the ground potential differences that require expensive isolation measures in copper-based long-distance PROFIBUS installations.
