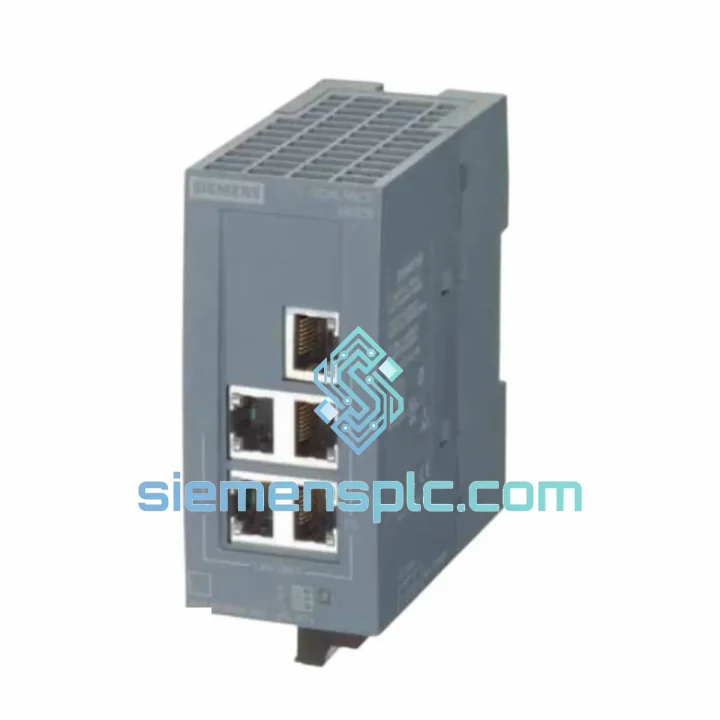

Siemens 6GK5005-0BA00-1AB2 Industrial Ethernet Switch – SCALANCE X005

Siemens 6GK5005-0BA00-1AB2 SCALANCE X005 — 5-Port Unmanaged Industrial Ethernet Switch for Deterministic Factory Network Segmentation

The SCALANCE X005, ordered under MLFB 6GK5005-0BA00-1AB2, occupies a well-defined position in the SIMATIC network hierarchy: it is the terminal-layer switch that connects field devices — PROFINET IO controllers, distributed I/O racks, HMI panels, and servo drives — to the plant Ethernet backbone without introducing managed-switch complexity or configuration overhead. In a typical S7-1500 cell, the CPU communicates with ET 200SP remote I/O stations across a star topology; the X005 provides the five-port hub at the machine level, keeping cyclic PROFINET IO traffic isolated from office LAN broadcast domains. Its role is not passive — the internal store-and-forward engine with a 1 Gbps non-blocking switching fabric ensures that 100 Mbps full-duplex frames from all five ports are forwarded without head-of-line blocking, preserving the sub-millisecond jitter budget that PROFINET RT Class 1 demands.

The -1AB2 variant suffix is significant: it carries ATEX Zone 2 (gas group IIC, temperature class T4) and IECEx certification, extending the permissible installation envelope to petrochemical skids, pharmaceutical clean rooms, and paint-booth control cabinets where ignition-risk classification would otherwise exclude standard industrial switches. This single certification delta separates the -1AB2 from the -1AA3 base variant and justifies its selection on any project with a hazardous-area P&ID boundary.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6GK5005-0BA00-1AB2 is built around a dedicated Layer 2 ASIC rather than a general-purpose microcontroller, which eliminates the firmware scheduling latency that plagues software-switched designs. The store-and-forward engine buffers each incoming Ethernet frame completely before forwarding, performing CRC verification on every frame — corrupted frames are silently discarded rather than propagated, a behavior critical in PROFINET environments where a single malformed frame can trigger a controller watchdog timeout.

EMC Design: The metal enclosure functions as a Faraday cage, providing continuous shielding continuity between the DIN rail ground clip and the RJ45 port shells. Each port’s transformer isolation stage provides 1,500 V AC common-mode rejection between the cable shield and the internal switching plane. This isolation architecture is the primary defense against ground-loop-induced noise from VFD motor cables routed in the same cable tray — a scenario common in conveyor and pump-control panels. The EN 61000-6-2 immunity rating covers conducted disturbances (IEC 61000-4-6, 10 V), electrostatic discharge (IEC 61000-4-2, 4 kV contact / 8 kV air), and fast transients (IEC 61000-4-4, 2 kV on power lines).

Redundant Power Input Logic: The two 24 VDC screw terminals are connected in a diode-OR configuration internally. Both supplies can be energized simultaneously; the higher-voltage rail dominates. If one rail drops below the undervoltage threshold (~17 VDC), the other rail assumes full load without any relay switching delay or output glitch. This passive redundancy architecture has no moving parts and no firmware dependency — mean time to switchover is effectively zero, measured in nanoseconds at the diode junction level.

Auto-MDI/MDI-X per Port: Each port’s PHY implements automatic crossover detection using a parallel link-pulse exchange algorithm. The PHY transmits on both TX and RX pairs simultaneously during auto-negotiation and selects the correct pair assignment based on which pair receives a valid link pulse from the remote device. This eliminates the need for crossover cables in any topology — uplink to a managed switch, downlink to a PLC CPU, or peer-to-peer between two HMI panels — all use standard straight-through patch cables.

ATEX Zone 2 Compliance Architecture: The -1AB2 variant achieves Zone 2 approval through energy-limiting design: the internal circuitry is confined within the IP30 metal enclosure with no user-accessible live parts, and the power input is rated for the 18–32 VDC SELV (Safety Extra-Low Voltage) range. The ATEX certificate covers gas groups IIA, IIB, and IIC at temperature class T4 (maximum surface temperature 135 °C), which encompasses the majority of flammable vapors encountered in oil & gas and chemical processing.

System Integration Benefits

• Zero-configuration commissioning: No IP address assignment, VLAN configuration, or spanning-tree tuning is required. The switch is operational within seconds of power application — a measurable reduction in panel commissioning time on multi-drop machine lines.
• PROFINET RT transparency: The non-blocking 1 Gbps fabric ensures that 100 Mbps PROFINET RT cyclic frames are forwarded with consistent store-and-forward latency (typically < 10 µs per hop at 100 Mbps), preserving the deterministic update cycle of S7-1500 controllers operating at 1 ms send clock intervals.
• Cabinet space efficiency: At 30 mm width, the X005 occupies the same DIN rail footprint as a single SIRIUS 3RV2 motor circuit breaker. Five Ethernet ports are delivered in a form factor that competing 5-port switches typically require 45–60 mm to achieve.
• Dual-rail power bus compatibility: The redundant 24 VDC input allows the switch to be connected to both the primary and secondary 24 VDC bus bars in a redundant PSU architecture (e.g., SITOP UPS1600 + SITOP PSU8200), eliminating the switch as a single point of failure in the power distribution chain.
• Hazardous-area deployment without additional barriers: ATEX Zone 2 / IECEx certification means the -1AB2 can be installed directly in Zone 2 classified areas without Zener barriers or galvanic isolators on the power supply lines, reducing BOM cost and panel wiring complexity.
• Vibration and shock tolerance for mobile machinery: IEC 60068-2-6 and IEC 60068-2-27 qualification covers the mechanical stress profile of AGVs, rail-mounted cranes, and ship-board automation panels where continuous vibration would degrade solder joint integrity in consumer-grade switches over 12–18 months.
• LED diagnostic transparency without tooling: Per-port LINK/ACT LEDs and a PWR LED provide immediate visual confirmation of cable integrity and traffic activity. A technician can verify all five port connections and switch power status in under 10 seconds without a laptop, PROFINET diagnostic tool, or network analyzer.
• Interoperability with third-party PROFINET devices: As a standard IEEE 802.3 Layer 2 switch, the X005 is protocol-agnostic. It forwards EtherNet/IP, Modbus TCP, OPC UA, and BACnet/IP frames with equal transparency, making it suitable for mixed-vendor automation cells where Siemens PLCs coexist with Allen-Bradley, Beckhoff, or Schneider field devices.

Quality Assurance & Global Logistics

Every unit of the 6GK5005-0BA00-1AB2 listed on siemensplc.com is sourced as genuine Siemens-manufactured hardware, produced at Siemens’ certified manufacturing facilities in Germany. The MLFB label, PCB revision marking, and factory serial number are cross-referenced against the Siemens Industry Online Support (SIOS) product database prior to listing. Units are stored in ESD-safe packaging in a climate-controlled warehouse in Xiamen, China, maintaining the factory storage conditions specified in the product datasheet (−40 °C to +85 °C, < 95 % RH).

Pre-shipment functional verification includes: 24 VDC power-on test, per-port link-up confirmation using a 100 Mbps test device on all five RJ45 ports, and visual inspection of the MLFB label, CE/UL markings, and enclosure integrity. Units are dispatched in original Siemens OEM cartons with factory foam inserts, preserving the mechanical protection and anti-static shielding of the original packaging.

Logistics from Xiamen, China to global destinations are handled via DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia. EXW Xiamen Incoterms are available for customers consolidating shipments through their own freight forwarders. Every shipment includes a commercial invoice, packing list, and CE Declaration of Conformity. For orders requiring ATEX documentation, the IECEx certificate of conformity is provided upon request at no additional charge.
