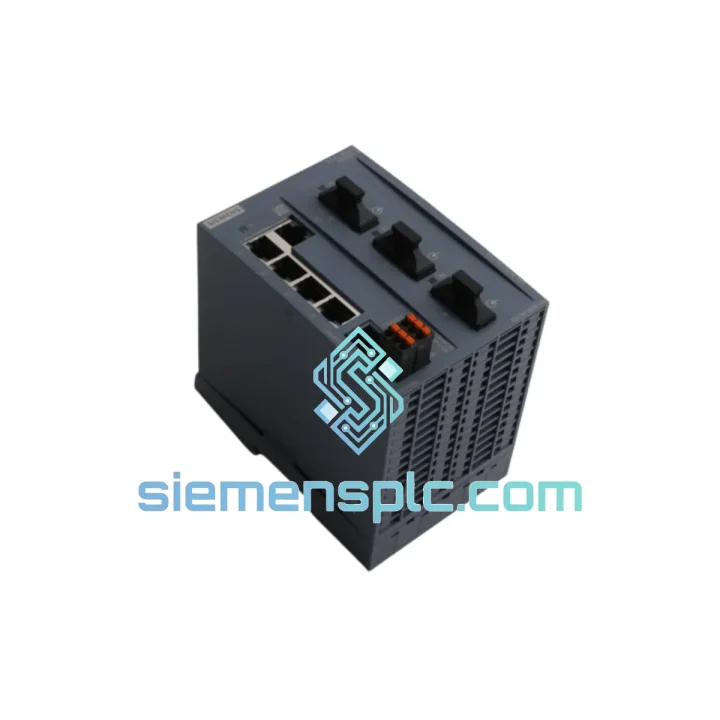

Siemens 6GK5205-3BD00-2AB2 Industrial Ethernet Switch – SCALANCE X200

Siemens 6GK5205-3BD00-2AB2 — Layer 2 Managed Switch with Fiber Uplink in PROFINET-Driven Control Architectures

The Siemens 6GK5205-3BD00-2AB2 is a Layer 2 managed industrial Ethernet switch belonging to the SCALANCE X200 product family. It provides five 10/100 Mbps RJ45 copper ports and three 100 Mbps SFP fiber slots (multimode, BD variant), combined with a dedicated RJ45 console port for out-of-band CLI access. This hardware configuration positions the module as a structured wiring node capable of bridging copper-based field device segments to fiber backbone rings — a topology requirement common in large-scale SIMATIC S7-1500 and ET 200SP distributed I/O deployments.

Within a PROFINET RT (Real-Time) control loop, the switch operates as a transparent Layer 2 forwarding device. Its internal switching fabric handles frame forwarding at wire speed across all eight ports simultaneously, with no head-of-line blocking under full-duplex load. The hardware supports IEEE 802.1Q VLAN segmentation, allowing engineers to isolate PROFINET IO traffic from standard TCP/IP management traffic on the same physical infrastructure — a critical requirement when integrating safety-rated I/O devices that demand deterministic cycle times below 1 ms.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optical Isolation and SFP Interface Architecture: The three SFP slots on the 6GK5205-3BD00-2AB2 implement full electrical isolation between the fiber medium and the internal switching ASIC. Each SFP cage connects to the ASIC via a dedicated SERDES (Serializer/Deserializer) lane operating at 125 Mbps line rate for 100BASE-FX. The optical transceiver itself provides galvanic isolation inherent to the fiber medium, eliminating ground loop interference — a persistent problem in long-distance copper runs across separate electrical panels in process plants. The BD suffix designates multimode fiber with 1300 nm wavelength, supporting link distances up to 2 km on 50/125 µm or 62.5/125 µm OM1/OM2 cable.

EMC Design and Conducted Interference Suppression: The switch housing is constructed from die-cast zinc alloy with continuous EMC gasket sealing at all panel joints. Internal PCB layers include dedicated ground planes that provide a low-impedance return path for high-frequency transients. The 24 V DC input stage incorporates a transient voltage suppressor (TVS) diode array rated to absorb surge pulses up to 1 kV (1.2/50 µs waveform per IEC 61000-4-5), protecting the internal DC/DC converter from voltage spikes common in panel environments with inductive loads such as contactors and motor drives.

Redundancy Arbitration Logic — MRP Manager/Client: The switch implements Media Redundancy Protocol (MRP) at the hardware level, with ring reconfiguration times below 200 ms for rings of up to 50 nodes. In MRP Manager mode, the switch monitors the ring by transmitting test frames at configurable intervals (10–200 ms). Upon detecting a link failure, the Manager opens the logical ring port within one reconfiguration cycle, preventing broadcast storms while simultaneously signaling all MRP Clients to update their forwarding tables. This deterministic failover behavior is essential for PROFINET IRT (Isochronous Real-Time) applications where cycle jitter must remain below ±1 µs.

Console Port and Out-of-Band Diagnostics: The dedicated RJ45 console port operates independently of the network switching fabric. It connects directly to the management CPU via a UART interface, providing full CLI access even when all network ports are administratively shut down or physically disconnected. This architecture allows field engineers to perform password recovery, firmware rollback, and configuration restore operations without requiring network connectivity — a capability that significantly reduces mean time to repair (MTTR) during commissioning or post-fault recovery scenarios.

System Integration Benefits

• TIA Portal plug-and-play commissioning: The switch ships with a GSDML file that registers it as a PROFINET IO Device in TIA Portal V13 and later. Engineers assign the device name and IP address directly from the PLC project, eliminating manual CLI configuration for standard deployments.
• SINEMA Network Manager compatibility: The switch exposes SNMP MIB-II and Siemens-proprietary MIBs, enabling SINEMA NM to collect port statistics, link status, and alarm events at configurable polling intervals. This provides topology visualization and fault localization without requiring additional network management hardware.
• VLAN-based traffic segmentation: Up to 256 IEEE 802.1Q VLANs allow engineers to separate PROFINET IO traffic (time-critical) from HMI/SCADA TCP/IP traffic (best-effort) on the same physical switch, reducing jitter caused by large TCP frames competing with short PROFINET cyclic frames.
• Redundant 24 V DC power input: Two independent power input terminals accept 18–32 V DC. If the primary supply fails, the secondary input takes over with no interruption to switching operations. Each input is individually fused and monitored, with a signaling contact available for integration into the plant alarm system.
• MRP ring redundancy for zero-downtime topologies: In ring configurations, the switch achieves sub-200 ms reconfiguration, meeting the availability requirements of most continuous process applications. MRP is interoperable with RSTP for mixed-vendor ring segments.
• Port-level diagnostics via PROFINET: Each port reports link status, speed, duplex mode, and error counters as PROFINET diagnostic data objects, accessible from the S7 PLC program via standard diagnostic function blocks (e.g., RDREC with slot/subslot addressing). This eliminates the need for a separate network analyzer during fault investigation.
• Extended operating temperature range (−40 °C to +70 °C): The switch operates without derating across the full industrial temperature range, making it suitable for outdoor enclosures, unheated substations, and cold-storage automation environments where standard commercial switches fail.
• ATEX Zone 2 / IECEx certification: The module is certified for installation in potentially explosive atmospheres (gas group IIC, temperature class T4), enabling direct deployment in petrochemical, offshore, and pharmaceutical environments without requiring additional Ex barriers or purged enclosures.

Quality Assurance & Global Logistics

Every unit of the Siemens 6GK5205-3BD00-2AB2 dispatched from our Xiamen, China facility is sourced through verified industrial supply channels and subjected to a structured pre-shipment inspection protocol. Physical inspection covers label authenticity (hologram, date code, and Siemens part number cross-reference), connector integrity (RJ45 latch mechanism, SFP cage alignment, and console port pin continuity), and housing condition (no mechanical stress marks or reflow evidence on solder joints visible through ventilation slots).

Functional verification includes power-on self-test confirmation, port link establishment on all copper and fiber interfaces, and management access validation via console CLI. Units that do not pass all inspection checkpoints are quarantined and not dispatched.

Packaging uses anti-static PE foam inserts within double-wall corrugated cartons, rated for international air freight vibration profiles per ISTA 2A. Export documentation — including commercial invoice, packing list, certificate of origin, and HS code declaration (8517.62) — is prepared for each shipment to facilitate customs clearance in the EU, North America, Southeast Asia, and the Middle East. Standard dispatch lead time from Xiamen is 1–3 business days for in-stock units, with DHL Express, FedEx International Priority, and UPS Worldwide Express available as carrier options. Typical transit times: 3–5 days to Europe, 2–4 days to North America, 1–3 days to Southeast Asia.

A 12-month warranty covers manufacturing defects and confirmed functional failures under normal operating conditions. Warranty claims are processed with a target replacement dispatch of 5 business days from fault confirmation.
