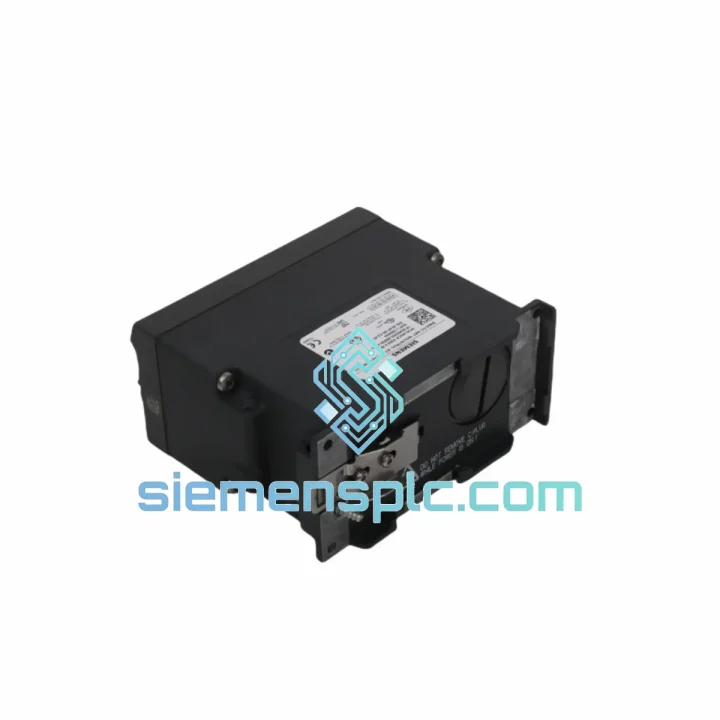

Siemens 6GK7243-2AX01-0XA0 AS-Interface Master Module – CP 243-2

Siemens 6GK7243-2AX01-0XA0 CP 243-2 — AS-Interface Master at the Core of S7-200 Field Networks

The 6GK7243-2AX01-0XA0 is the CP 243-2 AS-Interface master communication processor engineered specifically for the SIMATIC S7-200 compact PLC platform. Its function is not peripheral — it is the network controller that arbitrates every token-passing cycle on the AS-i segment, polls up to 62 A/B slaves within a deterministic 5 ms window, and maps all field-level I/O data directly into the S7-200 process image without CPU ladder intervention. In distributed sensor/actuator architectures where wiring cost and commissioning time are primary constraints, this module defines the boundary between the controller backplane and the physical field layer.

Unlike generic gateway adapters, the CP 243-2 implements the full AS-Interface Specification V2.1 master state machine in dedicated silicon, offloading all AS-i protocol timing from the S7-200 CPU. The result is a clean separation of concerns: the CPU executes application logic at its own scan rate while the CP 243-2 autonomously maintains the AS-i bus cycle, handles slave address assignment, and reports configuration faults through a structured diagnostic interface accessible via the S7-200 expansion bus.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CP 243-2 implements a dedicated AS-i master controller ASIC that handles the complete AS-i V2.1 protocol stack independently of the S7-200 CPU. Understanding its internal architecture clarifies why it outperforms software-emulated master solutions in determinism and fault isolation.

AS-i Master State Machine: The ASIC executes the AS-i master state machine — including the Data Exchange Phase (DEP), Management Phase (MP), and Offline Phase (OFP) — in hardware. Slave polling follows a fixed round-robin sequence with a guaranteed cycle time of ≤ 5 ms for 31 active slaves. This is a hard real-time constraint enforced at silicon level, not subject to CPU load variation.

Automatic Address Assignment (AAA): The module supports the AS-i V2.1 Automatic Address Assignment procedure. When a replacement slave with address 0 is detected on the bus, the CP 243-2 automatically assigns the stored address from its internal configuration table without requiring CPU program intervention. This reduces mean time to repair (MTTR) in field replacement scenarios.

EMC Design: The AS-i bus interface incorporates transformer-coupled galvanic isolation between the AS-i cable and the module’s internal logic. This isolation barrier — rated to withstand transient voltages per IEC 61000-4-4 (EFT/Burst) and IEC 61000-4-5 (Surge) — prevents ground loop currents and common-mode noise from the field cable from propagating into the S7-200 backplane. In environments with variable-frequency drives (VFDs) or large inductive loads, this isolation is the primary defense against communication errors.

Expansion Bus Interface: Communication with the S7-200 CPU occurs over the proprietary S7-200 expansion bus using a synchronous serial protocol. The CP 243-2 maps AS-i slave I/O data into a dedicated memory area (V-memory or I/Q image, depending on configuration) that the CPU reads at each scan cycle. The bus arbitration logic ensures that data transfer does not introduce jitter into the AS-i master cycle — the two timing domains operate independently with a shared memory buffer as the handoff point.

Diagnostic Register Architecture: The module maintains a set of internal status registers accessible via the S7-200 expansion bus: Configuration Fault Register (CFR), Peripheral Fault Register (PFR), and Slave Status Bits. These registers allow the CPU program to implement structured fault handling — distinguishing between a missing slave (CFR bit set), a slave with I/O error (PFR bit set), and a slave in offline phase — without polling the AS-i bus directly.

System Integration Benefits

• Zero-overhead CPU polling: The CP 243-2 autonomously manages the AS-i bus cycle. The S7-200 CPU reads pre-processed I/O data from a shared buffer, eliminating any scan-time penalty for AS-i communication management.
• Deterministic 5 ms field update rate: With 31 slaves active, the AS-i cycle completes in ≤ 5 ms regardless of CPU scan time. This decoupling allows the CPU to run longer scan cycles without degrading field response time.
• Structured diagnostic transparency: Three independent diagnostic registers (CFR, PFR, Slave Status) give the application program precise fault location data — down to individual slave address — enabling targeted alarm messages rather than generic communication fault outputs.
• Automatic slave address recovery: AAA support means a field technician can replace a failed slave with an unaddressed spare. The CP 243-2 restores the correct address automatically, reducing commissioning skill requirements for maintenance personnel.
• Analog slave support: AS-i V2.1 analog profile slaves (4-bit I/O per cycle, extended with analog data in management phase) are fully supported, allowing analog field devices to share the same two-wire AS-i cable as digital slaves.
• Scalable topology: The 100 m unextended cable range expands to 300 m with a single repeater, and multiple CP 243-2 modules can be stacked on one S7-200 CPU (subject to expansion bus current budget), supporting multi-segment AS-i networks from a single controller.
• STEP 7-Micro/WIN integration: The module is fully configured within the standard S7-200 programming environment. No separate configuration tool or license is required. Slave address tables, expected configuration data, and diagnostic mapping are all defined in the Micro/WIN project file.
• Legacy system longevity: For existing S7-200 installations, the CP 243-2 extends the operational life of the control system by enabling integration of modern AS-i V2.1 field devices — including safety slaves with appropriate safety master configuration — without requiring a CPU platform migration.

Quality Assurance & Global Logistics

Every 6GK7243-2AX01-0XA0 unit supplied through siemensplc.com is sourced from verified industrial supply channels with full procurement traceability. Physical inspection covers label integrity, housing condition, connector pin alignment, and counterfeit markers. Where stock condition permits, functional pre-verification (power-on response and expansion bus handshake) is performed prior to dispatch.

Units are packed in anti-static ESD shielding bags, cushioned with closed-cell foam, and sealed in rigid outer cartons. Each shipment includes a commercial invoice, packing list, and — upon request — a Certificate of Origin for customs clearance purposes. A 12-month functional warranty applies from the date of shipment.

Logistics from Xiamen, China: Our dispatch hub in Xiamen provides direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Typical transit times: Southeast Asia 2–3 business days; Europe 3–5 business days; North America 4–6 business days; Middle East 3–5 business days. For time-critical plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments are tracked end-to-end with proactive status updates provided to the buyer.
