Siemens 6GK7343-1CX10-0XE0 Ethernet Communication Module

6GK7343-1CX10-0XE0 In Stock — Cut Your Downtime Before It Cuts Your Margin

Your S7-300 rack just lost its Ethernet link. SCADA is blind. The shift supervisor is standing behind you. You’ve already pulled the CP343-1 and confirmed the fault — now you need a replacement module on-site, not a three-week lead time from a regional distributor. That’s exactly the gap we exist to close.

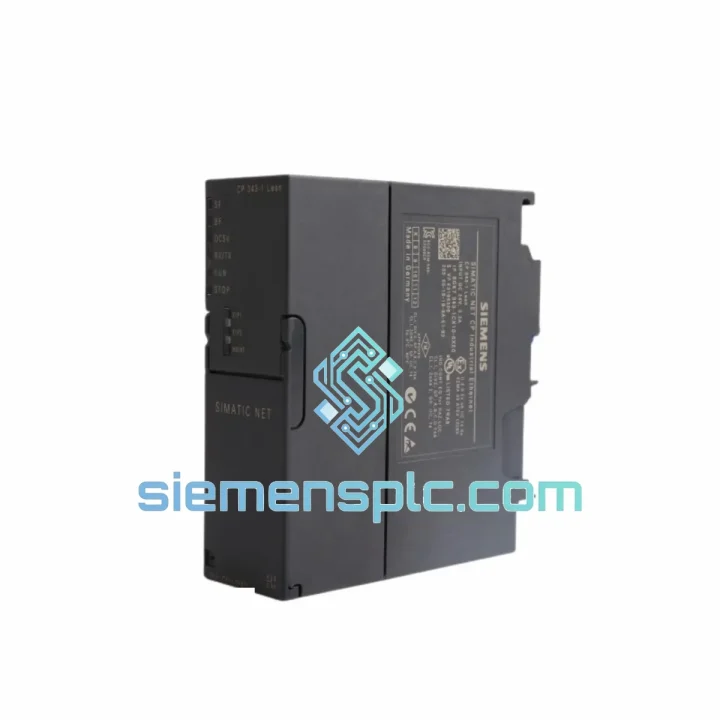

The Siemens 6GK7343-1CX10-0XE0 is a CP343-1 series communications processor that gives the SIMATIC S7-300 a dedicated Industrial Ethernet port running at 10/100 Mbit/s. It handles TCP/IP, ISO-on-TCP, UDP, S7 Communication, and FETCH/WRITE simultaneously — no gateway, no middleware, no additional licensing for standard operation. We stock it in Xiamen and ship globally via DHL Express and FedEx International Priority. Most destinations receive within 3–5 business days from order confirmation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes on the 6GK7343-1CX10-0XE0:

1. BUSF LED solid red after power-up. This almost always means the module lost its configuration — either the EEPROM got corrupted during a power surge, or the module was swapped without re-downloading the hardware config. Fix: open HW Config in STEP 7, verify the slot assignment matches the physical rack position, compile, and download to the CPU. The CP343-1 does not self-address; its IP address and connection parameters live in the CPU project, not on the module itself.

2. LINK LED off, no Ethernet activity. Before condemning the module, check the switch port. The CP343-1 uses auto-MDI/MDIX, but some older managed switches need the port forced to 100 Mbit/s full-duplex. If the switch port is fine and the LINK LED still won’t come on after module swap, verify the RJ45 connector on the new module isn’t damaged in transit — inspect pins under magnification.

3. Intermittent S7 communication drops under load. This is a known symptom when the module’s connection table is saturated. The standard CP343-1 (CX10 variant) supports 16 simultaneous connections. If your SCADA, HMI, and MES are all polling simultaneously plus you have S7 routing active, you may be hitting the ceiling. Log the diagnostic buffer in STEP 7 — event ID 0x6500 series indicates connection resource exhaustion. Consider upgrading to the CP343-1 Advanced (6GK7343-1GX31-0XE0) if connection count is the bottleneck.

Replacement procedure — field checklist:

• Power down the S7-300 rack (or isolate the slot if hot-swap is configured in your rack variant).
• Note the physical slot number — the CP343-1 must occupy the same slot as defined in HW Config, or the CPU will throw a configuration mismatch fault on startup.
• There are no DIP switches or rotary address selectors on this module. IP address assignment is handled entirely through STEP 7 / TIA Portal hardware configuration download.
• After seating the new module, power up and watch the SF and BUSF LEDs. Both should extinguish within 30 seconds of a successful config download. If BUSF stays on, re-check slot assignment.
• Firmware version: the CX10 suffix indicates firmware generation. If your project was built on a newer firmware baseline, a firmware mismatch warning may appear in STEP 7 diagnostics. This is usually non-critical for standard S7 communication but should be resolved before commissioning in safety-adjacent applications.
• After replacement, ping the module’s IP from an engineering workstation before reconnecting SCADA. Confirm round-trip time is stable — jitter above 5 ms on a local LAN segment suggests a switch or cabling issue, not the module.

Reliability in Harsh Conditions

The CP343-1 was engineered for the factory floor, not the server room. The 6GK7343-1CX10-0XE0 carries full IEC 61131-2 compliance and is tested to withstand the mechanical and electrical stresses that destroy consumer-grade networking hardware within months.

Vibration and shock: The module meets IEC 60068-2-6 sinusoidal vibration testing (10–58 Hz, 0.075 mm amplitude; 58–500 Hz, 1g) and IEC 60068-2-27 shock testing (15g, 11 ms half-sine). In practice, this means it survives the continuous low-frequency vibration of press lines, compressor rooms, and heavy machining centers without connector fatigue or PCB delamination.

Thermal cycling: Operating range is 0 °C to +60 °C with storage down to -40 °C. The module is designed for convection cooling within the S7-300 rack — no forced airflow required under standard load. In high-ambient installations (foundries, glass plants, cement works), ensure the control cabinet maintains internal temperature below 55 °C with adequate ventilation or air conditioning.

EMC immunity: The CP343-1 is tested to EN 61000-4-2 (ESD, 4 kV contact / 8 kV air), EN 61000-4-4 (EFT/burst, 2 kV), and EN 61000-4-5 (surge, 1 kV line-to-line). In electrically noisy environments — VFD-heavy panels, arc welding cells, large motor starters — ensure the Ethernet cable is shielded (STP Cat5e or better) and the shield is grounded at the cabinet entry point, not at both ends.

Humidity and condensation: Rated to 95 % RH non-condensing. For installations in coastal or high-humidity environments, ensure the cabinet IP rating is appropriate and that thermal management prevents condensation during temperature swings at shift start.

Global Express Logistics

We operate from Xiamen, Fujian — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography gives us a structural advantage in transit time to Southeast Asia, the Middle East, Europe, and the Americas compared to inland Chinese suppliers.

Standard export flow:

• Day 0 — Order confirmation: Payment cleared or credit terms confirmed. Module pulled from bonded warehouse stock, inspected, and packed in anti-static foam with humidity indicator card.
• Day 1 — Export documentation: Commercial invoice, packing list, and certificate of origin prepared. HS Code 8537.10 declared. For destinations requiring CITES or dual-use screening, we handle pre-clearance.
• Day 1–2 — Carrier handoff: DHL Express or FedEx International Priority pickup from our facility. Tracking number issued to buyer within 2 hours of carrier scan.
• Day 3–5 — Delivery: Most EU, US, and Middle East destinations receive within this window under normal customs clearance. Southeast Asia typically 2–3 days. Remote destinations or those with import inspection requirements may add 1–2 days.

For orders above USD 5,000 or requiring air freight consolidation, we also coordinate with Sinotrans and Kuehne+Nagel for door-to-door airfreight with customs brokerage included. All shipments are fully insured. If your customs team needs pre-shipment documentation for import licensing, contact us before order placement — we routinely handle this for buyers in India, Brazil, and Turkey.

Emergency same-day dispatch is available for orders confirmed before 14:00 CST. Contact us via WhatsApp for real-time stock confirmation before placing an urgent order.
