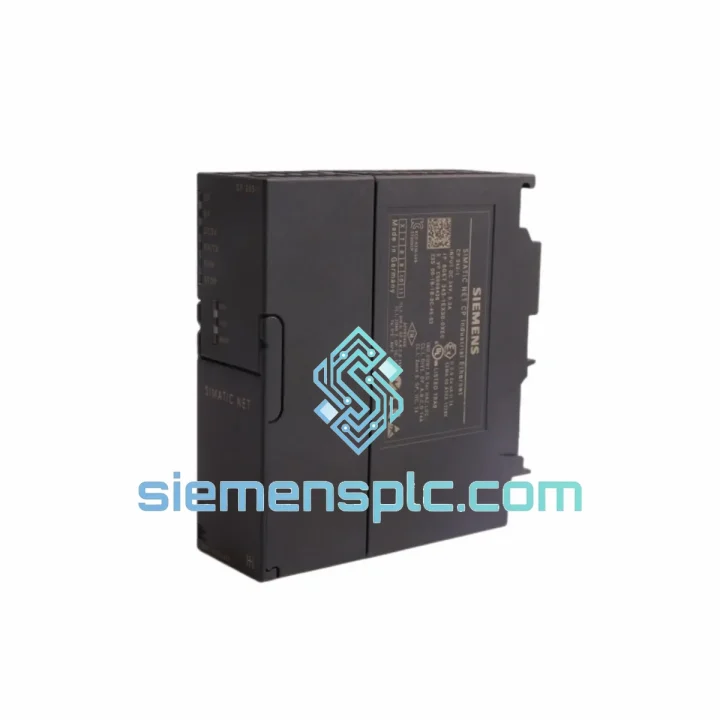

Siemens 6GK7343-1EX30-0XE0 Communication Processor

6GK7343-1EX30-0XE0 CP 343-1 — Cut the Downtime, Restore Your S7-300 Network in Hours

Your S7-300 line just lost Ethernet connectivity. SCADA is blind. The shift supervisor is standing behind you. Every minute the CP 343-1 slot sits empty costs real money — in automotive body shops that figure runs north of $10,000/hour; in chemical batch processes, a missed cycle window can mean scrapping an entire reactor load. The Siemens 6GK7343-1EX30-0XE0 is in stock at our Xiamen warehouse right now. We ship same business day via DHL Express. That is the only number that matters when you are staring at a dead communication processor at 2 AM.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes on the 6GK7343-1EX30-0XE0:

1. BF LED solid red after power-on
This is the single most reported fault. Nine times out of ten it means the module has lost its configuration — either the STEP 7 project was never downloaded after a hardware swap, or the module firmware does not match the project’s hardware catalog entry. Fix: open HW Config, verify the order number in the slot matches 6GK7343-1EX30-0XE0 exactly (not EX21 or EX11), compile, and download. If BF persists, check that the IP address assigned in HW Config does not conflict with another node on the subnet.

2. SF LED flashing — PROFINET IO device not found
After swapping the CP, the new module ships with a blank device name. PROFINET IO requires the device name to match the configuration exactly. Use the “Accessible Nodes” function in STEP 7 / TIA Portal to assign the correct PROFINET device name before downloading. Skipping this step is the #1 cause of post-replacement SF faults.

3. Module recognized in HW Config but no S7 routing across subnets
Verify that S7 Routing is enabled in the CP properties (“Routing” tab in HW Config). Also confirm that the router/switch between subnets has the correct static routes or that LLDP neighbor discovery is not blocked by managed switch ACLs. The CP 343-1 uses LLDP for topology detection — some IT-managed switches disable LLDP by default.

4. Firmware mismatch after replacement
The EX30 generation (hardware revision 5 and above) requires STEP 7 V5.5 SP4 HF5 or later for full PROFINET IO controller functionality. If you are running an older STEP 7 version, the module will appear in HW Config but PROFINET IO controller mode will not activate. Check the firmware version via the module’s web server (default IP: assigned in HW Config) or via STEP 7 diagnostics.

Step-by-step replacement procedure:

1. Power down the S7-300 rack (or use hot-swap if your rack supports it — most S7-300 racks do NOT support hot-swap on CP slots).
2. Note the slot position of the failed CP. The 6GK7343-1EX30-0XE0 must occupy the same slot number as defined in HW Config.
3. Remove the failed module. Retain the RJ45 cable label for reconnection.
4. Seat the replacement module firmly until the bus connector clicks. Do not force — misaligned bus connectors are a common cause of immediate BF faults on new modules.
5. Power up the rack. Observe LED sequence: PWR (green) → RUN (green) → brief BF flash during initialization is normal.
6. If BF remains after 30 seconds, connect your PG/PC and use STEP 7 / TIA Portal to download the hardware configuration to the CPU (not just the CP).
7. Assign the PROFINET device name via “Accessible Nodes” if PROFINET IO is in use.
8. Verify all 64 connection slots in the CP diagnostics — confirm active connections match your expected node count.

No DIP switches or rotary address switches on this module. The 6GK7343-1EX30-0XE0 is fully software-configured via STEP 7 / TIA Portal. IP address, subnet mask, gateway, and PROFINET device name are all assigned through HW Config — there is no hardware addressing mechanism to set.

Reliability in Harsh Conditions

The CP 343-1 platform was engineered for the realities of the plant floor, not a climate-controlled server room. The 6GK7343-1EX30-0XE0 carries IEC 61131-2 compliance and has been validated against the following stress conditions:

Vibration & Mechanical Shock: Tested to IEC 60068-2-6 (sinusoidal vibration, 10–58 Hz, 0.075 mm amplitude; 58–150 Hz, 1 g) and IEC 60068-2-27 (shock, 15 g, 11 ms half-sine). This covers the vibration profiles of press lines, compressor rooms, and rail-mounted control cabinets.

Thermal Cycling: Rated for continuous operation at 60 °C ambient — the upper limit of a sealed industrial cabinet in a tropical climate without forced air cooling. The conformal-coated PCB resists thermal expansion stress across repeated heat cycles, which is the primary long-term failure mechanism in communication modules mounted near heat-generating drives.

Humidity & Condensation: Tested to IEC 60068-2-30 (damp heat, cyclic, 25–55 °C, 95% RH). The module is not rated for condensing environments in continuous operation, but the conformal coating provides meaningful protection during brief condensation events — common in facilities with aggressive air conditioning cycling.

EMC: Meets EN 61000-6-2 (industrial immunity) and EN 61000-6-4 (industrial emissions). The module’s internal shielding architecture handles the high-frequency noise environment generated by variable-frequency drives and servo amplifiers sharing the same cabinet — a scenario where cheaper third-party communication modules routinely fail.

ATEX / Hazardous Area: The 6GK7343-1EX30-0XE0 carries ATEX certification for Zone 2 installation (gas group IIC, temperature class T4) when installed in a certified Ex e enclosure. Verify your specific approval certificate against the module’s serial number label before installation in classified areas.
