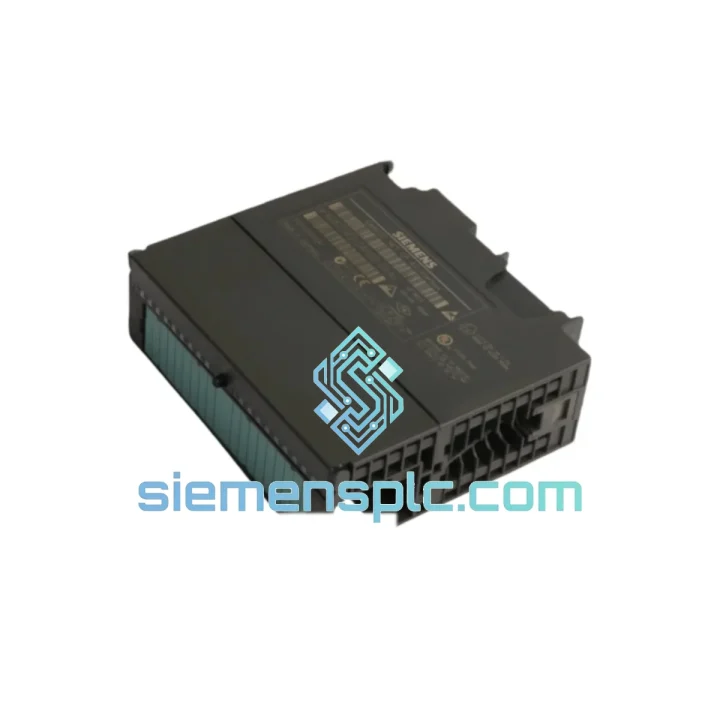

Siemens 6GK7343-2AH00-0XA0 Communications Processor – CP 343-2 AS-Interface

Siemens 6GK7343-2AH00-0XA0 CP 343-2: AS-Interface Master Integration in S7-300 Control Architecture

The Siemens 6GK7343-2AH00-0XA0 is the CP 343-2 AS-Interface master communications processor engineered for the SIMATIC S7-300 modular PLC platform. Its primary function within a control loop is to serve as the sole master on a single AS-Interface segment, managing cyclic polling of up to 31 standard slaves or 62 A/B slaves at a fixed cycle time of approximately 5 ms per 31-slave segment. This deterministic polling architecture eliminates the non-determinism inherent in token-passing or CSMA/CD field bus topologies, making the CP 343-2 the correct selection for discrete I/O aggregation tasks where scan-cycle predictability directly affects machine throughput and safety interlock response.

The module occupies a single slot on the S7-300 mounting rail and draws its operating power entirely from the backplane bus — no external 24 V DC wiring to the module itself is required. Data exchange with the S7-300 CPU occurs via the internal K-bus (backplane bus), where the CP 343-2 maps AS-i slave I/O data into a defined process image area accessible through standard STEP 7 or TIA Portal I/O addressing. This tight coupling between the AS-i segment and the CPU process image means that field device state changes propagate to the CPU within one combined AS-i cycle plus one CPU scan cycle, a latency profile that is fully calculable at engineering time.

The CP 343-2 also provides integrated AS-i power supply monitoring: it continuously checks the AS-i line voltage and reports undervoltage or short-circuit conditions as diagnostic events to the S7-300 diagnostic buffer, enabling the CPU to execute fault-response routines without requiring a separate monitoring relay. This embedded diagnostic transparency is a measurable engineering advantage in installations where unplanned downtime carries a quantifiable cost per minute.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CP 343-2 implements the AS-Interface master protocol in dedicated onboard firmware running on an application-specific controller, separate from the S7-300 CPU’s main processing core. This architectural separation means that AS-i bus management — slave polling, address assignment, fault detection — consumes zero CPU cycle time. The CPU receives only the pre-processed I/O image, which is a significant advantage in cycle-time-critical applications where every microsecond of CPU scan time is budgeted.

Galvanic Isolation: The AS-i bus interface is galvanically isolated from the S7-300 backplane bus. This isolation barrier, implemented via optocoupler stages on the data path and a DC/DC converter on the power path, prevents ground loops and common-mode transients on the AS-i cable from propagating into the CPU rack. In installations where the AS-i cable runs through electrically noisy environments — motor drive cabinets, welding cells, or high-current bus bars — this isolation is not optional; it is the primary EMC protection mechanism.

AS-i Line Monitoring: The module’s onboard analog front-end continuously samples the AS-i bus voltage at a rate sufficient to detect short-duration transients. Undervoltage thresholds are set per the AS-Interface specification (18 V DC minimum on the AS-i line). Any deviation triggers a diagnostic interrupt that the S7-300 CPU can process via OB82, enabling deterministic fault response without polling overhead.

Address Assignment and LPS: The CP 343-2 supports the AS-i List of Projected Slaves (LPS) mechanism. During commissioning, the engineer programs the expected slave list into the module via STEP 7 hardware configuration. At runtime, the module compares the detected slave list against the LPS on every cycle. Any discrepancy — a missing slave, an unexpected slave, or an address conflict — is flagged immediately as a configuration fault, providing a self-checking topology verification that requires no additional diagnostic hardware.

Firmware Architecture: The module’s firmware handles the full AS-i master state machine: normal operation, offline phase, detection phase, and activation phase. Slave address programming (via the AS-i addressing unit or through the STEP 7 interface) is supported without removing the module from the rack, reducing commissioning time in multi-slave installations.

System Integration Benefits

• Deterministic I/O scan latency: Fixed 5 ms AS-i cycle for 31 slaves provides a calculable worst-case response time for safety interlock and machine sequencing logic, eliminating the latency uncertainty of Ethernet-based field buses in non-TSN configurations.
• Zero CPU load for bus management: All AS-i master protocol processing is offloaded to the CP 343-2’s dedicated controller. The S7-300 CPU OB1 cycle is not burdened by communication overhead, preserving scan time budget for process logic.
• Transparent diagnostic integration: Slave faults, line faults, and configuration mismatches are reported directly to the S7-300 diagnostic buffer and can trigger OB82/OB86 interrupt routines, enabling structured fault handling without custom polling logic in the user program.
• Flat wiring topology: AS-Interface uses a single unshielded two-wire cable for both data and 30 V DC auxiliary power to slaves, reducing field wiring cost and installation time compared to conventional parallel I/O wiring or multi-conductor shielded cables required by other field buses.
• Scalable slave count: A/B slave addressing doubles the addressable device count to 62 without adding a second AS-i segment or a second CP module, preserving rack slot budget in space-constrained panels.
• TIA Portal and STEP 7 compatibility: The module is fully configurable in both SIMATIC STEP 7 V5.x and TIA Portal V13 and later, supporting migration projects where legacy S7-300 hardware is retained while the engineering environment is upgraded.
• Hot-swap slave replacement: AS-i slaves can be replaced in the field without stopping the master or the CPU, provided the replacement slave is pre-addressed. The CP 343-2 automatically re-integrates the slave into the active slave list within one detection cycle, minimizing production interruption during maintenance.
• Safety slave support (with CP 343-2 P variant awareness): While the standard 6GK7343-2AH00-0XA0 is a non-safety master, it operates on the same AS-i segment as AS-i Safety at Work (ASIsafe) slaves when paired with a safety monitor, allowing mixed standard and safety I/O on a single cable run — a topology that reduces infrastructure cost in machines requiring both standard and SIL-rated I/O.

Quality Assurance & Global Logistics

Every unit of the Siemens 6GK7343-2AH00-0XA0 supplied through siemensplc.com is a genuine Siemens product sourced through verified industrial supply channels. Authenticity is confirmed by cross-referencing the module’s MLFB label, firmware version marking, and housing serial number against Siemens production records where accessible. We do not supply refurbished-as-new, remarked, or unverified grey-market units.

Our warehouse is located in Xiamen, China — a major export hub with direct access to international freight carriers. In-stock orders are typically dispatched within 1–3 business days. Available shipping methods include DHL Express, FedEx International Priority, UPS Worldwide Expedited, and sea freight consolidation for bulk orders. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every shipment. HS Code 8537.10 is applied for customs classification. For regulated industries or project procurement requiring third-party inspection (SGS, Bureau Veritas), this can be arranged prior to dispatch at the buyer’s cost.

All units are packed in anti-static ESD shielding bags, placed in foam-lined cartons, and sealed with tamper-evident tape. The 12-month warranty covers manufacturing defects and covers DOA (Dead on Arrival) replacement. Warranty claims are processed with a target response time of 48 business hours from receipt of the defective unit.
