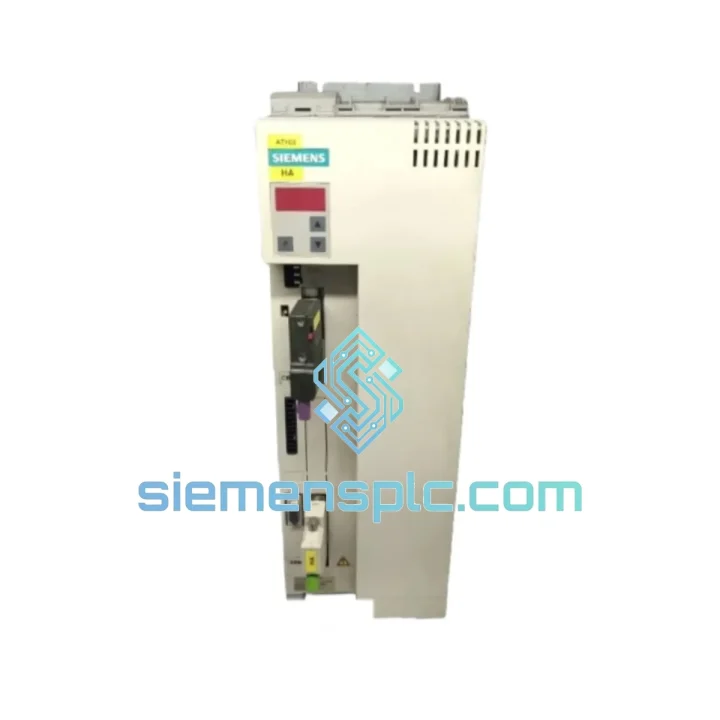

Siemens 6SE7022-6TP50-Z AC Drive – SIMOVERT MASTERDRIVES MC

Siemens 6SE7022-6TP50-Z – Closed-Loop Vector Control at the Core of Multi-Axis Motion Architecture

In coordinated multi-axis motion systems — servo press lines, winding machines, crane hoists, and high-speed packaging — the inverter unit is not a peripheral component. It is the torque-generation engine that determines whether the control loop closes with sub-millisecond precision or accumulates phase lag that propagates into positional error. The Siemens 6SE7022-6TP50-Z is a Compact Plus format unit from the SIMOVERT MASTERDRIVES Motion Control (MC) series, a platform engineered specifically for servo-class dynamic performance in AC vector drive applications.

The MASTERDRIVES MC architecture separates itself from general-purpose variable frequency drives through its dedicated motion control firmware layer, fast current controller execution cycles, and native support for technology boards (T100, T300, T400) that execute application-specific motion programs — cam tables, winder tension algorithms, electronic gearing — directly on the drive hardware without offloading computation to an external PLC. This embedded processing capability reduces fieldbus round-trip latency from the control loop and allows the drive to maintain deterministic torque response independent of PLC scan cycle jitter.

The “-Z” suffix in the Siemens MLFB ordering system designates a factory-configured option variant. The base order code 6SE7022-6TP50 defines the power class and hardware platform; the appended “-Z” indicates that one or more factory options — such as a specific communication board, modified firmware revision, or application-specific hardware configuration — have been integrated at the point of manufacture. This is not a field modification. The option set is encoded in the unit’s nameplate and must be cross-referenced against the original Siemens order documentation to confirm the exact build state.

The Compact Plus enclosure format delivers a higher power-to-volume ratio compared to the standard Compact format, achieved through optimized thermal management and a denser PCB layout. This makes the 6SE7022-6TP50-Z the preferred selection for machine builders integrating multiple drive axes into space-constrained control cabinets, where each millimeter of rail space carries a cost in cabinet size, cooling capacity, and installation labor.

DC bus coupling is a structural feature of the Compact Plus platform. Multiple units installed on a shared DC bus rail exchange energy directly between braking and motoring axes. A decelerating axis regenerates kinetic energy back onto the DC bus; an accelerating axis on the same bus consumes that energy without routing it through the AC supply or a braking resistor. In multi-axis applications with alternating acceleration and deceleration profiles — such as a flying shear or a coordinated winder/unwinder pair — this architecture measurably reduces peak supply current demand and eliminates or downsizes braking resistor assemblies.

PROFIBUS-DP integration via the CBP2 communication board places the 6SE7022-6TP50-Z natively within SIMATIC S7-300, S7-400, and S7-1500 (DP master mode) automation architectures. The drive appears on the PROFIBUS network as a standard DP slave using the published GSD file. Process data exchange — speed reference, control word, actual speed, status word, fault codes — occurs within the PROFIBUS cycle time, typically 1–10 ms depending on network configuration. This deterministic data exchange is the foundation for closed-loop speed and torque control from the PLC level.

Encoder feedback is handled through the SBP (Sensor Board Pulse) or SBR (Sensor Board Resolver) option boards. The SBP board accepts HTL (push-pull, 10–30 V) and TTL (differential, 5 V RS-422) incremental encoders, as well as SSI absolute encoders. The SBR board interfaces with resolver-type feedback transducers. The selected feedback device connects directly to the drive’s control unit, providing the actual speed signal for the closed-loop vector controller without passing through an intermediate signal conditioner.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MASTERDRIVES MC Compact Plus power stage is built around an IGBT inverter bridge with gate driver circuits isolated from the control electronics via optocoupler barriers. This optical isolation between the power semiconductor switching signals and the low-voltage control board is the primary EMC defense mechanism: high dV/dt transients generated during IGBT switching — typically 1–10 kV/µs on the motor cable — are prevented from coupling into the signal processing layer through the gate driver isolation boundary.

The control unit (CU) board executes the vector control algorithm in a fixed interrupt cycle. The current controller — the innermost loop — runs at the PWM carrier frequency, typically 2.5 kHz or 5 kHz depending on configuration. At 5 kHz carrier, the current controller executes every 200 µs. The speed controller runs at a slower rate, typically every 1–4 ms. This hierarchical loop structure — fast current inner loop, slower speed outer loop — is the standard architecture for high-performance AC vector drives and is what separates servo-class drives from scalar V/f drives in dynamic response capability.

The DC bus capacitor bank in the Compact Plus format is sized for the power class of the unit. The capacitor bank serves two functions: it filters the rectified DC supply voltage (reducing ripple that would otherwise appear as torque ripple on the motor shaft) and it provides a short-term energy reservoir during transient load spikes. In DC bus coupling configurations, the capacitor bank also acts as the energy buffer between regenerating and motoring axes.

The technology board interface — whether T100, T300, or T400 — connects to the CU via a parallel backplane interface within the Compact Plus housing. The T400, the highest-performance option, contains its own DSP processor and executes application programs at cycle times down to 1 ms, independent of the CU’s main control cycle. This means cam table interpolation, tension control PID loops, and electronic gearing calculations run on dedicated silicon without competing for CU processing bandwidth.

EMC compliance at the system level requires attention to motor cable shielding, PE bonding, and filter selection. The Compact Plus platform is designed for use with Siemens-specified line filters and motor reactors. Unshielded motor cables or missing PE connections at the drive output terminal will compromise the conducted emission performance of the installation regardless of the drive’s internal EMC design.

System Integration Benefits

• Deterministic torque response: Fast current controller cycle (200 µs at 5 kHz carrier) delivers torque setpoint tracking with minimal phase lag, critical for tension control and electronic cam applications.
• Embedded motion program execution: T100/T300/T400 technology boards execute cam tables, winder algorithms, and positioning sequences on-drive, eliminating PLC scan cycle dependency from the motion loop.
• PROFIBUS-DP native integration: Standard GSD file and drive function blocks enable direct integration into SIMATIC S7 TIA Portal projects without custom protocol development.
• DC bus energy recovery: Shared DC bus coupling between Compact Plus units allows braking energy from decelerating axes to directly power accelerating axes, reducing peak supply current and braking resistor thermal load.
• Diagnostic transparency: MASTERDRIVES MC firmware provides structured fault and alarm codes accessible via PROFIBUS process data, drive operator panel, or DriveMonitor PC tool — enabling root-cause identification without physical access to the cabinet.
• Multi-encoder feedback compatibility: HTL, TTL, SSI, and resolver interfaces on a single platform eliminate the need for external signal converters when integrating drives with different machine encoder standards.
• Scalable multi-axis architecture: Compact Plus units share a common DC bus rail and can be expanded by adding additional units to the rail without redesigning the supply infrastructure.
• Parameter cloning and backup: Drive parameters can be uploaded to a PC via DriveMonitor or stored on a memory card, enabling rapid replacement commissioning without manual parameter re-entry.
• Proven global install base: SIMOVERT MASTERDRIVES has accumulated decades of field deployment across automotive, metals, paper, and packaging industries — spare parts availability, engineering documentation, and third-party service expertise are well-established.
• Factory -Z option traceability: Factory-configured option variants are documented in Siemens’ order management system, providing a traceable build record for maintenance and replacement procurement.
