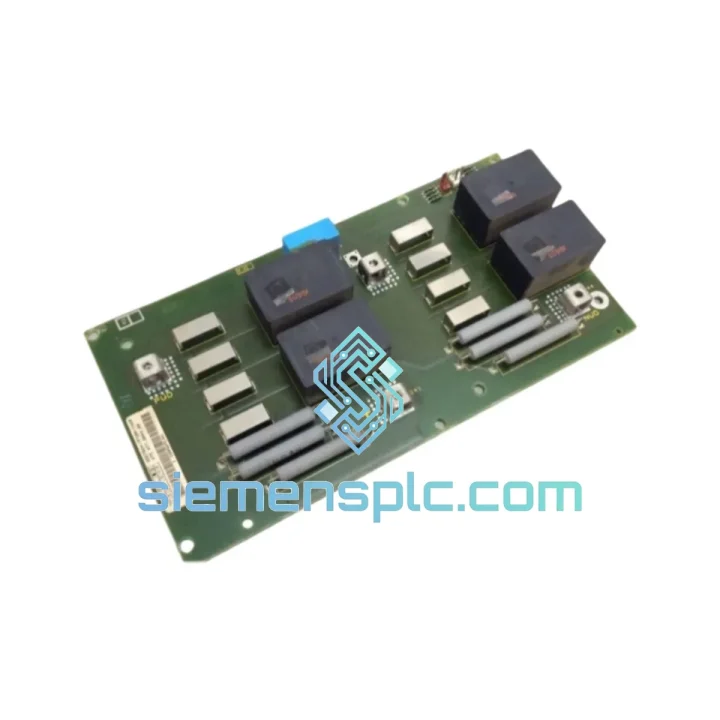

Siemens 6SE7024-7FD84-1HH0 AC Drive

6SE7024-7FD84-1HH0 — Production Halted? This Drive Ships Before Your Next Shift Change.

Three hours into an unplanned shutdown, the maintenance team has confirmed it: the SIMOVERT MASTERDRIVES MC drive is gone. The OEM distributor quotes 6–8 weeks. Your production manager is already on the phone. This is exactly the gap we fill. The Siemens 6SE7024-7FD84-1HH0 sits on our Xiamen shelf, fully inspected, bench-verified, and cleared for same-day dispatch. We’ve been in this business long enough to know that the cost of a replacement drive is trivial compared to what a 72-hour line stoppage does to your quarterly output. Stop calculating downtime losses — let’s get your line moving.

The 6SE7024-7FD84-1HH0 is a 22 kW (30 HP) closed-loop vector drive from Siemens’ SIMOVERT MASTERDRIVES Motion Control family. The -1HH0 option code identifies the factory-fitted CBP2 PROFIBUS DP communication board — no external gateway, no adapter card, no re-wiring. It connects natively to S7-300, S7-400, and S7-1500 controllers via standard PROFIBUS DP protocol. Restore your parameter backup and the drive is back in service. That’s the fastest path from fault to production, and it’s the only path we care about.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field callouts on MASTERDRIVES MC platforms teach you patterns. The faults below account for the majority of emergency replacements we see — and in several cases, the drive itself is not the root cause. Misdiagnosis here means you’ll burn through a second unit.

Fault Code Field Reference:

• F002 — DC Bus Overvoltage: Occurs during deceleration when regenerative energy has nowhere to go. Measure DC bus voltage under load deceleration before condemning the drive. If the bus exceeds 800 V DC, the braking chopper or resistor circuit is the culprit — not the drive. Replacing the drive without fixing the braking circuit will produce an identical fault within minutes.
• F011 — Output Overcurrent / Short Circuit: Always megger the motor at 500 V DC before energizing the replacement. Phase-to-ground insulation below 1 MΩ means the motor winding is compromised. A shorted motor will destroy the output IGBT stage of a new drive in under a second. This is the most common cause of repeat drive failures on aging machinery.
• F023 — Ground Fault Detected: Trace the motor cable shielding from drive terminal PE to motor terminal box. Ungrounded or broken shield continuity on cable runs exceeding 50 m is a recurring source of nuisance ground faults on this platform. Install a dU/dt output filter if cable length cannot be reduced.
• F041 — Speed Deviation / Motor Stall: In closed-loop encoder mode, verify the SBP encoder board seating and inspect the encoder cable for micro-fractures near the motor conduit entry. A degraded encoder signal produces speed deviation faults that are indistinguishable from mechanical overload without oscilloscope verification.
• A070/A071 — Thermal Overload Pre-Warning: The internal cooling fan on the 6SE7024 frame is a wear item. Confirm it spins freely at power-on. A seized fan bearing causes progressive thermal derating before triggering a hard shutdown. Clean the heatsink intake grille with dry compressed air every 6 months in dusty environments.

Pre-Energization Replacement Checklist:

• Retrieve the parameter backup from DriveMonitor, the PMU memory card (P052 = 22 saves to card), or the DCS historian. If the faulted drive is completely unresponsive, check the SCADA system for the last uploaded parameter set — most integrators archive these automatically.
• Verify firmware compatibility: read P060 on the replacement unit. The CBP2 PROFIBUS board firmware must match the drive firmware revision. A mismatch generates F090 communication faults that mimic hardware failure and waste hours of diagnostic time.
• Set PROFIBUS node address via P918 before connecting to the network. The CBP2 board on the -1HH0 variant uses software addressing — there is no physical DIP switch. Connecting with the default address 0 causes bus conflicts that can disrupt other nodes on the same segment.
• If the replacement unit has been in storage for more than 18 months, perform a DC bus capacitor reformation cycle: apply 50% of rated input voltage for 30 minutes before full energization. Skipping this step on long-stored units risks capacitor failure under first full-voltage startup.
• After parameter restore, execute a stationary motor identification (P115 = 2) if motor nameplate data differs from the original installation. The routine takes approximately 90 seconds and recalculates stator resistance and leakage inductance — critical for stable torque control on the first production run.

Reliability in Harsh Conditions

The SIMOVERT MASTERDRIVES MC platform was engineered for industrial environments that would destroy consumer-grade electronics within a season. Steel mill auxiliary drives, port crane hoists, paper machine section drives, and cement plant conveyors — these are the applications this hardware was validated against, not laboratory benchmarks.

The 6SE7024-7FD84-1HH0 power stage uses press-fit IGBT modules mounted to copper bus bars, a construction method that maintains electrical integrity through thousands of thermal expansion and contraction cycles — the kind of cycling that cracks solder joints on cheaper designs within two years of operation. The control board carries a conformal coating that resists condensation, light oil mist, and the corrosive atmosphere common in chemical processing and food production facilities. The forced-air cooling path is accessible for in-place maintenance without removing the drive from the cabinet, a practical detail that matters when the drive is mounted in the middle of a packed MCC.

Before any unit leaves our Xiamen facility, it passes a structured inspection protocol: visual examination of all PCBs and power terminals for arc tracking, corrosion, or evidence of prior repair; a powered functional test confirming parameter read/write access and output stage continuity; firmware version documentation matched to the unit label; and ESD-safe packaging in anti-static bag with foam-lined double-wall export carton. Units that show signs of re-labeling, counterfeit markings, or unauthorized repair are rejected and destroyed — they do not enter our inventory under any circumstances.

Global Express Logistics

Our warehouse operates in Xiamen, Fujian — a primary export hub with direct DHL Express, FedEx International Priority, and UPS Worldwide Express gateway access. Same-day dispatch cutoff is 16:00 CST. The sequence from your purchase order to your receiving dock is consistent and documented:

• Order Confirmed → Same Day: Unit pulled, bench-tested, photographed for condition record, packed in ESD-safe anti-static bag inside a foam-cushioned double-wall export carton. Commercial invoice and packing list prepared.
• Day 1 — Export: Shipment tendered to DHL Express or FedEx International Priority with HS Code 8504.40 declaration. Tracking number transmitted to buyer within 2 hours of carrier pickup scan.
• Day 2–4 — Delivery: Standard transit to Europe, North America, Southeast Asia, and the Middle East. Australia, South America, and remote destinations typically require 1–2 additional days.
• Customs Documentation: We prepare Certificate of Origin, commercial invoice with accurate HS classification, and packing list. For destinations requiring import permits or advance customs coordination, we flag this at order confirmation — no surprises at the border.
• Priority Routing: For situations where transit time is the only variable that matters, contact us directly before placing the order. We will identify the fastest available routing for your destination and confirm the committed delivery window.

We have shipped to plant sites across Germany, the United States, India, Australia, Brazil, Saudi Arabia, South Korea, and more than 40 additional countries. The process is identical every time: documented, traceable, and built around getting your line back up — not around our convenience.
