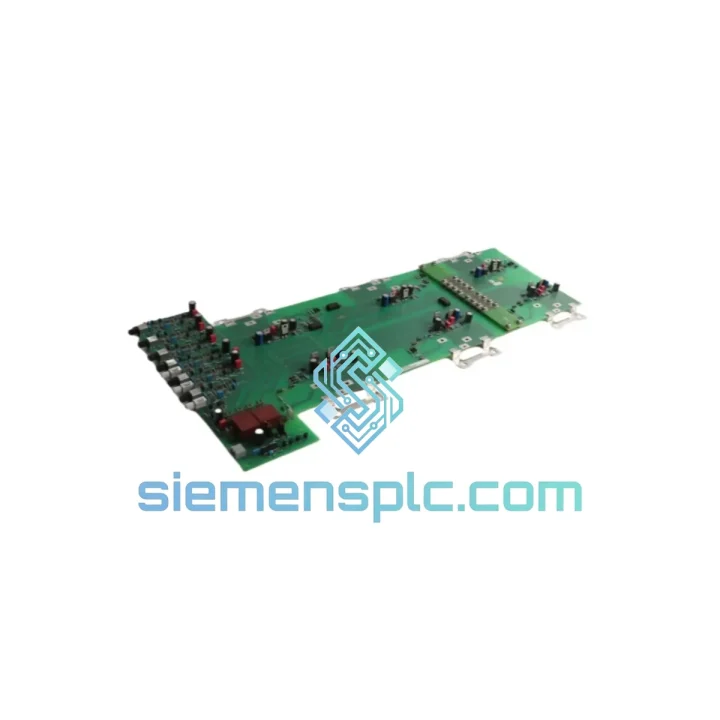

Siemens 6SE7035-1EJ84-1JC2 Inverter Module – SIMOVERT MASTERDRIVES

Siemens 6SE7035-1EJ84-1JC2 — High-Power Vector Control Inverter Module for Industrial Drive Systems

The Siemens 6SE7035-1EJ84-1JC2 is a 160 kW-class inverter module within the SIMOVERT MASTERDRIVES Vector Control (VC) platform, a drive architecture that Siemens developed specifically for applications where torque accuracy, dynamic response, and fieldbus integration are non-negotiable engineering requirements. This unit occupies the inverter stage of a modular DC-bus drive system: it receives rectified DC from a separate supply module, synthesizes a variable-frequency, variable-voltage three-phase output via IGBT switching, and delivers closed-loop vector-controlled torque to the connected motor. The -1JC2 option suffix confirms factory-fitted CBP2 PROFIBUS DP communication, making this module a native node on any PROFIBUS network without additional hardware.

Deployed across steel rolling mills, paper machine section drives, mine hoists, marine thrusters, and large pump stations, the 6SE7035-1EJ84-1JC2 addresses the class of applications where a standard scalar-controlled drive is insufficient. Its vector control algorithm resolves stator flux and torque-producing current components independently, enabling full rated torque delivery at zero speed — a requirement in winding, positioning, and crane applications that simpler drives cannot meet.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

IGBT Power Stage and Gate Drive Architecture
The output stage of the 6SE7035-1EJ84-1JC2 uses a three-phase IGBT bridge rated for the 315 A continuous current class. Each IGBT is driven by an isolated gate drive circuit with desaturation detection: if a short-circuit condition causes collector-emitter voltage to rise above the desaturation threshold during the on-state, the gate drive shuts off the device within 2–3 µs and latches a fault — well within the safe operating area (SOA) of the IGBT. This hardware-level protection operates independently of the firmware, meaning it cannot be defeated by software misconfiguration.

DC Bus Capacitor Bank and Voltage Ripple Management
As an inverter-only module, the 6SE7035-1EJ84-1JC2 connects to a shared DC bus supplied by a separate rectifier or active front-end unit. The module contains a local capacitor bank sized to absorb switching-frequency ripple current and to provide ride-through energy during brief supply interruptions. The capacitor bank is thermally monitored; the firmware tracks estimated capacitor temperature based on RMS ripple current and ambient temperature, generating a pre-warning before capacitor degradation affects output quality.

EMC Design and Conducted Emission Suppression
The MASTERDRIVES VC platform was designed to meet EN 61800-3 Category C3 (industrial environment, unrestricted distribution) without external filtering when installed with the recommended line reactor. The PCB layout separates high-dV/dt switching nodes from the control and communication circuitry using a ground plane partition strategy. Ferrite cores on gate drive leads suppress common-mode current injection into the motor cable. For installations with cable runs exceeding 50 m, Siemens specifies an output dV/dt filter (e.g., 4EP3xxx series) to limit motor terminal voltage overshoot below 1000 V peak, protecting motor winding insulation.

Vector Control Signal Processing
The control unit (CU) paired with this inverter module executes the field-oriented control (FOC) algorithm on a dedicated DSP at a current control cycle time of 1.7 ms (at 2.5 kHz switching frequency). The flux model operates in parallel, estimating rotor flux angle from measured stator currents and either motor model parameters (sensorless) or encoder position (closed-loop). The torque setpoint is resolved into d-axis (flux-producing) and q-axis (torque-producing) current references, which are then regulated by independent PI controllers. This decoupled structure means a step change in torque demand does not disturb the flux level, giving the drive its characteristic fast dynamic response.

Common DC Bus Energy Exchange
In multi-axis installations — typical in paper machines, winding lines, and test benches — multiple 6SE70xx inverter modules share a common DC bus. When one axis decelerates and regenerates energy, that energy flows directly into the DC bus and is consumed by accelerating axes, without returning to the AC supply. This internal energy exchange reduces peak demand on the supply transformer and eliminates the need for braking resistors in balanced multi-axis systems. The 6SE7035-1EJ84-1JC2 participates in this architecture as a standard inverter node; the rectifier module manages bus voltage regulation.

System Integration Benefits

• Native PROFIBUS DP node via CBP2: The -1JC2 suffix confirms the CBP2 board is factory-installed. The drive appears as a standard PROFIBUS slave using the Siemens GSD file, compatible with SIMATIC S7-300, S7-400, S7-1500, and any third-party PROFIBUS master. Cyclic process data exchange (PZD) carries speed setpoint and status word at the network scan rate; acyclic parameter access (DPV1) allows online parameter read/write without interrupting the drive.
• Deterministic torque response: Closed-loop vector control with encoder feedback achieves torque rise times below 5 ms, meeting the dynamic requirements of tension-controlled winding, flying shear, and servo-class positioning without a dedicated servo drive.
• Sensorless operation capability: SLVC mode eliminates the encoder and its associated wiring, connectors, and failure modes in applications where absolute position is not required — reducing BOM cost and improving MTBF in dusty or vibration-intensive environments.
• Integrated diagnostic transparency: The drive maintains a fault history buffer with timestamps, fault codes, and operating data snapshots (current, voltage, frequency, temperature) at the moment of each fault. This data is accessible via PROFIBUS DPV1 or the OP1S operator panel, enabling root-cause analysis without external data loggers.
• Thermal derating management: The firmware continuously monitors heatsink temperature via NTC sensor and automatically reduces switching frequency or output current before an over-temperature trip occurs, maximizing uptime in high-ambient installations.
• Motor data identification (MDS): An automated motor identification routine measures stator resistance, leakage inductance, and magnetizing inductance at standstill, then optimizes the vector control parameters for the specific connected motor — eliminating manual parameter tuning and reducing commissioning time.
• Common DC bus energy recovery: In multi-drive systems, regenerative energy from decelerating axes is consumed by accelerating axes on the same bus, reducing net energy consumption and eliminating braking resistor heat dissipation in balanced systems.
• Scalable drive train architecture: The MASTERDRIVES platform supports rectifier modules from 15 kW to multi-megawatt ratings on the same DC bus, allowing system capacity to be expanded by adding inverter modules without replacing the supply infrastructure.
• Standardized parameter structure (BICO): The Binector/Connector (BICO) parameter interconnection system allows internal signal routing — speed actual value, torque limit, enable signals — to be configured entirely in software, reducing external wiring and enabling complex control structures without additional hardware.
• Long-term spare parts availability: The SIMOVERT MASTERDRIVES platform has an established global spare parts and repair ecosystem. Replacement IGBTs, gate drive boards, and capacitor kits are available through Siemens service channels, supporting 20+ year plant lifecycles.

Quality Assurance & Global Logistics

Every unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Visual inspection covers label authenticity, nameplate data consistency with the ordered part number, connector integrity, and absence of physical damage or corrosion indicative of improper storage. Where test equipment is available, power-on functional verification confirms that the control electronics initialize correctly and that no latent fault codes are present in the fault history buffer.

Packaging follows anti-static and moisture-control standards: each module is sealed in an ESD-protective bag with a humidity indicator card, placed in foam-lined cartonage sized to prevent movement during transit. For air freight, units are packed to IATA standards; for sea freight, additional moisture-absorbing desiccant packs are included.

All units carry a 12-month warranty from the date of dispatch. Warranty coverage addresses defects in materials and workmanship under normal operating conditions as defined by Siemens technical documentation. Certificates of conformity and available test records are provided on request.

Logistics from Xiamen reach major industrial hubs efficiently: DHL Express and FedEx International Priority typically deliver to Europe in 3–5 business days, to North America in 4–6 business days, and to Southeast Asia in 1–3 business days. Sea freight consolidation is available for project-volume orders. DDP (Delivered Duty Paid) and DAP (Delivered At Place) Incoterms are supported for most destinations, simplifying customs clearance for the buyer.
