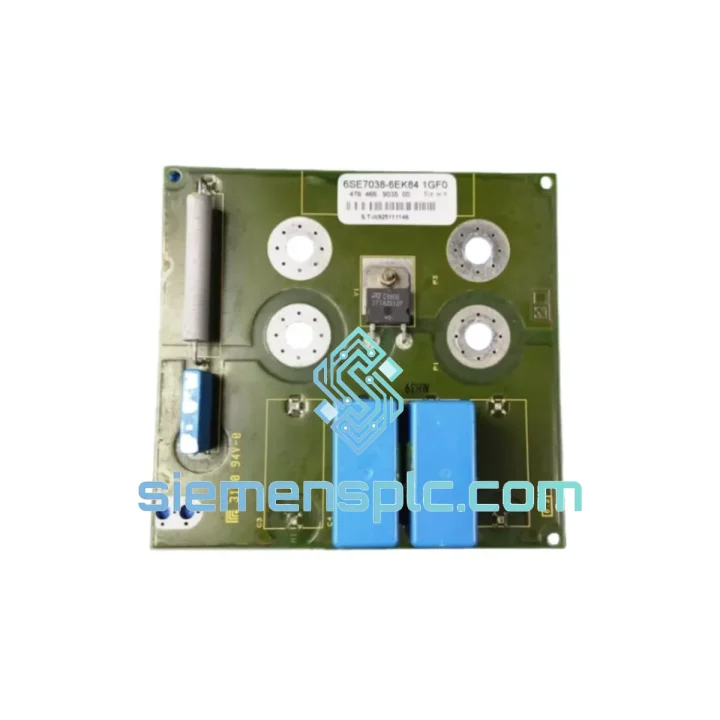

Siemens 6SE7038-6EK84-1GF0 Drive Input Module – MASTERDRIVES 6SE7

Siemens 6SE7038-6EK84-1GF0 – Rectifier Input Module for MASTERDRIVES MC/VC High-Power Drive Systems

The 6SE7038-6EK84-1GF0 is a rectifier and input stage module within the Siemens MASTERDRIVES 6SE7 platform, designed to condition and convert three-phase AC mains power into a stable DC link voltage for downstream inverter stages. In high-power drive cabinets operating at the 380 kW–560 kW range, this module functions as the front-end power conversion block, directly governing DC bus voltage quality, harmonic injection into the supply network, and the dynamic response ceiling of the entire drive train. Its correct specification and installation are prerequisites for achieving the rated torque bandwidth of the connected motor.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SE7038-6EK84-1GF0 employs a six-pulse or twelve-pulse rectifier topology (configuration-dependent) using high-current IGBT or thyristor bridge assemblies rated for continuous conduction at the specified current class. The 1GF0 suffix designates the integrated forced-air cooling assembly, which uses a thermally monitored fan unit with speed feedback to the drive’s internal diagnostics register — a failure in the fan circuit triggers a fault code (F-word bit) before thermal shutdown, providing advance warning rather than abrupt trip.

The DC link capacitor bank within this module is sized to maintain voltage ripple below 5% of Ud under rated load, which is critical for preventing torque ripple in the downstream inverter stage. Capacitor pre-charge is managed by an NTC-based inrush limiter circuit that limits peak inrush current to below 10× rated current during power-on, protecting both the rectifier bridge and the upstream supply transformer from mechanical stress.

EMC performance is achieved through an integrated line-side filter network (common-mode choke + X/Y capacitors) that attenuates conducted emissions to comply with EN 61800-3 Category C2 limits without requiring an external EMC filter in most standard installations. The module’s PCB layout routes high-current DC bus conductors with opposing current paths to minimize stray inductance, reducing voltage overshoot on the DC link during fast load transients — a design detail that directly extends IGBT service life in the inverter stage.

The module communicates fault and status data to the MASTERDRIVES Control Unit via the internal parallel bus. Diagnostic data — including DC link voltage (Ud), rectifier temperature, fan status, and pre-charge state — are mapped to parameter r-words accessible through STARTER software or PROFIBUS DP, enabling condition monitoring without additional instrumentation hardware.

System Integration Benefits

• Direct DC bus coupling: Multiple 6SE7 modules can share a common DC bus, enabling regenerative energy exchange between motoring and braking drives without external braking resistors, reducing energy consumption in multi-drive systems by up to 30%.
• Deterministic pre-charge sequencing: The integrated pre-charge logic executes a timed ramp that prevents DC link voltage collapse during sequential module energization in multi-cabinet installations, maintaining system stability during startup.
• Parameterized fault response: Fault reaction times and restart behavior are configurable via STARTER/SCOUT parameter sets, allowing engineers to tune the drive’s response to supply disturbances without hardware modification.
• Thermal derating transparency: Real-time temperature data from the module’s NTC sensors is exposed as readable parameters (r-words), enabling SCADA systems to implement predictive load shedding before thermal limits are reached.
• Plug-compatible replacement: The 6SE7038-6EK84-1GF0 is mechanically and electrically interchangeable within the 6SE7 frame size GX/HX chassis, reducing spare-parts inventory complexity for plant maintenance teams.
• Integrated EMC compliance: The on-board filter network eliminates the need for a separate EMC filter cabinet in most Category C2 environments, reducing panel footprint and wiring complexity.
• Fan health monitoring: Fan speed and thermal status are continuously monitored and reported to the control unit, enabling predictive maintenance scheduling based on actual operating hours rather than fixed intervals.
• Broad toolchain compatibility: Full parameter access via STARTER, SCOUT, and Drive ES Basis; supports PROFIBUS DP, USS protocol, and analog/digital I/O interfaces for integration into existing plant automation architectures without gateway hardware.

Quality Assurance & Global Logistics

Every 6SE7038-6EK84-1GF0 unit dispatched from our Xiamen, China facility is a genuine Siemens-manufactured component sourced through verified industrial supply channels. Each unit undergoes a pre-shipment inspection covering label authenticity verification, connector and bus bar integrity check, and packaging condition assessment. Units are packed in anti-static foam-lined cartons with desiccant inserts to prevent moisture ingress during ocean or air freight transit.

Shipping is handled via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. Full export documentation is provided as standard: commercial invoice, packing list, certificate of origin (Xiamen Chamber of Commerce), and HS code declaration (HS 8537.10 / 8504.40 as applicable). For projects requiring multiple units or scheduled delivery against a maintenance plan, contact us for a formal quotation with lead-time commitment.

All units are covered by a 12-month warranty from the date of dispatch. Warranty claims are processed with a target response time of 48 hours and replacement dispatch within 5 business days upon fault confirmation.
