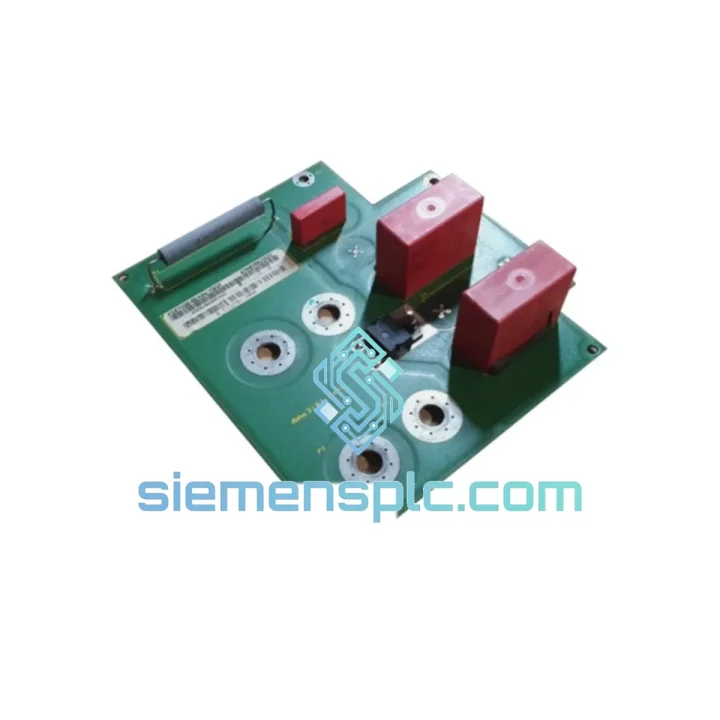

Siemens 6SE7038-6EK84-1GG0 AC Drive Output Module

6SE7038-6EK84-1GG0 In Stock Now — Every Hour of Downtime Costs You Money

Your MASTERDRIVES cabinet is down. The conveyor is stopped. The shift supervisor is on your back. You’ve already pulled the fault codes — F023, F028, or a hard IGBT overcurrent trip — and you know the output module is gone. The 6SE7038-6EK84-1GG0 is not a shelf item at your local distributor. Lead times from Siemens direct can stretch 8–14 weeks. We have it. It ships today from Xiamen.

We stock verified OEM Siemens MASTERDRIVES output modules specifically because procurement engineers and maintenance teams cannot afford to wait. One phone call or WhatsApp message and we confirm availability, issue a proforma, and hand it to DHL before your next shift change.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of pulling failed output modules out of MASTERDRIVES cabinets, here is what actually matters on the bench and on the floor:

Common fault codes pointing to this module:

• F023 – Output phase failure: One or more IGBT legs have failed open. Measure U2/V2/W2 output with the drive inhibited. Asymmetric resistance to DC bus negative rail confirms IGBT failure in that phase leg.
• F028 – Overcurrent / short circuit: Usually triggered by a shorted IGBT or a motor cable insulation breakdown. Before fitting the replacement module, megger the motor cable at 1000 V DC. A reading below 1 MΩ means the cable, not the module, caused the trip — fitting a new module into a shorted cable will destroy it within seconds of enabling.
• F035 – DC bus overvoltage during deceleration: Not always the output module, but a failed braking IGBT within the module can prevent regenerative braking from functioning. Check the braking chopper gate signal with an oscilloscope before condemning the module.
• Thermal fault / overtemperature: Blocked fan inlet or failed fan motor. The 6SE7038-6EK84-1GG0 uses a 24 V DC fan assembly. Measure fan supply voltage at the connector before assuming IGBT thermal degradation.

Replacement procedure — critical steps:

• Isolate and lock out the main supply. Verify DC bus voltage is below 50 V before touching any bus bar — the capacitor bank in a 250 kW drive holds lethal charge for several minutes after isolation.
• Label and photograph all fiber-optic gate drive connections before disconnecting. The MASTERDRIVES platform uses color-coded fiber pairs; swapping TX/RX will prevent the CU from communicating with the new module and generate a persistent F-fault on startup.
• Torque the DC bus bar bolts to the specified value (typically 10–13 Nm for this frame size). Under-torqued connections cause resistive heating and intermittent F028 faults under load — a failure mode that is extremely difficult to diagnose remotely.
• After mechanical installation, perform a gate drive continuity check via the CU diagnostic menu (P-menu → hardware test) before applying DC bus voltage. This confirms the fiber-optic interface is intact without energizing the IGBT stage.
• No firmware changes are required when swapping a like-for-like 6SE7038-6EK84-1GG0. The control parameters reside in the CU board, not the output module. Your existing parameter set (P-list backup) remains valid.
• If the replacement module is from a different production batch, verify the gate drive voltage compatibility (typically 15 V / -8 V). Mismatched gate drive levels from non-OEM modules cause latent IGBT degradation that shows up as nuisance F028 trips 3–6 months after commissioning.

Reliability in Harsh Conditions

The 6SE7038-6EK84-1GG0 was not designed for a climate-controlled server room. It was built for the environments where drives actually fail — steel plant motor control centers with ambient temperatures pushing 45°C, coastal paper mills where salt-laden humid air corrodes PCB traces, and mining sites where vibration from blasting and heavy equipment shakes cabinet hardware loose over months of operation.

The IGBT modules used in this power section are rated for junction temperatures up to 150°C, with a thermal resistance (Rth j-c) that keeps the silicon well within safe operating limits even at sustained full-load output in a 40°C ambient. The gate drive PCB uses conformal coating as standard, providing protection against condensation and airborne contaminants — a detail that matters enormously in coastal and tropical installations.

Vibration resistance meets IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random) test profiles. Bus bar connections use spring-loaded or torque-critical fasteners specifically to maintain contact integrity under the mechanical shock loads common in mining and heavy press applications. The fan assembly uses sealed bearings rated for L10 life exceeding 40,000 hours at rated speed — meaning the fan will outlast the IGBT modules in most installations.

Units we ship have been stored in controlled warehouse conditions (temperature 15–25°C, humidity 40–60% RH) with anti-static packaging intact. We do not ship modules that have been stored in uncontrolled environments or show evidence of prior installation without full inspection and documentation.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateway facilities. This is not a drop-shipping arrangement. Stock is physically on our shelves, inspected, and ready to pack.

Standard export process for the 6SE7038-6EK84-1GG0:

• Order confirmed before 14:00 CST: Same-day dispatch to DHL/FedEx gateway. Tracking number issued within 4 hours of collection.
• DHL Express Worldwide: Southeast Asia 1–2 days, Europe 3–4 days, Americas 3–5 days, Middle East 2–3 days. These are real transit times, not marketing estimates.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger coverage or preferred customs clearance relationships.
• Export documentation: Commercial invoice, packing list, and certificate of origin issued as standard. CITES, EX1, or specific customs declarations prepared on request for regulated markets.
• HS Code: 8504.40 (static converters) — correctly declared to avoid customs delays. Mis-declared shipments are the single biggest cause of clearance hold-ups; we get this right every time.
• Insurance: Full declared-value cargo insurance included on all express shipments. No hidden charges.

For customers in the EU, UK, or Australia requiring import duty pre-payment (DDP terms), contact us before ordering. We can arrange DDP delivery on confirmed orders to eliminate customs clearance delays on your end.
