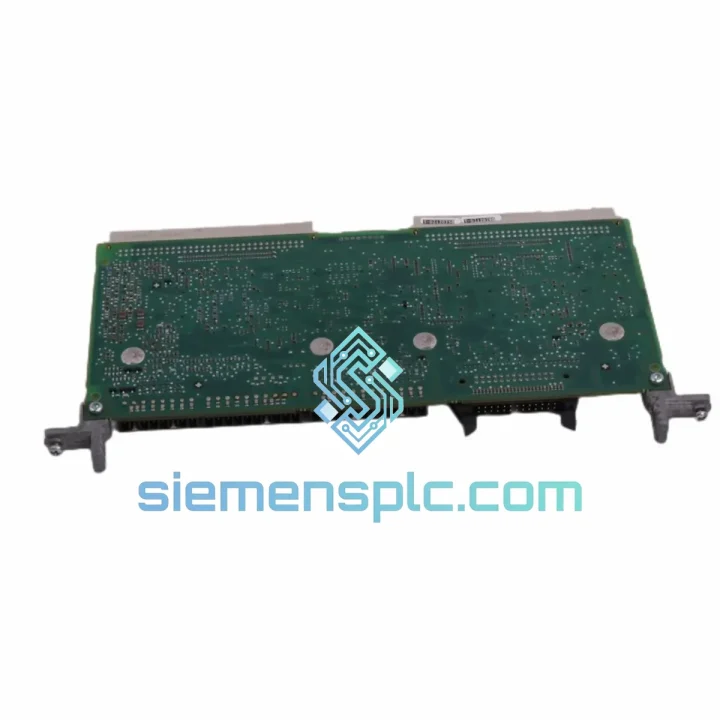

Siemens 6SE7090-0XX84-0KA0 Terminal Expansion Module

Siemens 6SE7090-0XX84-0KA0 — Stop the Bleeding: Get Your MASTERDRIVES Line Back Online Today

Your MASTERDRIVES drive is down. The terminal expansion board has failed, and right now every minute the line sits idle is money walking out the door. Whether you’re running a steel rolling mill, an automotive transfer press, or a paper machine section drive, a dead 6SE7090-0XX84-0KA0 means zero I/O, zero feedback, zero production. We stock this module in Xiamen and ship globally within 24 hours of order confirmation. No weeks-long OEM lead times. No excuses.

The 6SE7090-0XX84-0KA0 is the terminal expansion board for Siemens MASTERDRIVES 6SE70 series converters and inverters — one of the most widely deployed drive platforms in heavy industry worldwide. This board sits between the drive’s internal CU (Control Unit) and the field wiring, handling analog I/O channels, digital signal terminals, and encoder interface connections. When it fails, the drive loses its ability to read process feedback or execute control commands. The entire drive becomes a very expensive paperweight.

We’ve sourced, tested, and shipped hundreds of 6SE70 expansion boards to maintenance teams across Europe, Southeast Asia, the Middle East, and the Americas. We know what you need: a confirmed-good unit, fast, with zero ambiguity about compatibility. That’s exactly what we deliver.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How do you know the 6SE7090-0XX84-0KA0 has failed? In the field, the failure signature is usually one of three patterns:

Fault Pattern 1 — Analog Input Loss: The drive throws a process variable fault (e.g., F023 or F024 in MASTERDRIVES fault nomenclature) even though the field transmitter is confirmed healthy. You check the terminal strip — signal is present at the screw terminals but the drive reads zero or a fixed value. The expansion board’s analog input conditioning circuit has failed. Common cause: electrolytic capacitor degradation from thermal cycling over years of operation, or a transient overvoltage spike from the field wiring.

Fault Pattern 2 — Digital I/O Freeze: One or more digital inputs stop responding. The drive’s parameter monitoring (via SIMOVIS or DriveMonitor) shows the input bit stuck at 0 or 1 regardless of the actual terminal state. The optocoupler on that channel has failed. This is especially common on terminals wired to inductive loads without proper suppression diodes — the back-EMF kills the opto over time.

Fault Pattern 3 — Encoder Feedback Loss: The drive trips on F035 (speed deviation) or similar encoder-related faults immediately after startup. The encoder itself checks out fine on a separate tester. The issue is the encoder evaluation circuit on the expansion board — typically a failed line receiver IC (RS-422 differential input).

Replacement Procedure — Step by Step:

1. Power down and lock out. Isolate the drive from mains supply. Wait a minimum of 5 minutes for DC bus capacitors to discharge below 50V — verify with a calibrated meter before touching internal components. Do not skip this step.
2. Document your wiring. Photograph every terminal connection on the expansion board before disconnecting anything. The 6SE70 terminal layout is dense; a single misplaced wire on reassembly will cost you another hour of debugging.
3. Note the board slot position. The 6SE7090-0XX84-0KA0 occupies a specific slot on the CU board stack. On most 6SE70 frame sizes, it’s the slot immediately adjacent to the base CU. Confirm against your drive’s hardware manual (Siemens document A5E00…series) before removal.
4. Check DIP switch settings on the old board. Some 6SE70 expansion boards carry DIP switches that configure analog input ranges (0–10V vs. 4–20mA) or termination resistors for encoder lines. Record the switch positions before discarding the failed unit — replicate them exactly on the replacement board.
5. Firmware compatibility check. The 6SE70 CU firmware version must be compatible with the expansion board hardware revision. If your drive is running an older firmware (pre-V2.x), verify that the replacement board’s hardware revision is supported. Mismatched hardware/firmware combinations can cause the drive to fault on startup with a hardware configuration error.
6. Re-seat and power up. Insert the replacement board firmly into the slot — the edge connector must be fully engaged. Reconnect all terminals per your documentation. Power up and monitor the drive’s startup sequence via SIMOVIS or the operator panel. Confirm all I/O channels are reading correctly before releasing the line.
7. Parameter check. After replacement, navigate to the I/O configuration parameters (P600-series in MASTERDRIVES parameter set) and verify that analog scaling, digital input inversion flags, and encoder pulse counts are set correctly. These parameters are stored in the CU, not the expansion board, so they should survive the swap — but always verify.

Pro tip: If you’re in a plant with multiple 6SE70 drives, keep one 6SE7090-0XX84-0KA0 as a hot spare on the shelf. The cost of the spare is trivial compared to the cost of a single unplanned shutdown while waiting for a replacement to arrive from overseas.

Reliability in Harsh Conditions

The 6SE7090-0XX84-0KA0 was engineered for the realities of industrial drive cabinets — not a climate-controlled server room. Siemens designed the MASTERDRIVES 6SE70 platform for continuous 24/7 operation in environments that would destroy consumer-grade electronics within weeks.

Thermal endurance: The board operates across an ambient temperature range of -10°C to +55°C, with the drive’s internal cooling system managing heat dissipation from the power stack. The PCB substrate and component selection account for the thermal cycling that occurs every time the drive starts and stops — a cycle that can happen hundreds of times per day in high-throughput applications. Conformal coating on the PCB provides additional protection against condensation during cold startups.

Vibration resistance: Installed in drives mounted on machine frames, the board must withstand continuous vibration from motors, gearboxes, and mechanical loads. The edge connector design and board retention mechanism are engineered to maintain electrical contact under sustained vibration loads consistent with IEC 60068-2-6 test profiles.

EMI immunity: Drive cabinets are electrically hostile environments. The expansion board’s signal conditioning circuits include filtering and shielding designed to reject common-mode noise from the drive’s own PWM switching, as well as conducted interference from adjacent equipment. Differential signaling on encoder inputs (RS-422) provides inherent noise rejection on long cable runs.

Humidity and contamination: The board is rated for operation up to 95% relative humidity (non-condensing). In applications near cooling towers, wash-down areas, or coastal installations, the conformal coating provides a critical barrier against corrosive airborne contaminants — salt spray, cutting fluid mist, and chemical vapors that degrade unprotected PCBs over time.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international freight gateway with direct DHL and FedEx connections to hubs in Hong Kong, Shanghai, and Guangzhou. This geography is not accidental: Xiamen’s port and air cargo infrastructure allows us to reach most global destinations faster than suppliers based in inland China or Europe.

Standard express timeline (DHL / FedEx International Priority):

• Southeast Asia (Singapore, Thailand, Vietnam, Malaysia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK, Poland): 4–6 business days
• North America (USA, Canada, Mexico): 4–6 business days
• South America (Brazil, Chile, Argentina): 6–9 business days
• Australia / New Zealand: 4–5 business days

Our logistics process: Once payment is confirmed, the unit is pulled from stock, inspected, photographed, and packed in anti-static ESD shielding with foam cushioning inside a double-wall carton. Export documentation (commercial invoice, packing list, HS code declaration) is prepared same day. The shipment is handed to DHL or FedEx within 24 hours, and you receive a tracking number by email. We monitor shipments proactively and flag any customs holds or delays immediately.

For critical emergency shipments: Contact us via WhatsApp before placing the order. We can arrange same-day dispatch for orders confirmed before 14:00 CST, and we can coordinate with your freight forwarder if you have a preferred carrier or customs broker.

Import compliance: We provide accurate HS code classification and declared values to facilitate smooth customs clearance. For destinations with specific import licensing requirements for industrial electronics, contact us in advance — we’ve navigated these requirements for customers in India, Brazil, and other regulated markets.
